Charnwood W685KIT Wall Mounted Dust Extractor Hood & Hose Accessory Kit

Charnwood W685KIT Hose and Dust Hood Kit

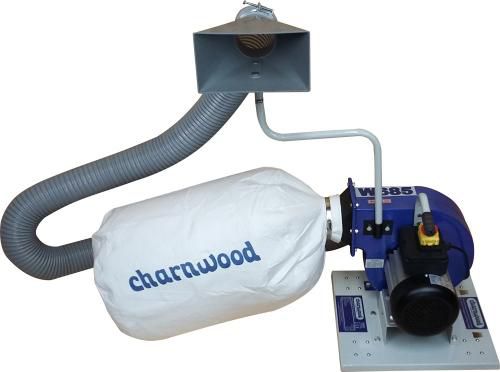

• Optional attachment for W685 Dust Extractor.

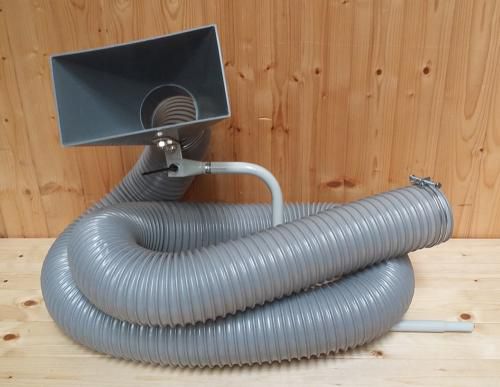

• The Kit consists of a 3m length of 100mm diameter flexible hose, a dust hood and a support arm that can be positioned in a convenient place to collect from bench top machinery, most notably a woodturning lathe.
• 2 hose clamps securely attach the hose to the extractor and the hood. The hose can also be used with out the hood to connect to any woodworking machine with a 100mm diameter dust outlet.
• When fitted to the support arm the centre of the hood is at a height of 920mm.

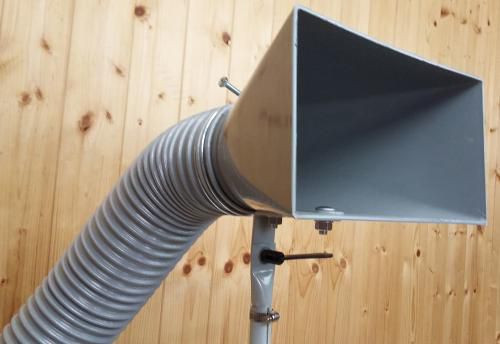

• Dust Hood opening size 240mm x 120mm.

Please note: This product is the hose and dust hood kit ONLY, dust extractor not included.
