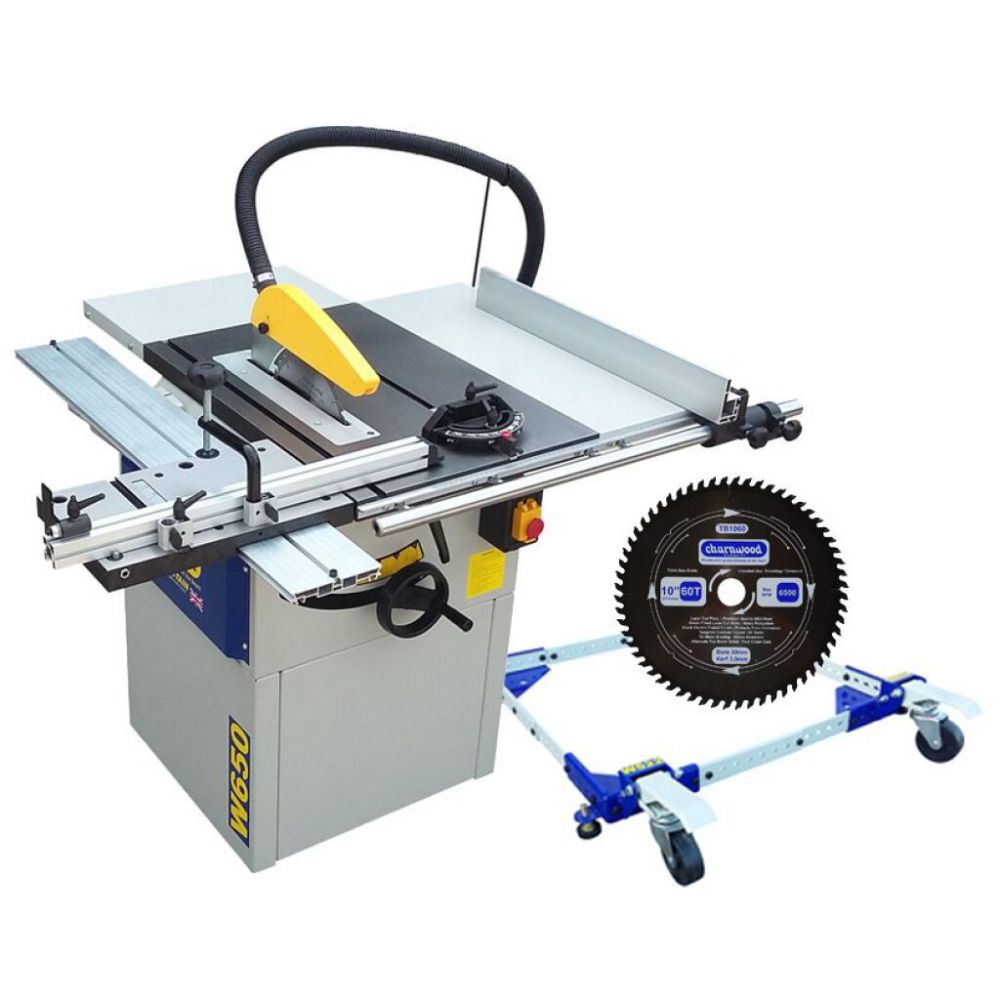

Charnwood W650 10" Cast Iron Table Saw Package with Mobile Base and Blade

X
Product Code: CH/W650-PK1
Brand: Charnwood
Stock Available
Delivery typically 3-4 days
£1,368.00 Inc. VAT
£1,140.00 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Charnwood

Charnwood W650 - 10" Cast Iron Table Saw with Cast Iron Sliding Table



Key Features

  • Quiet Induction Motor
  • Cast Iron Precision Ground Table
  • Extension Tables as Standard Equipment
  • Finely Adjustable Rip Fence
  • Sliding Carriage as Standard Equipment
  • Separate Handwheels for Blade Adjustment
  • 100mm Dust Extraction Outlet
  • Optional Wheel Kit



Strengths and benefits

  • The main table is precision ground cast iron to give a flat surface that will last forever. The surface area is further increased with the addition of 2 steel extension tables offering greater support when working with larger panels and boards.

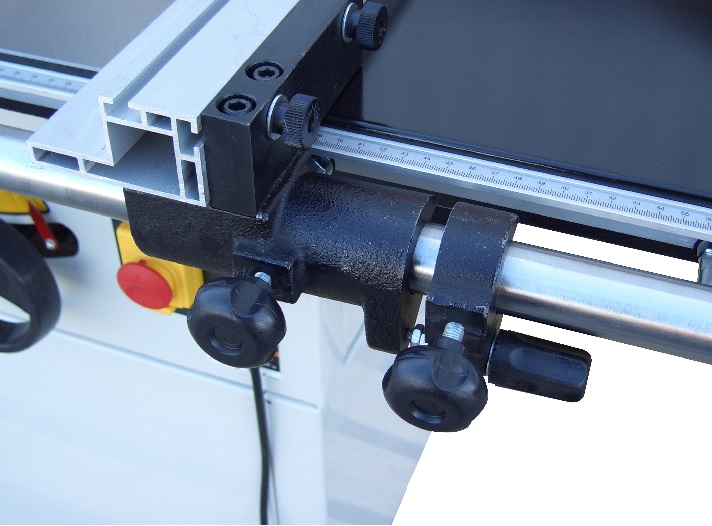

  • The guide fence for ripping operations slides smoothly along a solid steel bar with a measuring scale marked out in millimetres. The fence itself can be used in two positions, the second position allows for very thin cuts to be made in thin materials without obstructing the blade guard. A great feature of the fence system is the addition of a micro adjuster which allows accurate small adjustments to be made when setting the position of the fence.

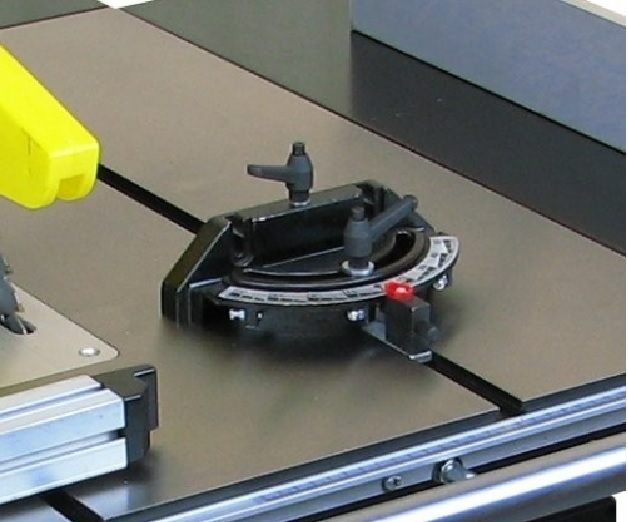

  • The sliding mitre fence is adjustable to 60 degrees in each direction. It has preset stops to locate it accurately at 45 degrees and 90 degrees. A sacrificial fence can be easily mounted using the fixing holes provided.

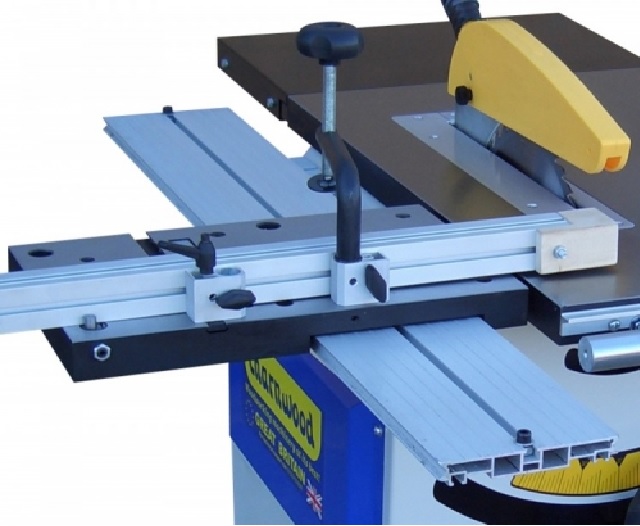

  • On the left hand side of the saw is the sliding crosscut carriage. The table is again made from cast iron and precision ground for a durable flat surface. The table runs on four sealed for life bearings along an aluminium guide track. The fence itself can be locked at any angle from 90 to 45 degrees, and there is a positive stop to ensure the fence returns back to the 90 degree position. A work clamp ensures timber stays locked in position during the cut. A flip-over length stop for accurate repeat cutting completes the carriage assembly.
  • The power is generated from a 2200w (3 hp) induction motor which gives a low noise level and will run from any standard 13amp, 240v power supply.
  • Setting the sawblade angle and height is done using two separate hand wheels. A large easy to read scale on the front face of the machine allows accurate bevel angles to be set.

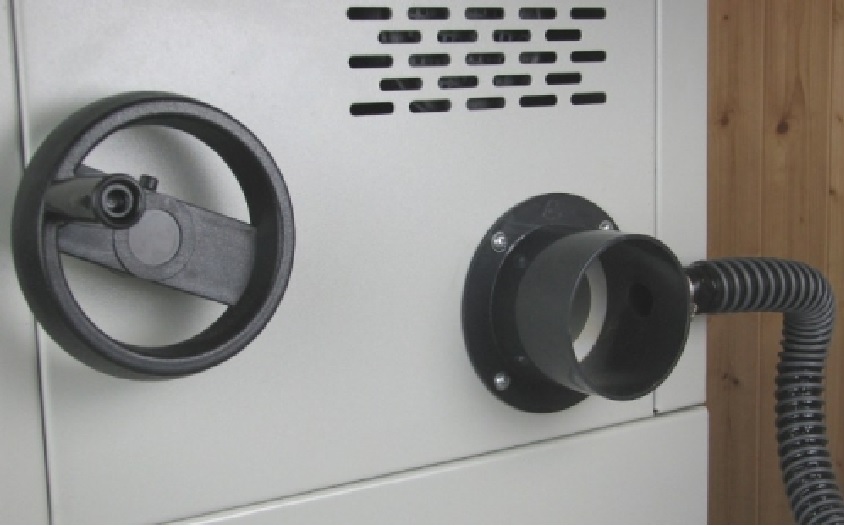

  • Efficient dust extraction is included as standard. Dust is collected from the back of the saw guard and a hose transfers it to the rear of the machine. Underneath the table is a hood which collects more dust and tranfers it to the same collection point. A single extractor hose connection point of 100mm diameter is provided at the rear of the machine.
  • The table saw is supplied with four adjustable feet for levelling on an uneven surface. For anybody needing to move the saw around the workshop our universal wheel base, W522 is the ideal companion.
  • Supplied with 36 tooth TCT sawblade, push stick, rip fence, mitre guide, cable and plug.



Specification

  • Main Table Size: 750mm x 1000mm
  • Maximum Ripping Width Using Fence: 605mm
  • Crosscut Table Size: 400mm x 180mm
  • Maximum Crosscutting Width: 550mm (700mm Using Reverse Table)
  • Blade Tilt: 90 - 45 degrees
  • Cutting Depth at 90 degrees: 75mm
  • Cutting Depth at 45 degrees: 45mm
  • Blade Diameter: 254mm
  • Blade Bore: 30mm
  • Work Table Height: 830mm
  • Motor (induction): 2200w (3 hp) 240v
  • No-load Blade Speed: 4000rpm
  • Dimensions (WxDxH): 1440mm x 1070mm x 1120mm
  • Weight: 125Kg
  • Db (Without Load/With Load): 81Db/89.5Db
  • Rating: Trade
  • Warranty: 5 Years



Charnwood W650 Owners Manual

Charnwood Machinery 5 Year Guarantee




Charnwood W522 - Universal Wheel Base



Strengths and benefits

  • Constantly having to push one machine to the back of the workshop to make space to bring another one forward ?

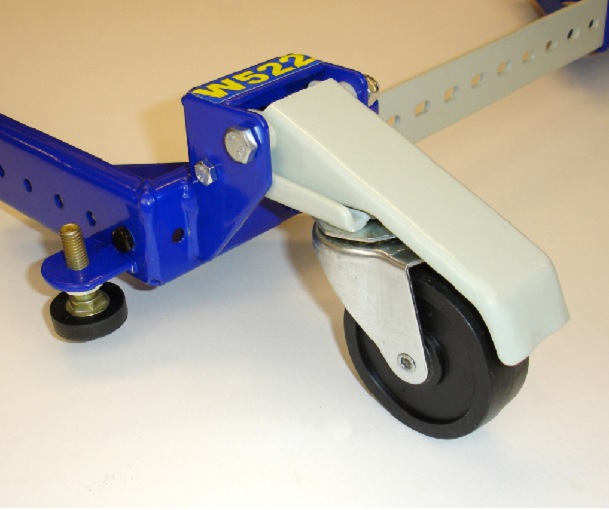

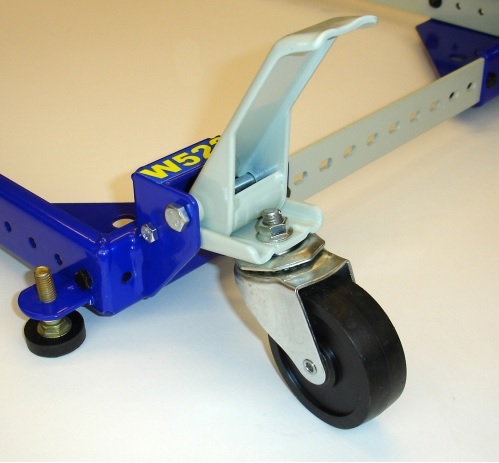

  • Convert your machines into portable units by adding this highly adaptable wheel base. There are two fixed wheels and two steering wheels allowing excellent manoeuvring across a relatively flat floor surface. Step on the two foot plates to lower the wheels for moving the machine, then raise the two foot plates to lower the base back onto the adjustable rubber feet.

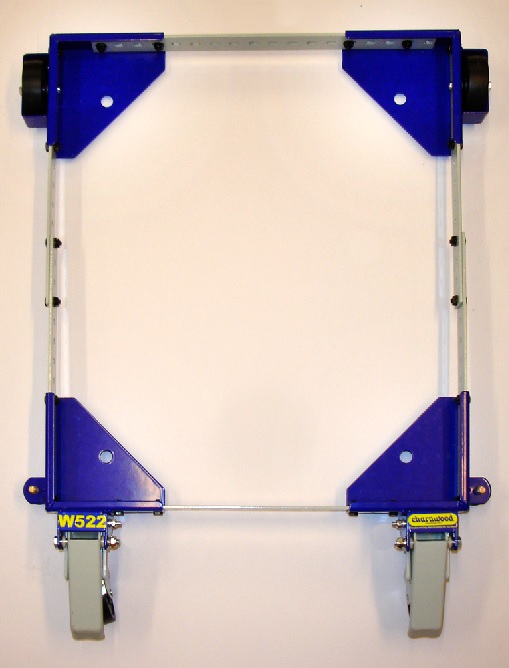

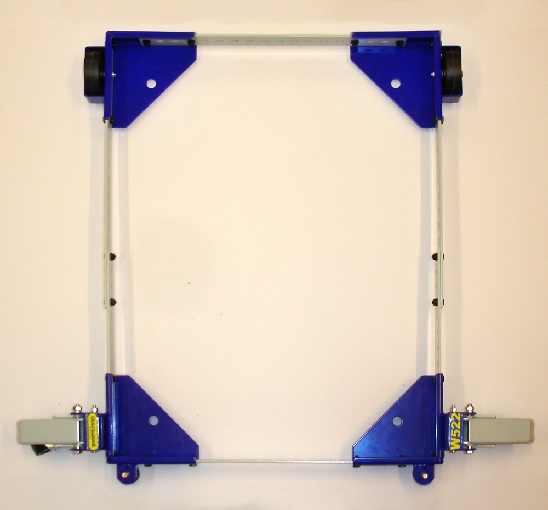

  • The base can be assembled either as a square shape or a rectangle shape to suit the footprint of the machine being mounted.
  • It can be used with a huge variety of machines including Planer Thicknessers, Table Saws, Bandsaws, Spindle Moulders and Lathes.



Suitable for use with

  • W014 Router Table
  • W020 Router Table
  • W570 Thicknesser on the optional floorstand
  • W575 Thicknesser on the optional floorstand
  • W583 10" x 7" Planer Thicknesser
  • W590 12" Planer Thicknesser
  • W614 10" Table Saw
  • W616 10" Table Saw
  • W618 8" Table Saw
  • W619 8" Table Saw
  • W629 10" Table Saw
  • W650 10" Table Saw
  • W812 Wood Lathe
  • W813 Wood Lathe
  • W326 Morticer
  • W335 Morticer on optional floorstand
  • W340 1" Morticer on optional floorstand
  • W350 1" Morticer
  • B250 10" Bandsaw
  • W720 12" Bandsaw
  • W721 12" Bandsaw
  • B300 12" Bandsaw
  • W730 14" Bandsaw
  • B350 14" Bandsaw
  • W030 Spindle Moulder
  • W040 Spindle Moulder



Specification

  • Minimum square size 340mm x 340mm
  • Maximum square size 930mm x 930mm
  • Maximum rectangle size 520mm x 1340mm
  • Maximum weight load 295kg
  • Rating Light trade
  • Warranty 1 Year



Charnwood W522 Owners Manual




Charnwood TCT Table Saw blade 250mm x 30mm x 60T - TB1060



Can be used with the following Charnwood table saws: W614, W616, W629, W650, W660



Key Features

Tungsten Carbide Tipped (TCT) circular saw blade for table saws and bench saws. High quality precision blade for professional users packed with the latest technology.

  • Laser Cut Plate - Premium Quality SK5 Steel
  • Resin Filled Laser Cut Slots - Noise Reduction
  • Black Electro Plated Finish - Protects from Corrosion
  • Tungsten Carbide Tipped - 60 Teeth
  • Tri-Metal Brazing - Shock resistant
  • Alternative Top Bevel Grind - Fast Clean Cuts

The plate of the blade is manufactured using a premium grade of steel known as SK5. The plate is cut out by laser to ensure precision and accurate bore size.

The laser also cuts slots which allow the blade to expand during heat build up, keeping the blade true. The slots are then filled with a resin which reduces the noise level of the blade during a cut by up to 30%.

The blade is finished with a distinctive black electroplated coating. It prevents corrosion and makes it very easy to clean off any build up of resin and pitch.

Although you can cut any type of wood with any blade, for optimal performance, choose a number of teeth which best suits the majority of sawing you want to do.

TB1060 Trimming / Crosscut: Fine Finish, suitable for crosscutting in softwood, hardwood and exotic timber. Suitable for ripping and crosscutting in boards veneered on both sides, plywood, chipboard laminated on one side, MDF, particle board, hardboard and veneers.



Specification
  • Diameter: 250mm ( 10'')
  • Bore: 30mm
  • Kerf (Carbide Tooth Width): 3.0mm
  • Plate Thickness: 2.0mm
  • No. of TCT Teeth: 60
  • Tooth Pattern: ATB
  • Max. RPM: 6500
  • Intended Use: Trimming / Crosscut
  • Rating: Trade
  • Can be used with the following Charnwood table saws: W614, W616, W629, W650, W660
  • NOT SUITABLE FOR RADIAL ARM OR MITRE SAWS.
Product Videos
Items Included
Click For Bigger Image
1 X Charnwood W522 Universal Wheel Base
Click For Bigger Image
1 X Charnwood TCT Circular Table Saw blade 250mm x 30mm x 60T
Click For Bigger Image
1 X Charnwood W650 10'' Cast Iron Table Saw
