Charnwood W619 8'' Cast Iron Table Saw

X
Product Code: CH/W619
Brand: Charnwood
In Stock
Was £949.00 Inc. VAT
Now £799.37!
£666.14 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Charnwood

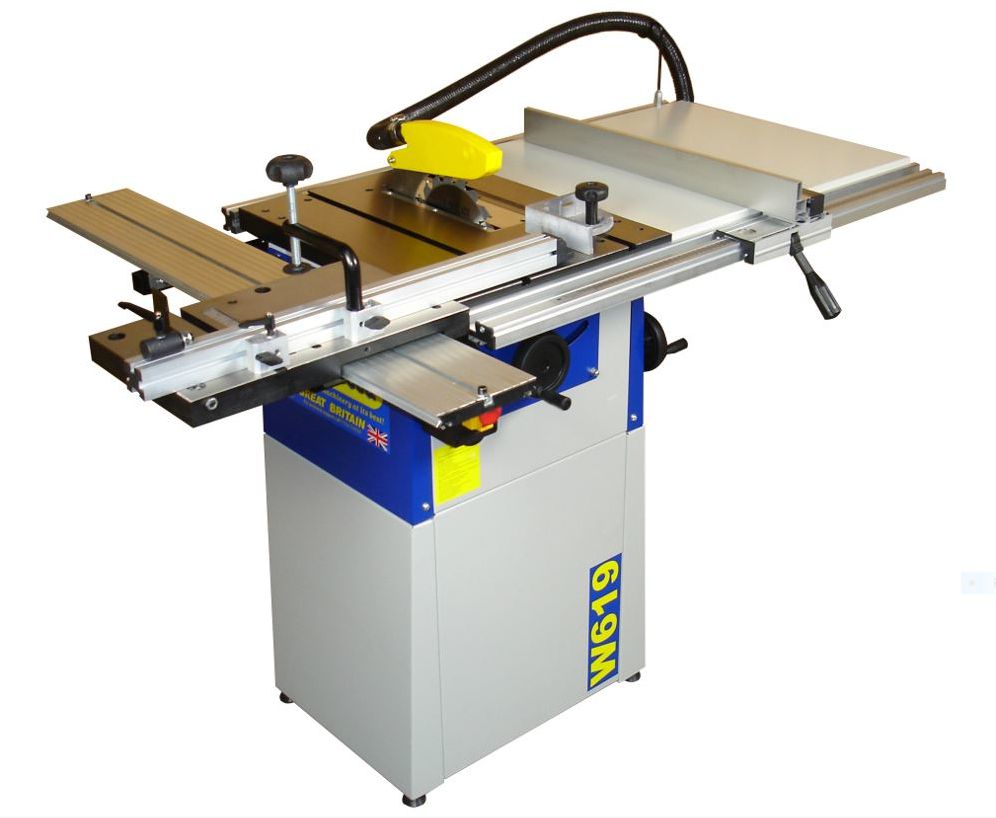

Charnwood W619 - 8" Table Saw with Cast Iron Sliding Table



Strengths and benefits

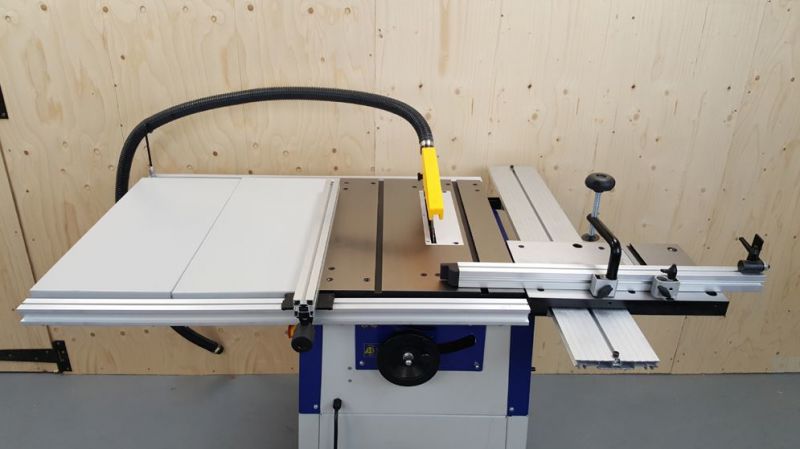

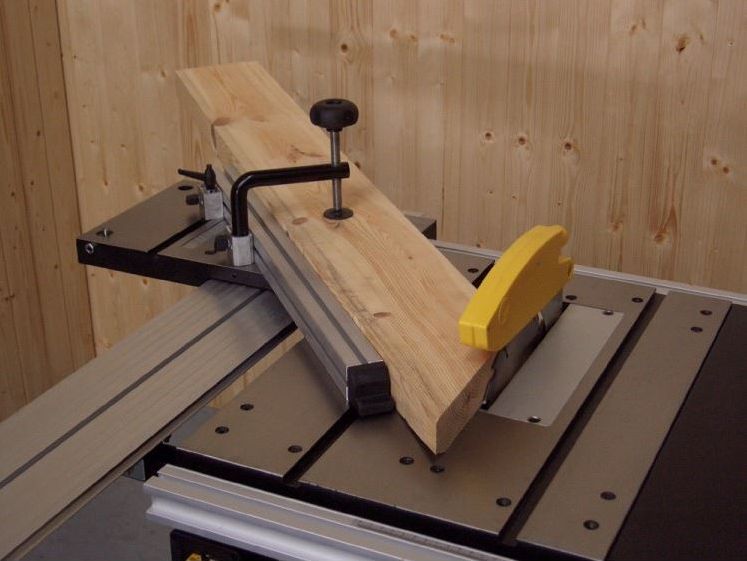

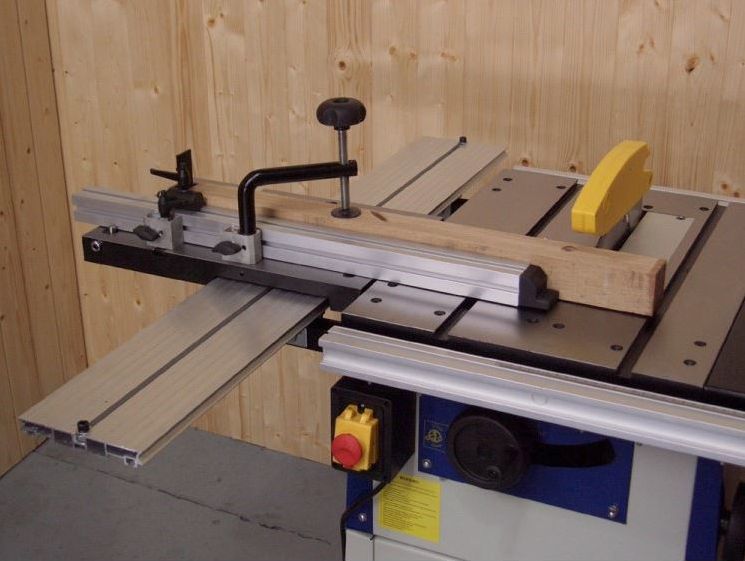

  • A compact, high quality table saw with a quiet induction motor. The main table is precision ground cast iron, and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy. Blade height and blade angle are controlled using 2 separate handwheels. The sliding carriage, included as standard, is a joy to use with a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip over length stop is fitted for repeat cuts.
  • Supplied with 20 tooth TCT sawblade, sliding carriage, extension tables, floorstand, adjustable feet, cable and plug.
  • For storage the right hand extension and sliding carriage can be removed in less than a minute and rebuilt in 2 1/2 minutes with no setting up required.



Key Features

  • Quiet Induction Motor

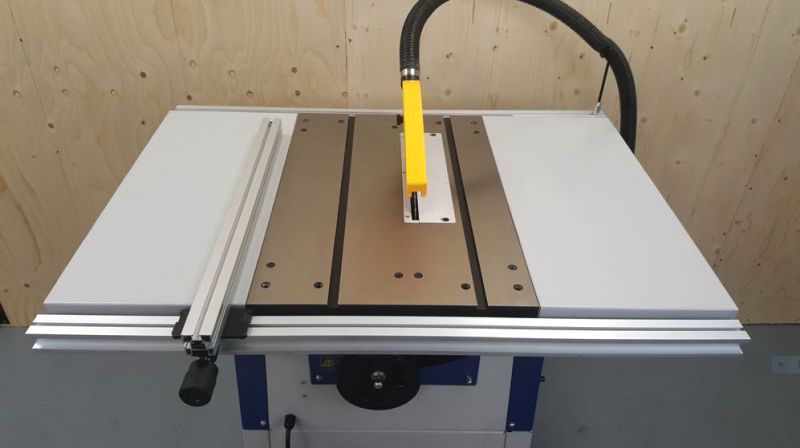

  • Cast Iron Precision Ground Table
  • Extension Tables as Standard Equipment
  • Sliding Carriage as Standard Equipment
  • Separate Handwheels for Blade Adjustment

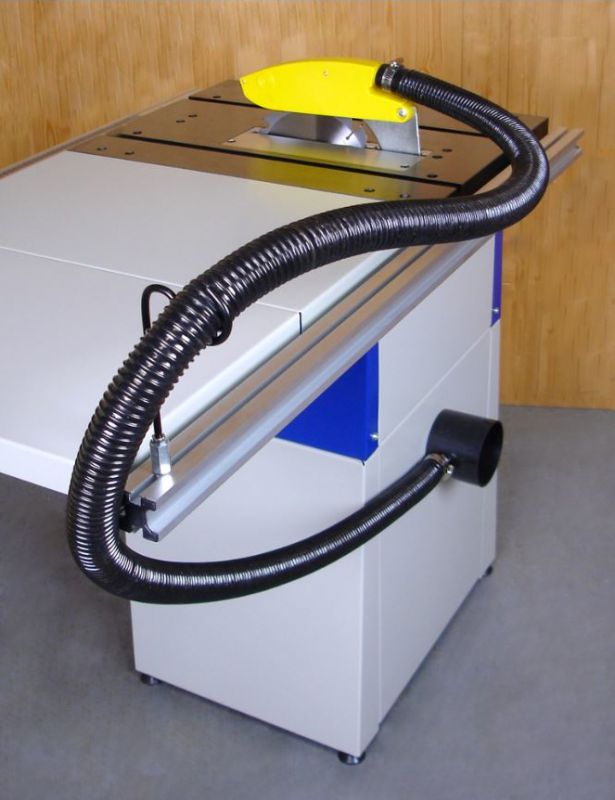

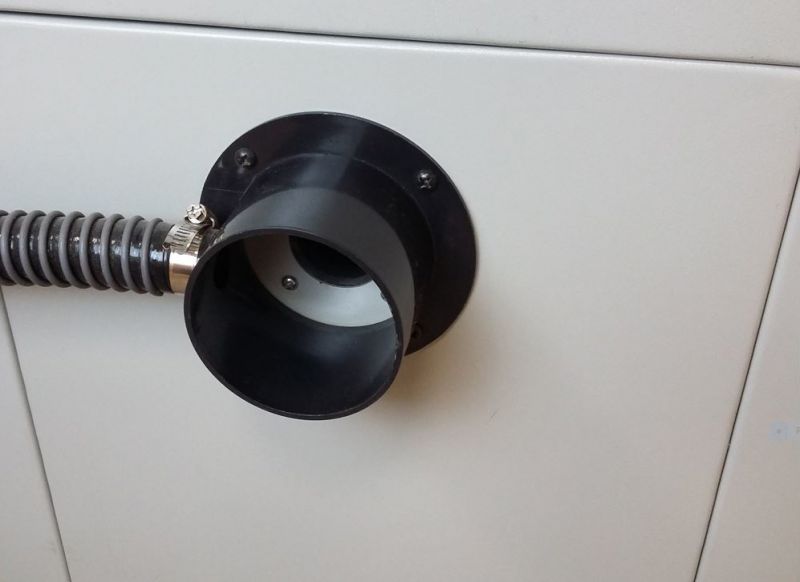

  • 100mm Dust Extraction Outlet
  • Solid Floorstand Base Included
  • Optional Wheel Kit (not included)



Specification

  • Main Table Size: 530mm x 1000mm

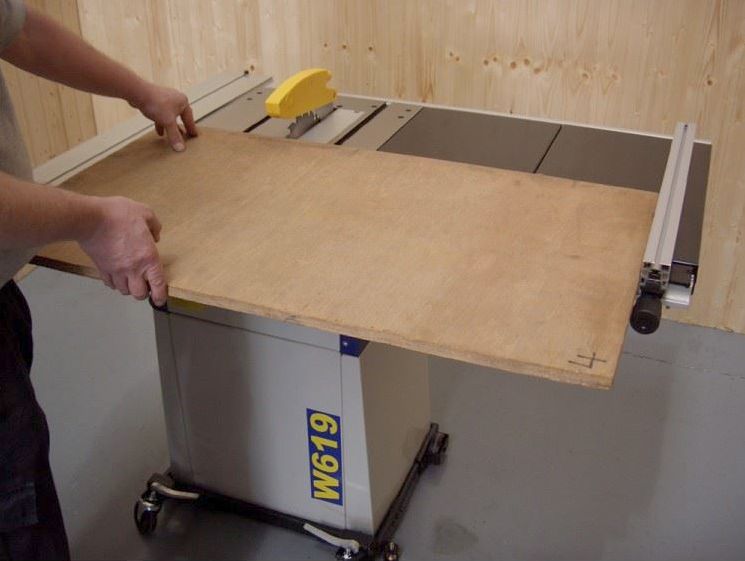

  • Maximum Ripping Width Using Fence: 720mm
  • Crosscut Table Size: 400mm x 180mm
  • Maximum Crosscutting Width: 600mm (700mm Using Reverse Table)
  • Blade Tilt: 90 - 45 degrees
  • Cutting Depth at 90 degrees: 60mm
  • Cutting Depth at 45 degrees: 40mm
  • Blade Diameter: 200mm
  • Blade Bore: 30mm
  • Work Table Height: 910mm
  • Motor (induction): 1100w (1.5hp) / 240v
  • No-Load Blade Speed: 4700 rpm
  • Dimensions: (WxDxH) 1460mm x 1010mm x 1030mm
  • Weight: 90Kg
  • Rating: Light Trade
  • Warranty: 5 Years
It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips.
