Charnwood W030P Spindle Moulder Package Deal 1

X
Product Code: CH/W030P-PK1
Brand: Charnwood
In Stock
4 left in stock
Was £1,208.00 Inc. VAT
Now £999.00!
£832.50 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Charnwood

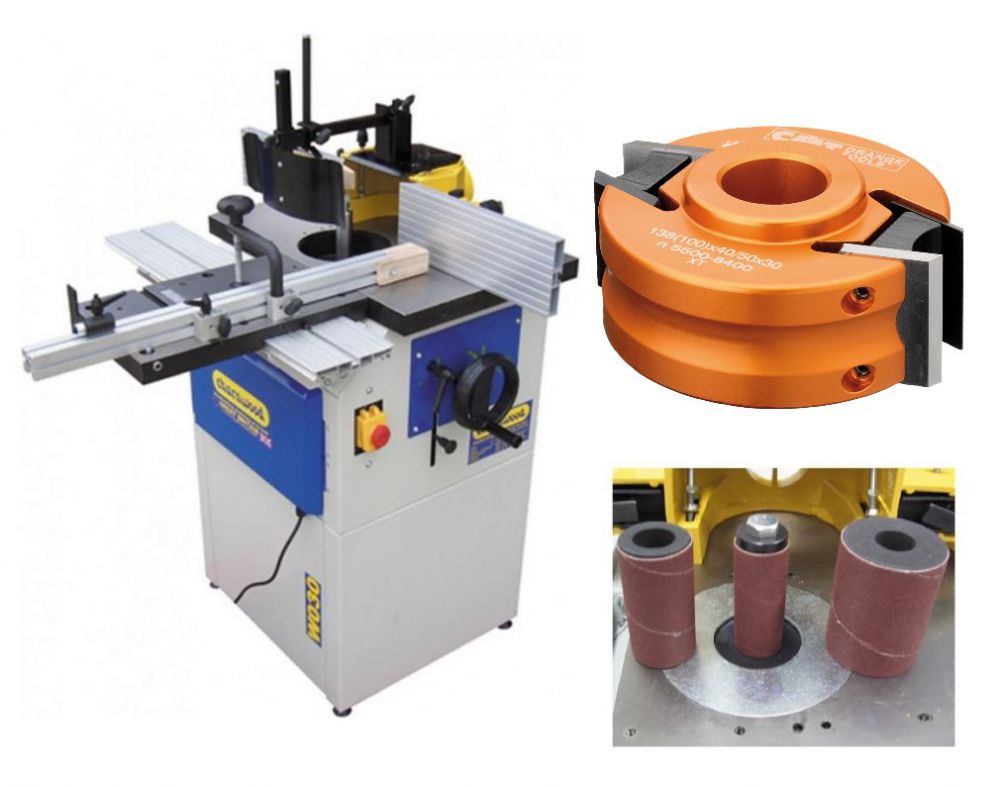

 Charnwood W030P - Spindle Moulder Package Deal 1



Key Features

  • Cast Iron Main Table
  • Cast Iron Tenonning Table
  • Cast Iron Cutter Hood
  • 4 Speeds; Softwood, Hardwood, Routing, Sanding
  • Maximum Tooling Diameter 160mm
  • Independently Adjustable Fences
  • 100mm Diameter Extraction Outlet



Items included

  • W030 Spindle Moulder with Sliding carriage
  • W030RC 1/2'' Routing Collet
  • CB9830 Cutterblock with Straight Knives & 6 Profiles
  • W030SD Sanding Drum Kit with 3 Sizes of Drum



Strengths and benefits

For most people purchasing our W030 Spindle Moulder, it will be the first moulder they have owned and therefore they will also require some tooling. Although there is a vast range of tooling available in the market, we have packaged a cutterblock and some of the most popular cutters together with the routing collet and drum sanding kit to give a great value package.

Fitting neatly into the gap between the heaviest router table and an industrial sized spindle moulder this machine is ideally suited to small professional workshops.
A precision ground cast iron table, a steel base cabinet and a 2hp induction motor are the basic ingredients which make up this fantastic recently upgraded spindle moulder. The height of the spindle, which is a standard 30mm diameter, is controlled by the large hand wheel which can then be locked in position.

A simple belt change selects the correct spindle speed for the tooling. The new 4 speed version provides even more versatility;

  • 1500rpm - Drum Sanding
  • 4500rpm - Moulding Hardwoods
  • 6500rpm - Moulding Softwoods
  • 8500rpm - Routing

The cutter hood is cast iron with a dust outlet at the centre providing efficient extraction for this machine which can produce a high volume of dust and chips. An extractor with 1000 cubic metres an hour airflow is recommended to cope.


The two aluminium fences are adjustable to set the width of the opening, to suit the cutters being used. The outfeed fence can also be stepped out, controlled by a fine pitch thread adjuster, for operations where the complete edge of the workpiece is being removed. Fully adjustable guards are connected to a hinged plate which can quickly be lifted to allow clear access to change the tooling.


The sliding carriage consists of a cast iron table with four bearing guides running along an aluminium extrusion. The fence angle can be set accurately between 90 and 45 degrees with a useful stop to quickly return to 90 degrees again. A hold down clamp and a length stop complete the equipment.

Supplied with sliding carriage, Set of spindle shims, 4 adjustable height rubber feet, cable and plug.



Specification

  • Motor (induction): 1500w, 240v
  • Main table size: 600mm x 400mm
  • Sliding table size: 400mm x 180mm
  • Spindle diameter: 30mm
  • Speeds: 4 (1500, 4500, 6500 & 8500rpm)
  • Vertical stroke: 110mm
  • Table aperture diameter: 160mm
  • Table aperture depth: 50mm
  • Table height: 870mm
  • Fence size: 125mm x 700mm
  • Dust extraction outlet: 100mm
  • Dimensions (WxDxH): 830mm x 1070mm x 1280mm
  • Weight: 95kg
  • Rating: Light trade
  • Warranty: 5 Years



Charnwood Machinery Five Year Guarantee

Product Videos
Items Included
Click For Bigger Image
1 X Charnwood W030 Spindle Moulder with Sliding Carriage
Click For Bigger Image
1 X Charnwood W030SD Sanding Drum Kit
Click For Bigger Image
1 X Charnwood Spindle Moulder Cutterblock Set - CB9830
