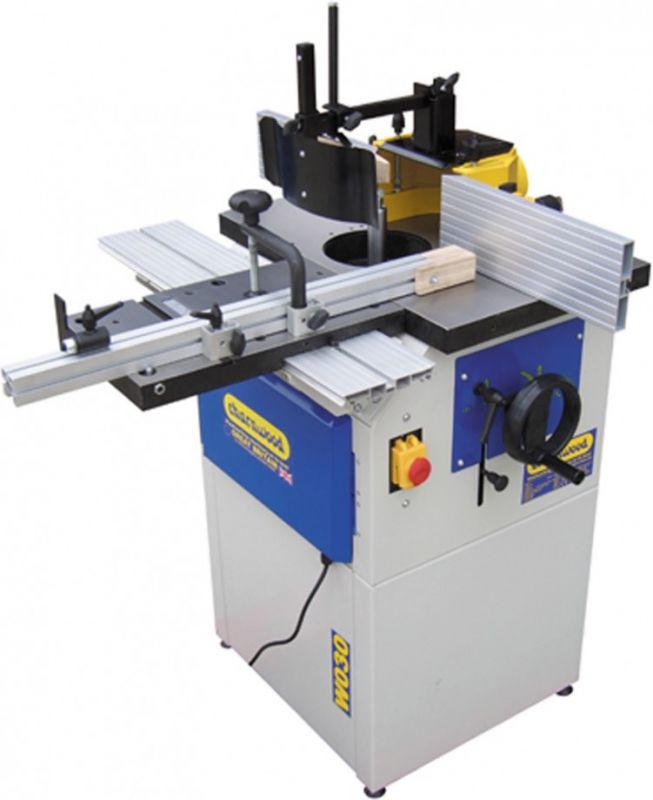

Charnwood W030 Spindle Moulder with Sliding Carriage

Charnwood W030 Spindle Moulder with Sliding Carriage

• Cast Iron Main Table
• Cast Iron Tenonning Table
• Cast Iron Cutter Hood
• 4 Speeds; Softwood, Hardwood, Routing, Sanding
• Maximum Tooling Diameter 160mm
• Independently Adjustable Fences
• 100mm Diameter Extraction Outlet

• Fitting neatly into the gap between the heaviest router table and an industrial sized spindle moulder this machine is ideally suited to small professional workshops.
• A precision ground cast iron table, a steel base cabinet and a 2hp induction motor are the basic ingredients which make up this fantastic recently upgraded spindle moulder. The height of the spindle, which is a standard 30mm diameter, is controlled by the large hand wheel which can then be locked in position.
• A simple belt change selects the correct spindle speed for the tooling. The new 4 speed version provides even more versatility;
  • 1500rpm - Drum Sanding *
  • 4500rpm - Moulding Hardwoods
  • 6500rpm - Moulding Softwoods
  • 8500rpm - Routing **
• The cutter hood is cast iron with a dust outlet at the centre providing efficient extraction for this machine which can produce a high volume of dust and chips. An extractor with 1000 cubic metres an hour airflow is recommended to cope.
• The two aluminium fences are adjustable to set the width of the opening, to suit the cutters being used. The outfeed fence can also be stepped out, controlled by a fine pitch thread adjuster, for operations where the complete edge of the workpiece is being removed. Fully adjustable guards are connected to a hinged plate which can quickly be lifted to allow clear access to change the tooling.
• The sliding carriage consists of a cast iron table with four bearing guides running along an aluminium extrusion. The fence angle can be set accurately between 90 and 45 degrees with a useful stop to quickly return to 90 degrees again. A hold down clamp and a length stop complete the equipment.


• sliding carriage
• Set of spindle shims
• 4 adjustable height rubber feet
• cable and plug (Runs off any standard 13amp, 240v electric supply)

• Motor (induction): 1500w, 240v
• Main table size: 600mm x 400mm
• Sliding table size: 400mm x 180mm
• Spindle diameter: 30mm
• Speeds: 4 (1500, 4500, 6500 & 8500rpm)
• Vertical stroke: 110mm
• Table aperture diameter: 160mm
• Table aperture depth: 50mm
• Table height: 870mm
• Fence size: 125mm x 700mm
• Dust extraction outlet: 100mm
• Dimensions (WxDxH): 830mm x 1070mm x 1280mm
• Weight: 95kg
• Rating: Light trade
• Warranty: 5 Years
