Charnwood V3EDJ Extended Dovetail Jaws - Pen Jaws - for Viper3 Chuck

Charnwood V3EDJ - Extended Dovetail Jaws square hole inside for VIPER3 Chuck

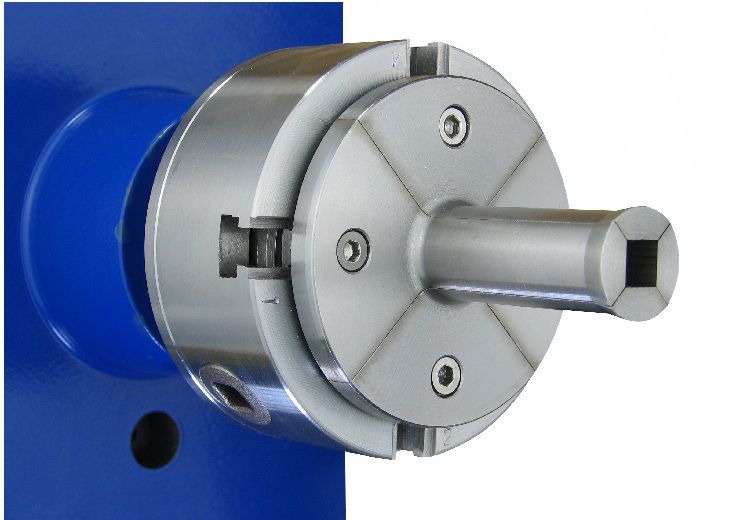

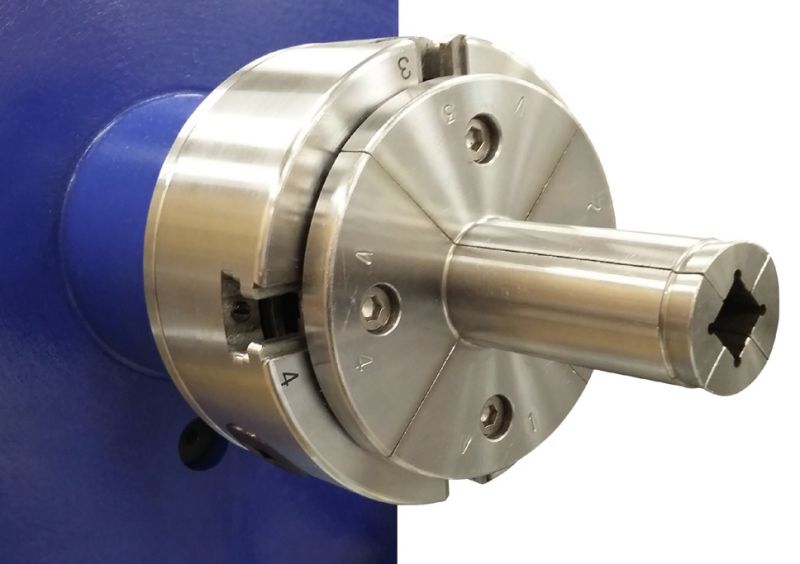

Chuck shown for illustration only and is not included

Extended Dovetail Jaws, square hole inside for Viper3 Chuck.

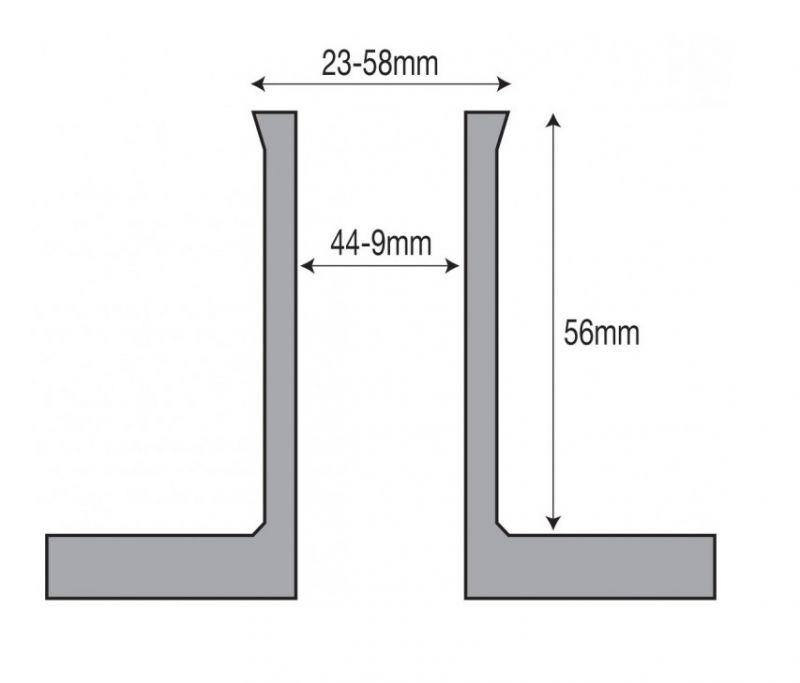

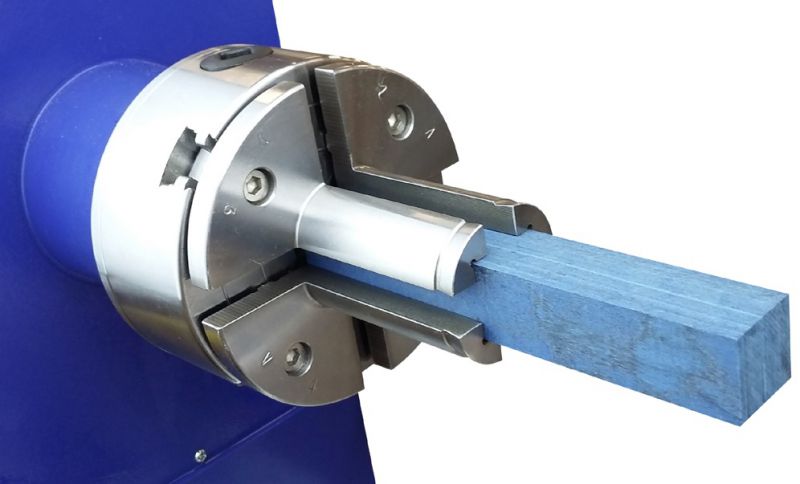

Set of 4 optional jaws for our Viper3 scroll chuck. These extended pin jaws are dovetailed on the outside. The internal edge is flat, forming a square when closed, perfect for gripping square shaped spigots. The jaws project 56mm from the base plate.

• Expands from 23mm to 58mm
• Contracts from 44mm to 9mm

 Jaws for the Viper3 are compatible with the following chucks:

• Charnwood W836 (Requires V3JS jaw screw set)
• Vicmark VM100 (Requires V3JS jaw screw set)
• Record RP4000
• Rutlands Dakota XT700
• Warco 9405
• Craft Supplies CS400
• Fox FX4000
• Versachuck (Requires VM100 Jaw Carriers)
• Does not fit Axminster
