Charnwood V2FJ5 Bowl Reversing Jaws 5" Diameter for Viper2 Chuck

Charnwood V2FJ5
Bowl Reversing Jaws
5" Diameter for Viper2 Chuck

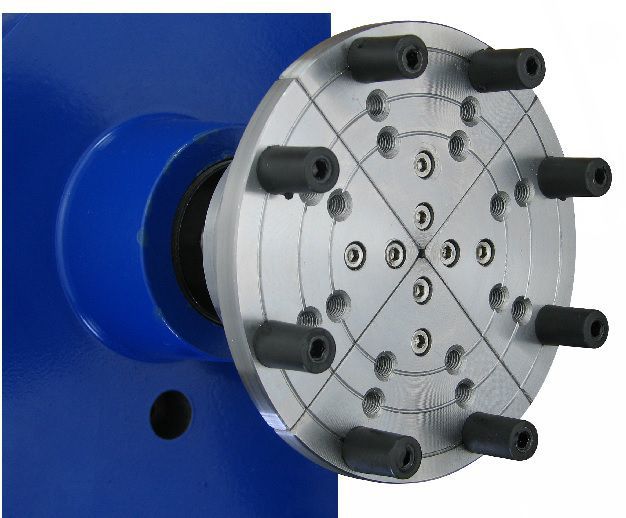

Bowl Reversing Jaws 5" Diameter for Viper2 Chuck.

Bowl reversing jaws, also known as Cole jaws or Flat jaws are most commonly used for remounting finished bowls to re-shape the outside or to remove unwanted spigots, recesses or jaw marks.

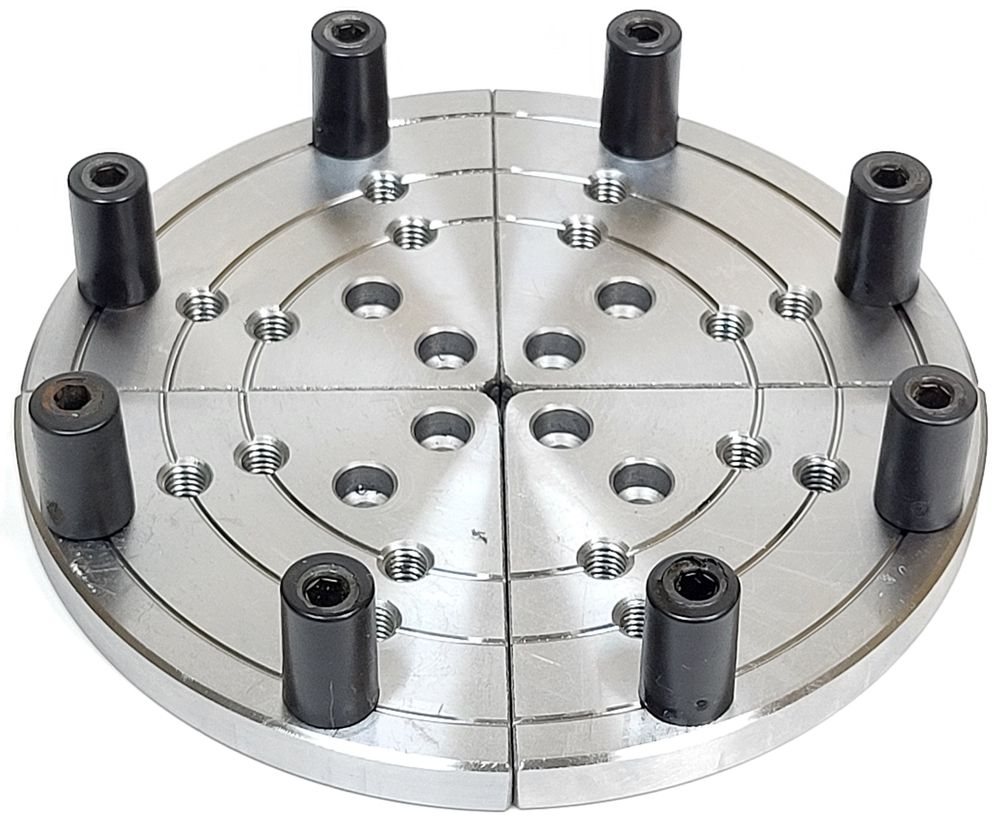

The jaws are 120mm diameter when closed, 144mm diameter when opened. the work piece is held in place by 8 rubber coated fixings which can be fitted in 3 different positions on the jaws depending on the diameter required.

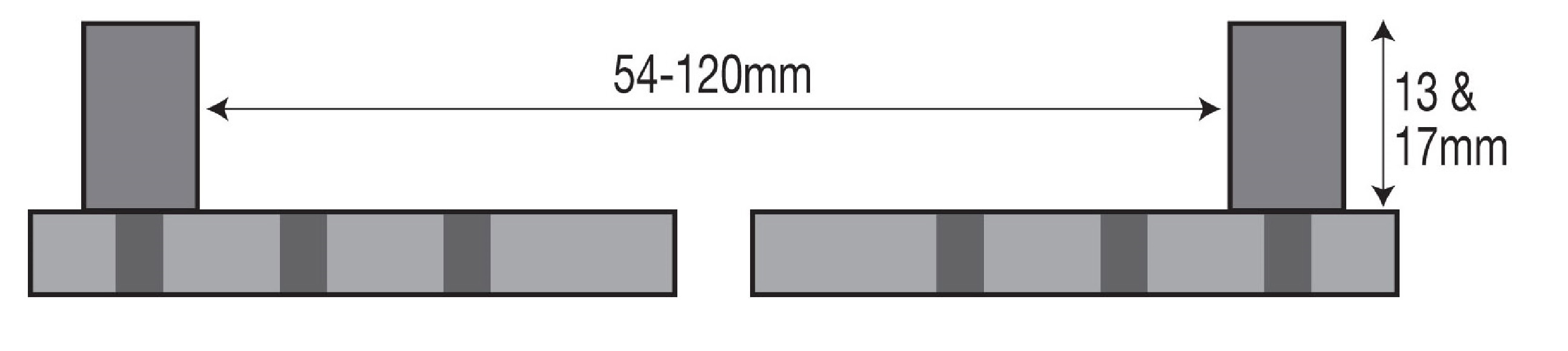

• For bowl diameters from 54mm up to 120mm.
• Please note max. rpm 600.

Supplied with 2 sets of rubber coated fixings;

• 8 x 10mm diameter x 17mm long
• 8 x 10mm diameter x 13mm long
