Charnwood MAGCUFF1 100mm Flexible Cuff For Magnetic Hose Connector

Charnwood MAGCUFF1 100mm Flexible Cuff For Magnetic Hose Connector

• Tidy up your workshop using our magnetic attachment system for dust extractors.
• The rubber cuff is designed to fit snugly over any 100mm outlet or inlet. Being made of flexible material it will cope with slight sizing variations seen between different manufacturers.

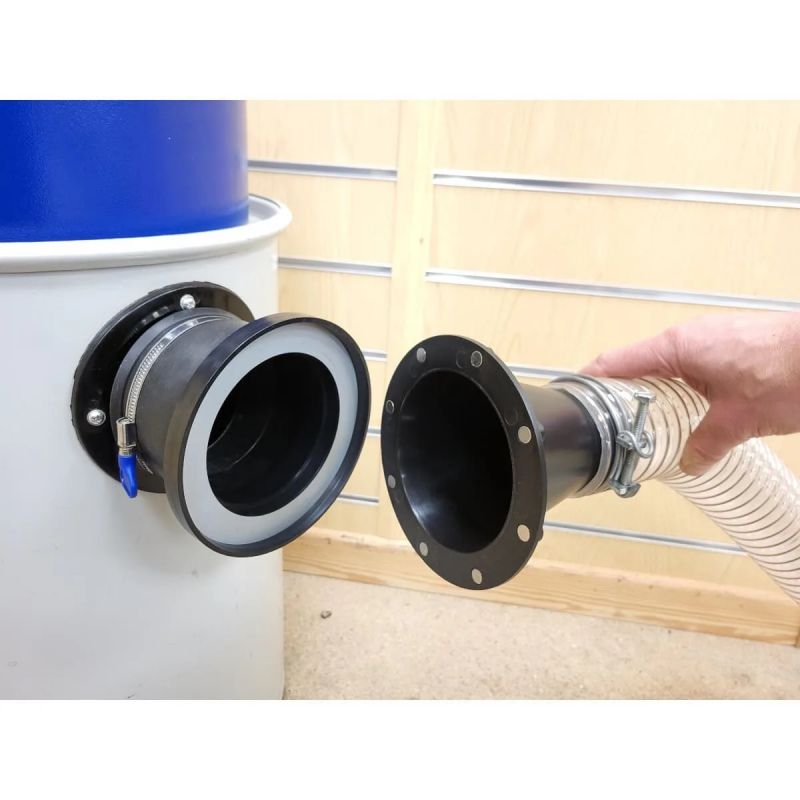

• It can be fitted over the inlet on any extractor with a nominal 100mm (4") diameter.

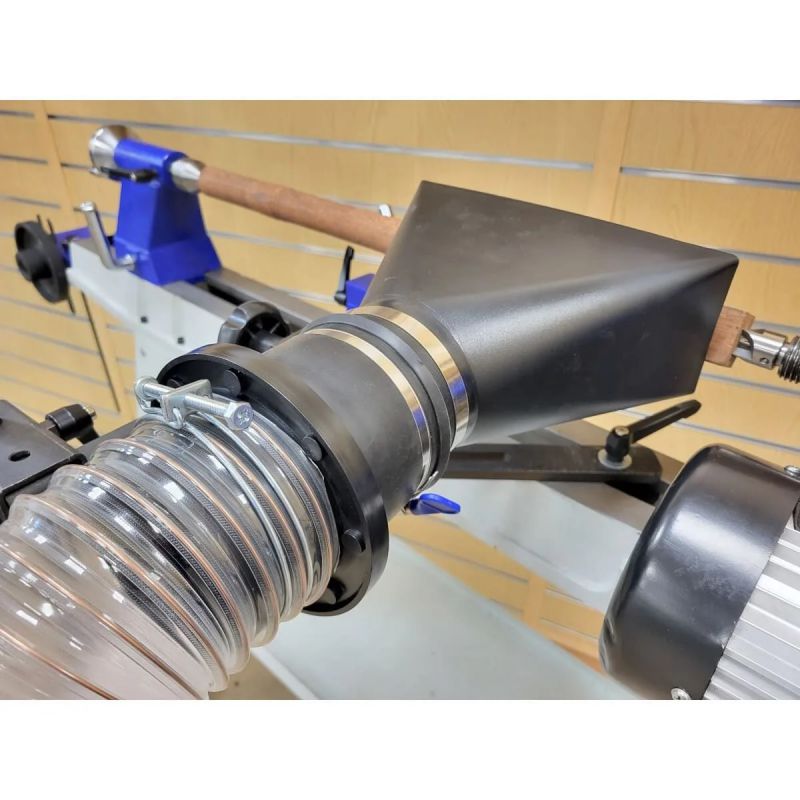

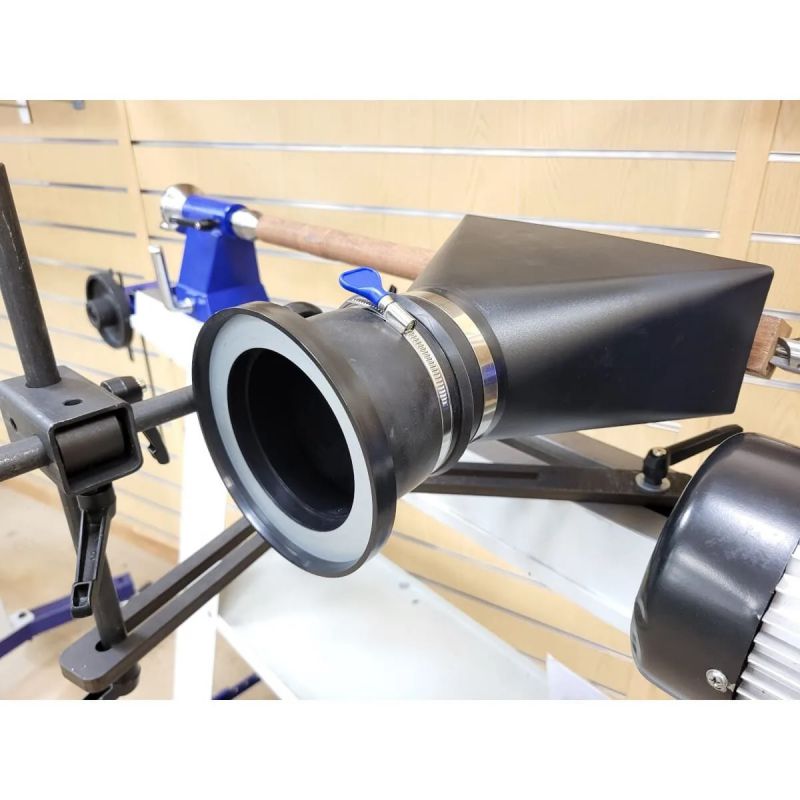

• It can be fitted over the outlet of any woodworking machinery with a nominal 100mm (4") diameter.

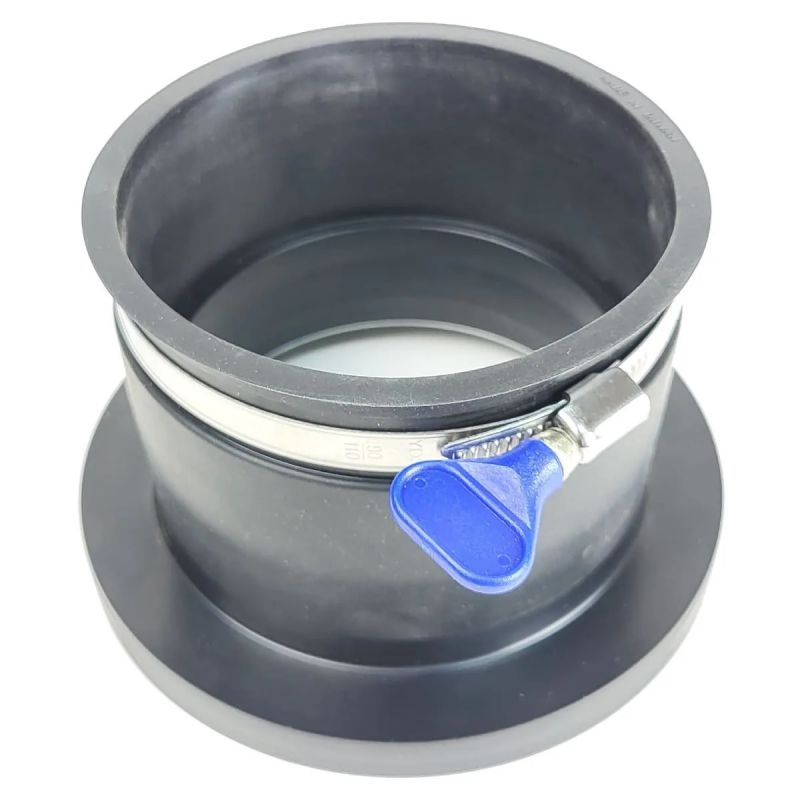

• A metal hose clamp sits in a recess and can be tightened using the butterfly thumb screw (no tools required).

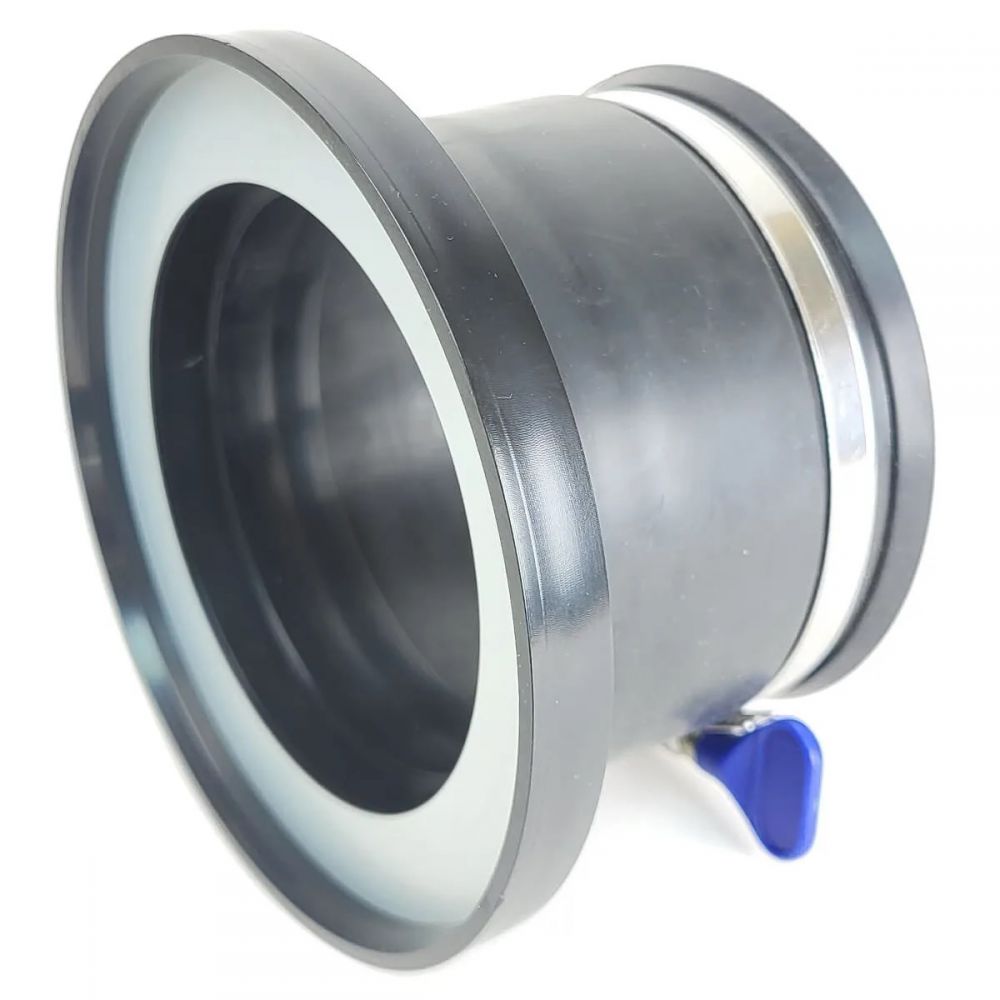

• On the other end is a steel ring ready to accept a magnetic hose connector. When joined they form an instant airtight seal.
• When used as a pair, a hose can be instantly installed or removed completely. It gives a practical option of using a single hose and switching between different machines as required, rather than installing a permanent branch system.
• It is a massive benefit to smaller workshops where hoses left running across the floor represent an annoyance or maybe even a trip hazard. Using magnets on both ends of the hose allows the complete hose to be removed and hung on a wall.
• It also allows a workshop to have 2 different lengths of hose ready to use in an instant. For example a 2.0m hose for a bandsaw which is situated close to the extractor, then swap it out for a 4.0m hose running to the table saw.
• Pair with MAG100 connector to use with 100mm diameter extractor hose.
• Pair with MAG63 connector to use with 63mm diameter extractor hose.

• Cuff Internal Diameter: 100mm (4")
• Size (WxDxH): 90mm x 140mm x 140mm
• Weight: 0.25kg
