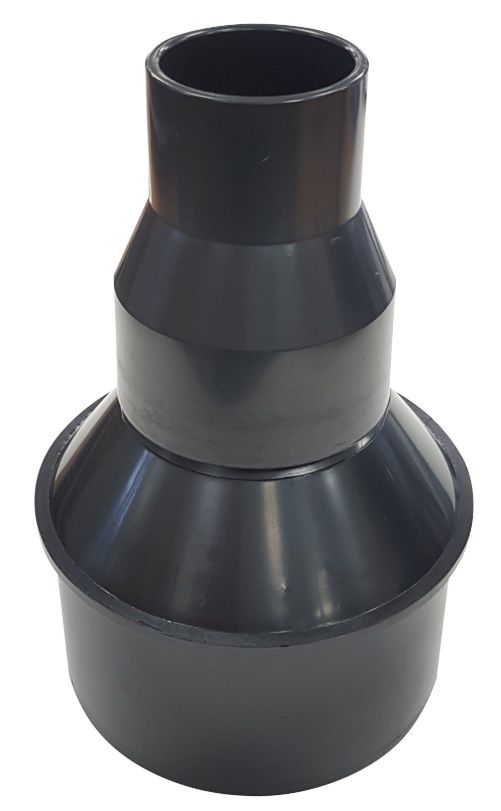

Charnwood Hose reducer 100mm to 45mm - made up of 100/58RC & 63/45RC

Charnwood 100/45RC
Hose Reducer 100mm to 45mm (4" to 1.75")

• Used for stepping down or up in hose size and used for connecting a hose line to machinery with a different sized outlet.
• It is recommended that 100mm diameter hose is always used from the extractor to the dust producing machine and then the reducing cone fitted.Using any length of hose of less than 100mm diameter will reduce the performance of the extractor and should therefore be kept to a minimum.
• A 100mm hose clamp should be used to fasten the hose the reducer

100/45RC

• Large End - outside diameter of 100mm - inside diameter of 93mm
• Small End - outside diameter of 45mm - inside diameter of 39mm
• Overall length: 170mm

Please note: This item (100/45RC) is made up from products: 100/58RC and 63/45RC

• 100/58RC Spec: Large End - outside diameter of 100mm - inside diameter of 93mm. Small End - outside diameter of 58mm - inside diameter of 50mm
• 63/45RC Spec: Large End - outside diameter 63mm - inside diameter of 58mm. Small End - outside diameter 45mm - inside diameter of 39mm
