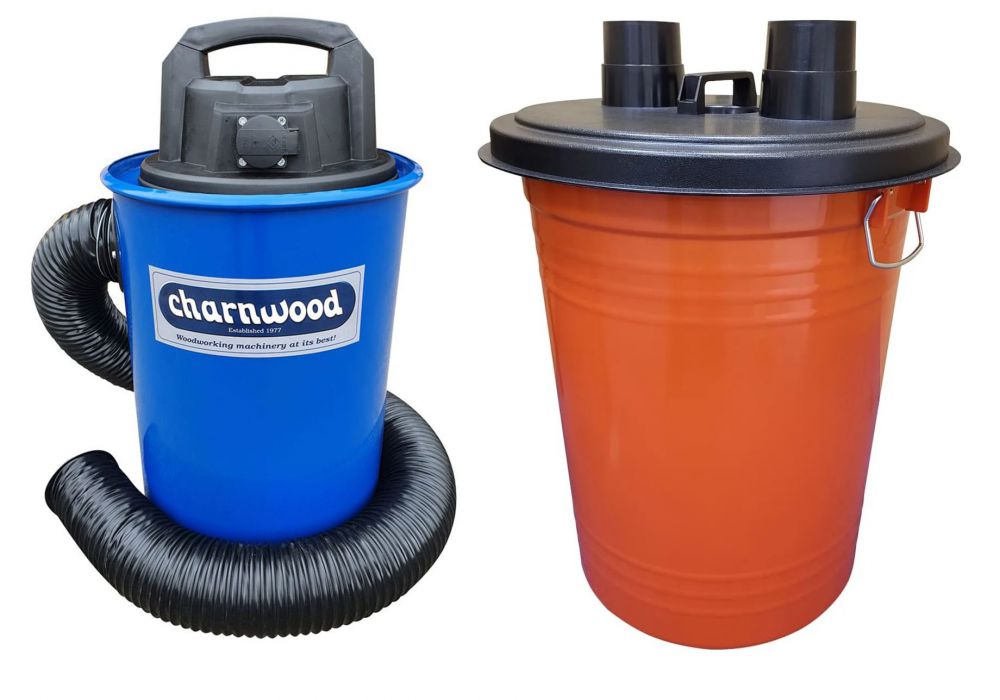

Charnwood DC50AUTO Auto Start Extractor 50L with CK100 Dust Separator Cyclone Kit

Charnwood DC50AUTO Auto Start Extractor 50L with CK100 Dust Separator Cyclone Kit

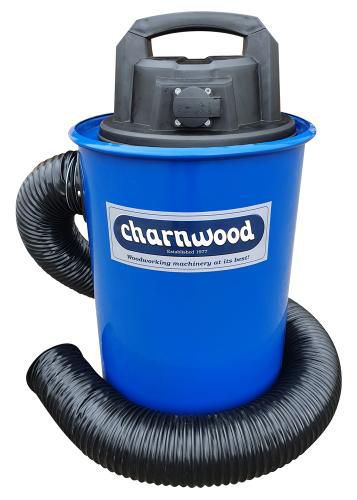

High Filtration Vacuum Extractor with Auto Start, 50L Capacity - (Ref: DC50AUTO)

High filtration vacuum extractor with auto start function. A great time saving feature, perfect for using with tools which make frequent small cuts, such as a mitre saw or bandsaw.

• Filters Down to 0.5 Microns
• Extraction starts and stops automatically
• 50 Litre Collection Capacity
• No Loss of Power with Small Diameter Hoses
• 2 Metre Length of Flexible Hose Included

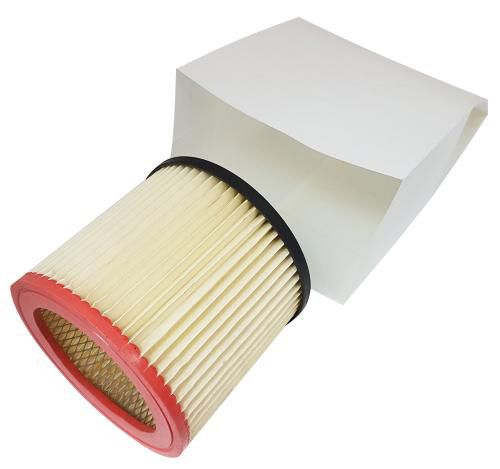

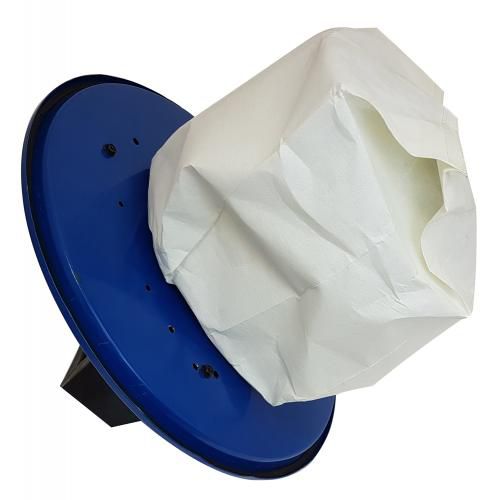

• This fine filter vacuum extractor is ideal for small workshops using bench top machinery and power tools. Because these machines generate a high speed of air through the hose they are more suitable for reducing down to a smaller diameter hose for use with portable power tools. At the heart of the extractor is a 2 stage filter which cleans particles out of the air down to 0.5 micron. Fine enough for every machine in the workshop including sanders. The compact size and light weight, makes it particularly appealing for smaller workshops, where space is a premium, and it can be kept underneath a bench. A quick action clamp releases the lid of the drum to empty it out.
• These extractors are a great alternative to a standard household vacuum because they do not get blocked and have a larger capacity, so need emptying less often.

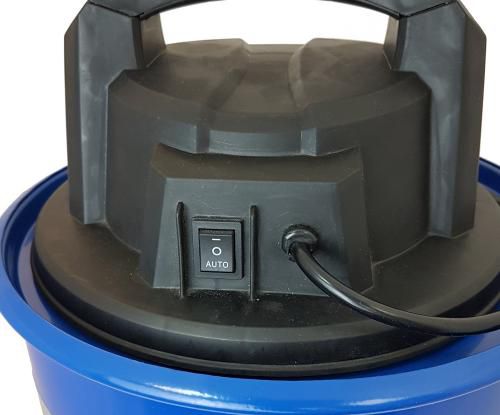

• The extractor can be run as normal in manual mode, with a simple on/off switch.

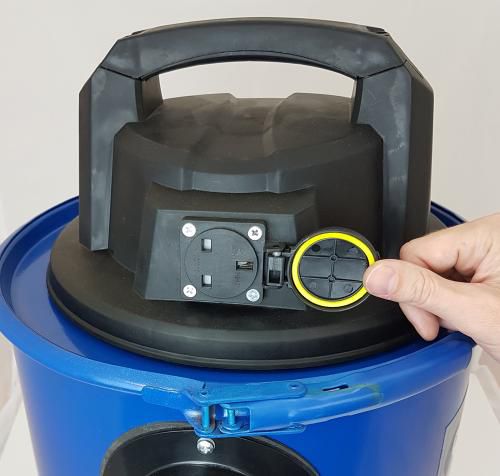

• To operate with auto start function, simply plug your power tool into the integral 3 pin plug socket and set the switch to Auto. Now, the extractor will start whenever the power tool starts and will continue to run for a few seconds after the power tool is stopped to clear any remaining dust and chips from the hose.

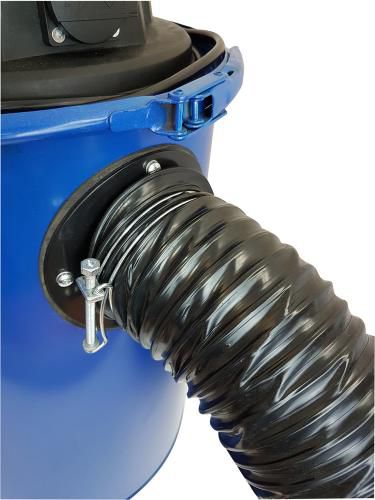

• Supplied with 2m hose, 2 hose clamps, 3 replacement filter bags, 2m cable and plug.
• Please Note: Hose is Left Hand thread so for quick connector use 100QCL

• Motor (carbon brush): 1100w (1.5hp), 220-240v, 50Hz
• Flowrate: 3.05m3/min (53 Litres per second)
• Inlet Diameter: 100mm
• Maximum Power Tool Rating: 2200w
• Drum Capacity: 50 Litres
• Dimensions (WxDxH): 390mm x 450mm x 670mm
• Weight: 10kg
• Rating: Hobby
• Warranty: 5 Years

Charnwood DC50-AUTO Owners Manual

Charnwood Machinery 5 Year Guarantee

Buyers Guide to Dust Extraction

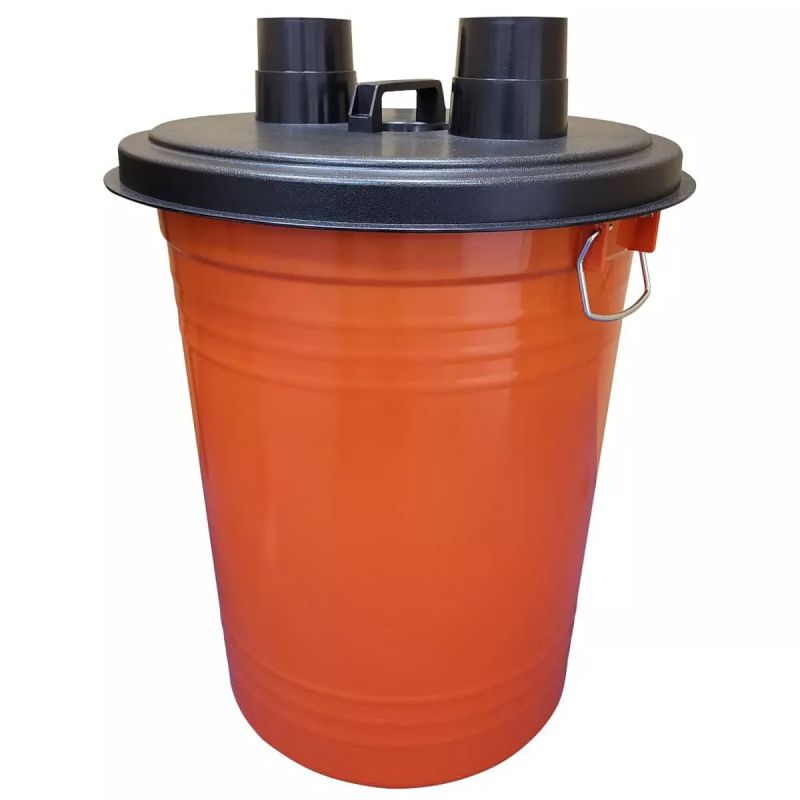

Charnwood CK100 Dust Separator Cyclone Kit For 100mm (4") Hose

• A cyclonic dust separator works in conjunction with a regular dust extractor. It is connected into the hose line to intercept a significant amount of the dust, depositing it  into the container. Up to 95% of all dust, shavings and chips will be collected in the separator and never reach the extractor.
• As the majority of the dust is no longer going into the body of the dust extractor, the life span of the filter is massively extended. Airflow and extractor performance remain more constant as the filters do not get clogged.
• Can be used with vacuum type drum extractors or high volume bag type extractors.

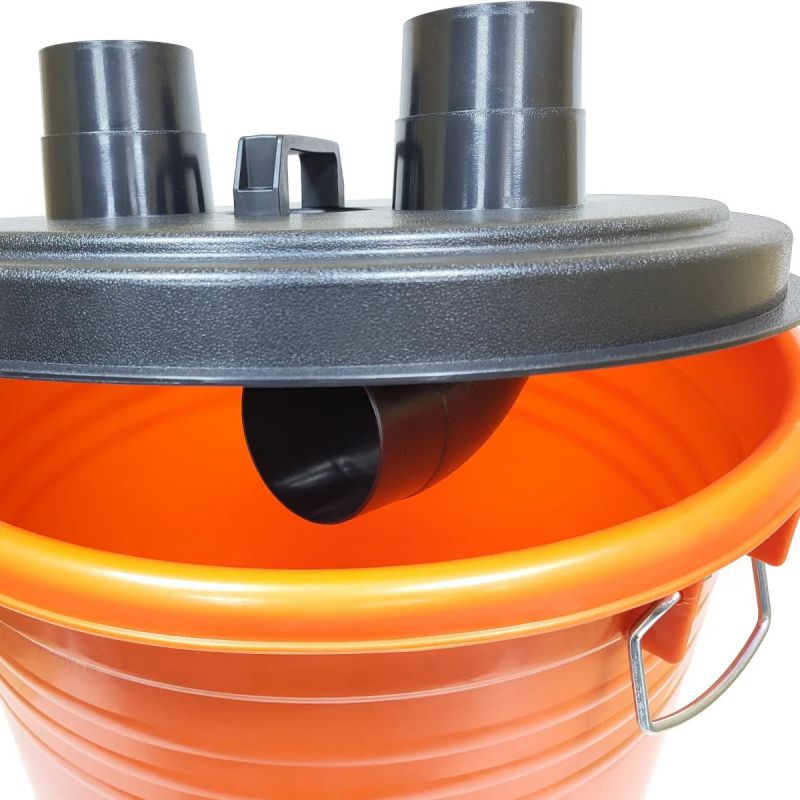

• Simply connect a 100mm hose to the inlet port. Fit the elbow underneath, and angle it, so that air flows around the rim of the container depositing heavier particles into the bottom. Then connect a hose from the outlet port to the dust extractor for the now cleaner air to continue its journey.
• The container is made from translucent plastic so it is easy to see the fill level inside. It is recommended the container be emptied when 2/3rds full, when around 65 litres has been collected.

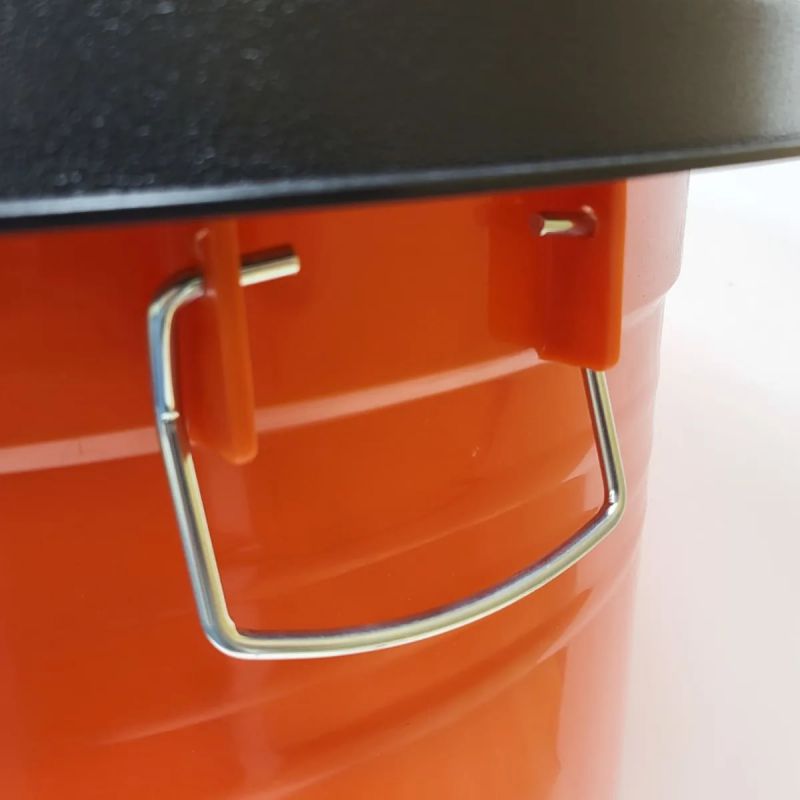

• The container is fitted with carrying handles to take it out for emptying.

• 90 Litre container

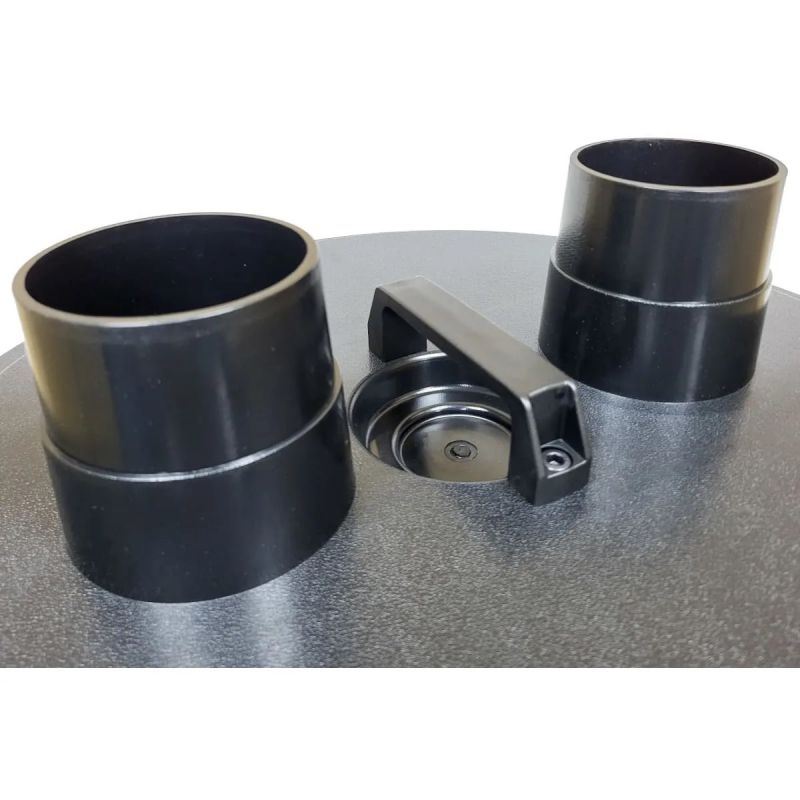

• Lid with 2 x 100mm diameter ports

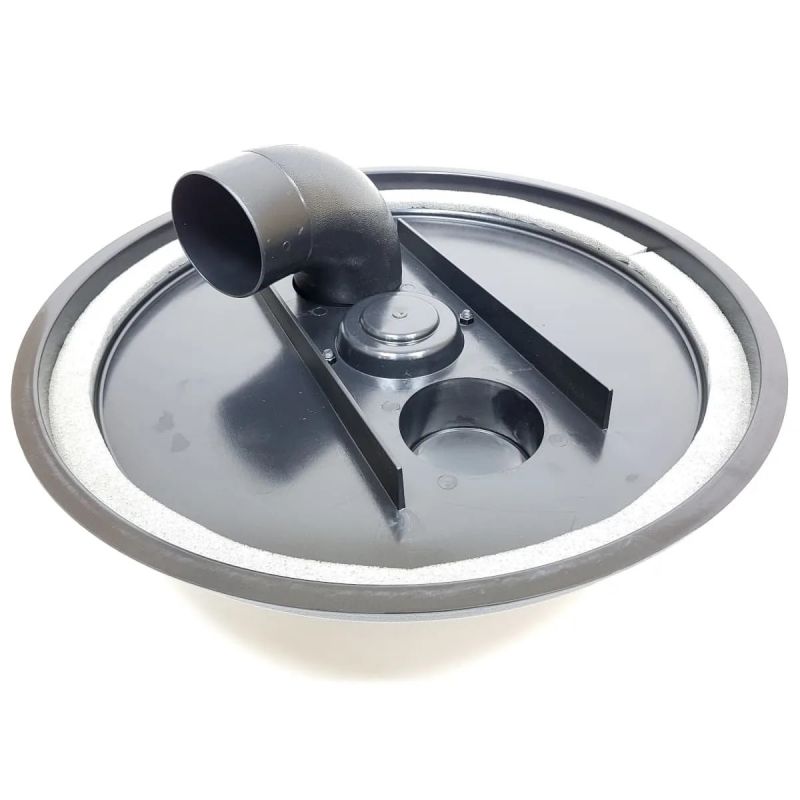

• Elbow for creating the cyclone
• Carrying handles

• Inlet Diameter: 100mm
• Outlet Diameter: 100mm
• Container Size: 90 Litres
• Collection Capacity: 65 Litres
• Material: Rigid Plastic
• Dimensions (WxDxH): 560mm x 560mm x 750mm
• Weight: 3.75kg
