Charnwood CPM1 Compression Type Pen Mandrel With 1MT Fitting
Product Code: CH/CPM1
Brand: Charnwood
In Stock
£35.00 Inc. VAT
£29.17 Exc. VAT
✓ COLLECTION
✓ DELIVERY

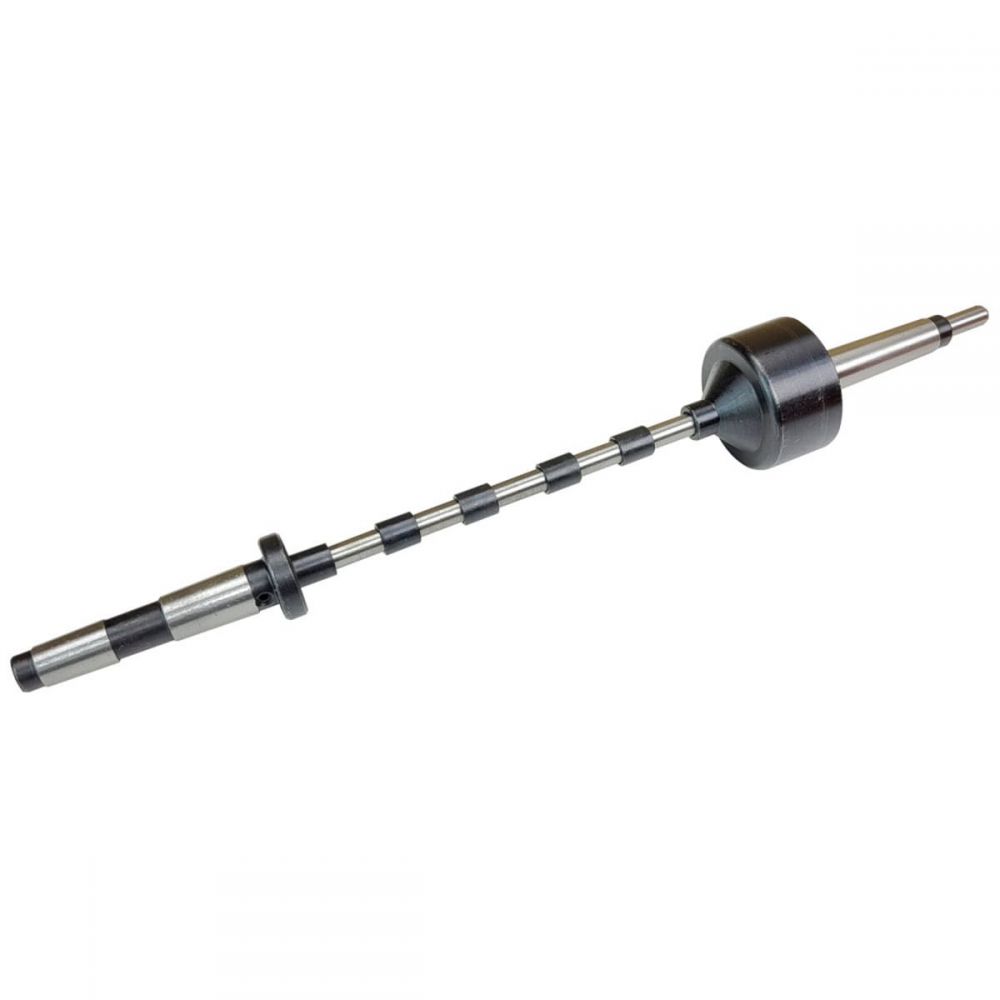

Charnwood CPM1 Compression Type Pen Mandrel With 1MT Fitting
Replaces Charnwood PM1MT Pen Mandrel Set
Key Features

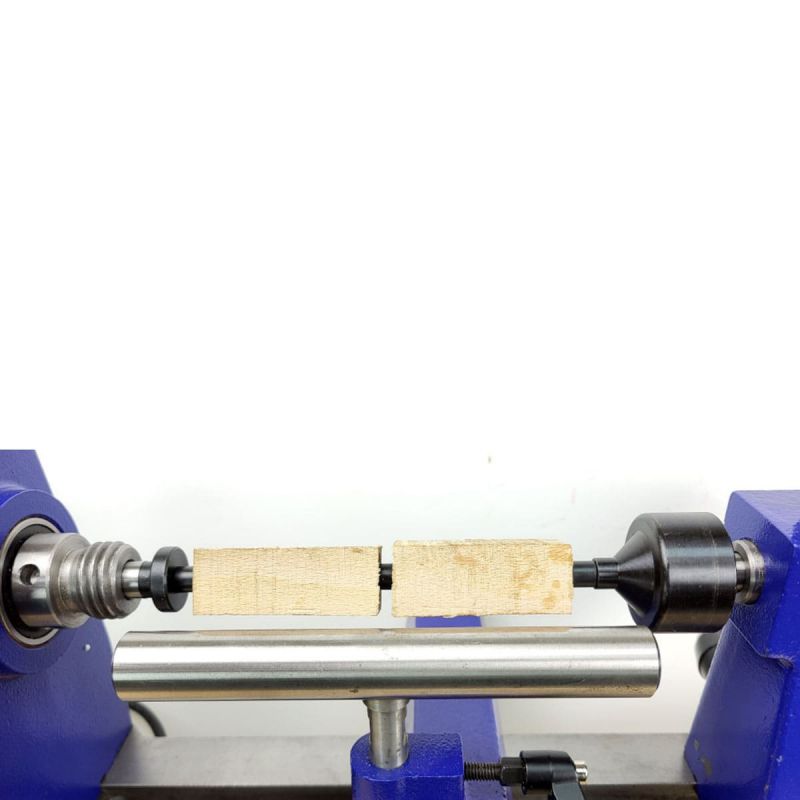

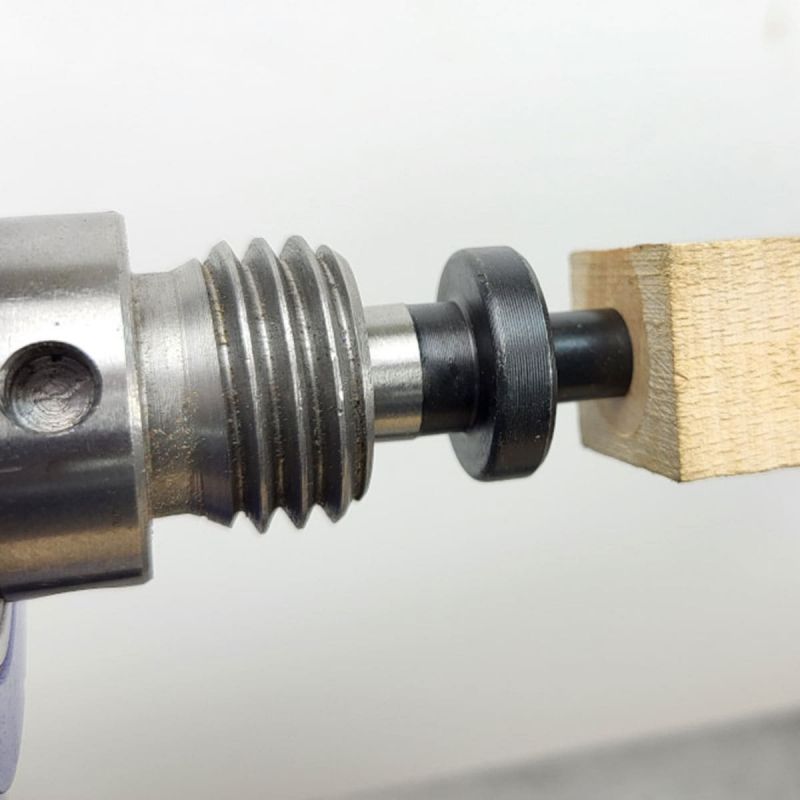

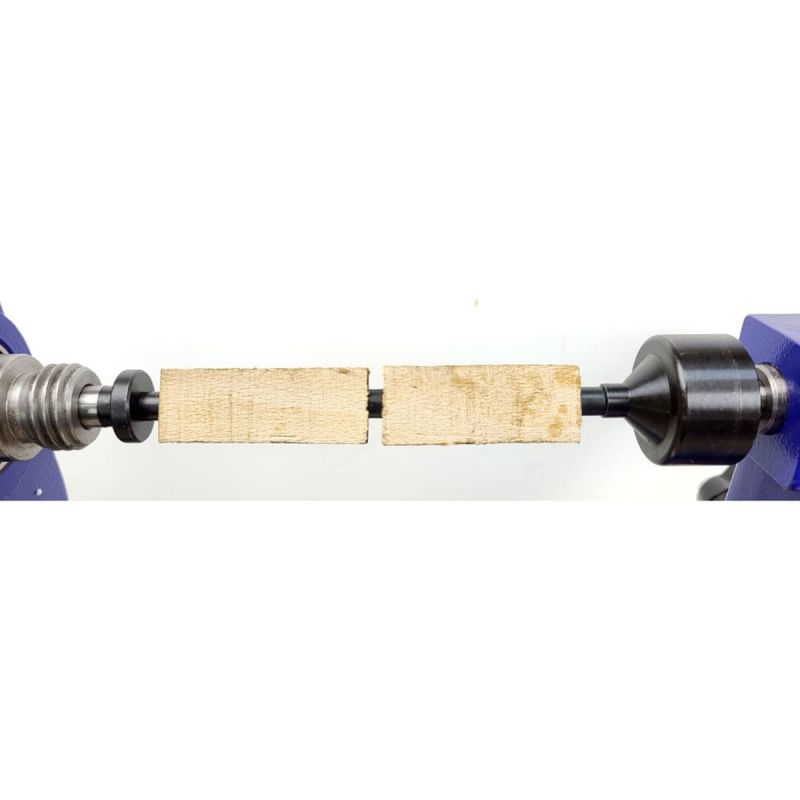

- A pen mandrel is used to mount pen blanks onto a wood lathe, after the blank has been glued onto the tube supplied in any pen kit.
- Our compression type mandrels are superior to the traditional pen mandrel which relies on the standard revolving tail centre to hold it in place.

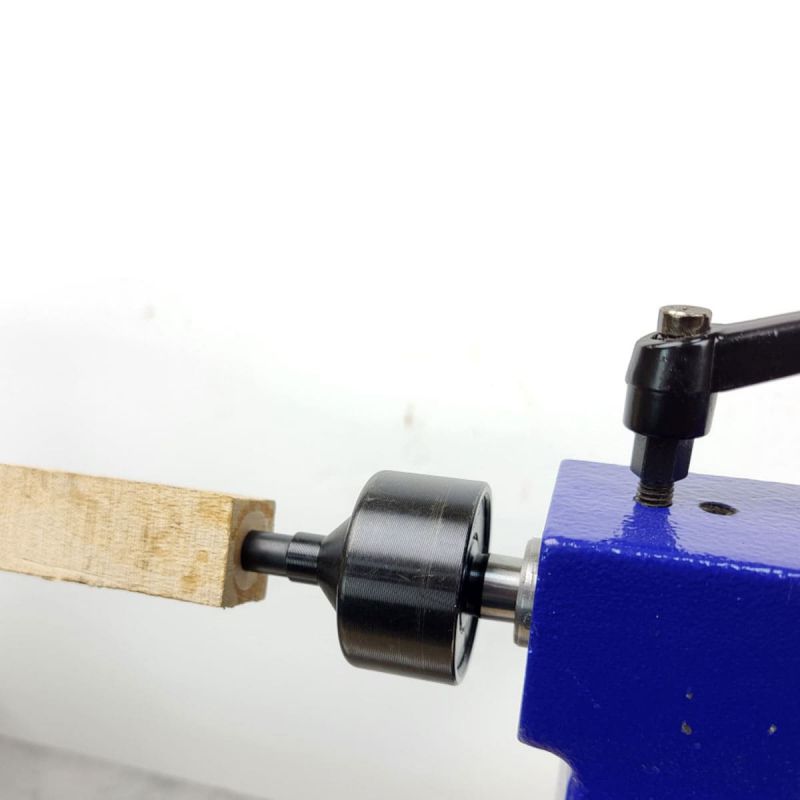

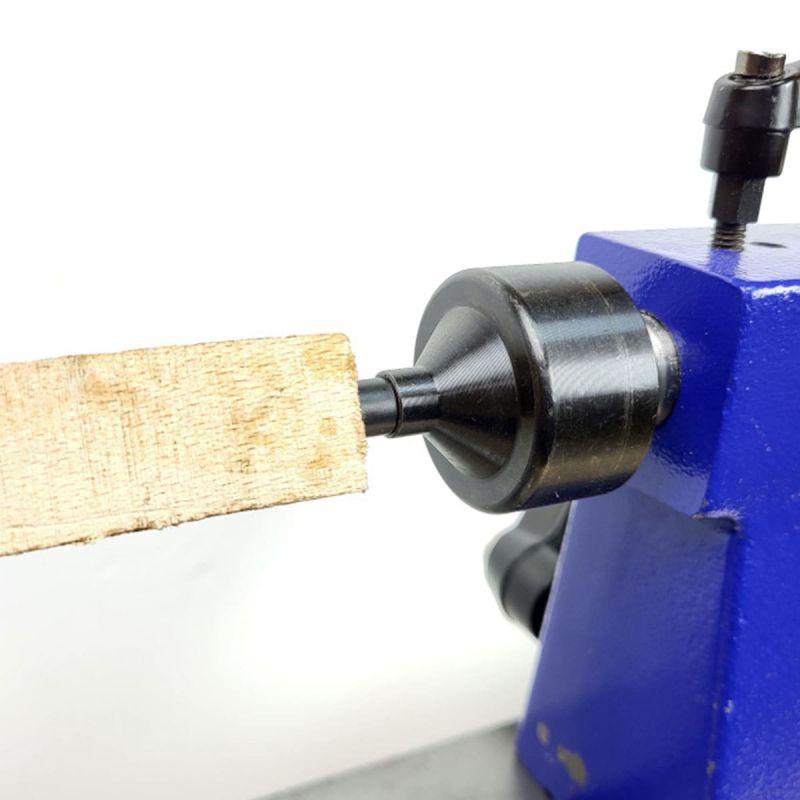

- With a compression mandrel the tail centre is swapped out to a hollow one. By using compression to hold the blank in place, there is less vibration and pens will always be turned as a true round shape.
- A Compression mandrel is also faster to install and remove from the lathe.
- This set is everything you need to start turning pens which use a standard 7mm diameter tube.
- To turn pens with different sizes of tube, you will need a set of appropriate sized bushes. All are compatible with this mandrel.
- Also available in 2MT fitting CPM2
Specification
- Fitting: No.1 Morse Taper (1MT)
- Type: Compression
- Length of shaft: 210mm
- Diameter of shaft (Suitable for other bushing sets): 1/4" (6.35mm)
- Bushes Included: 5 x 7mm
