Charnwood BGCS4 Bench Grinder Chisel Sharpening System

Charnwood BGCS4 Bench Grinder Chisel Sharpening System

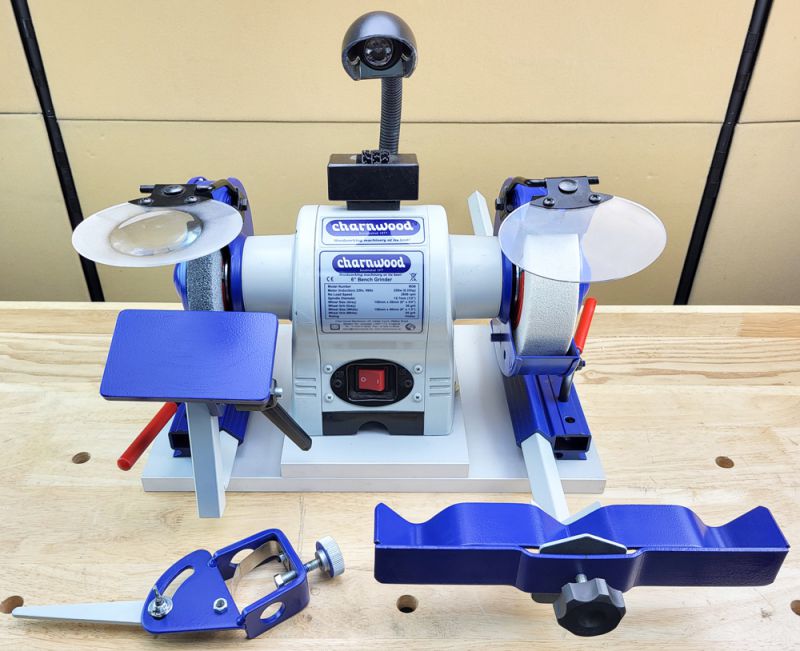

• Bench Grinder Chisel Sharpening System suitable for use with any bench grinder
• For your new Charnwood Grinder Sharpening System to work best, the grinder and your grinding jig should both be securely mounted to a workbench. If you need to move the grinder around your workshop, then use a base board to mount the sharpening system onto. It is important that the position of the wheel and the jig are fixed in relation to each other, to get repeatable results.
• The Base Clamps must be mounted under the grinding wheels with the centre of the grinding wheel in line with the centre of the clamp.

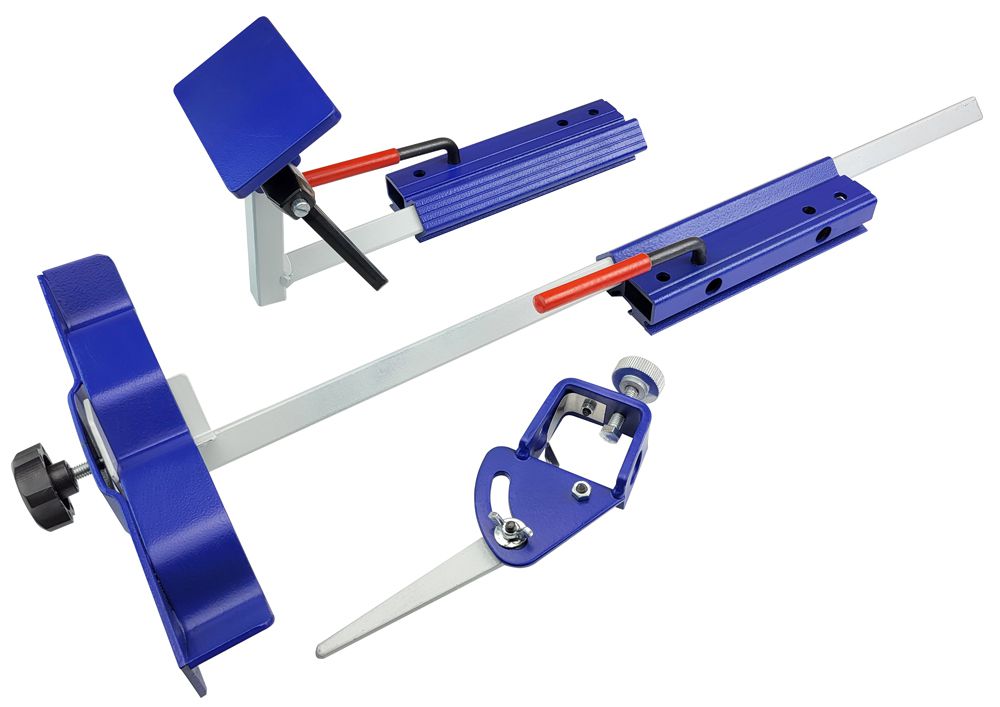

• Right Hand Base Clamp
• Left Hand Base Clamp

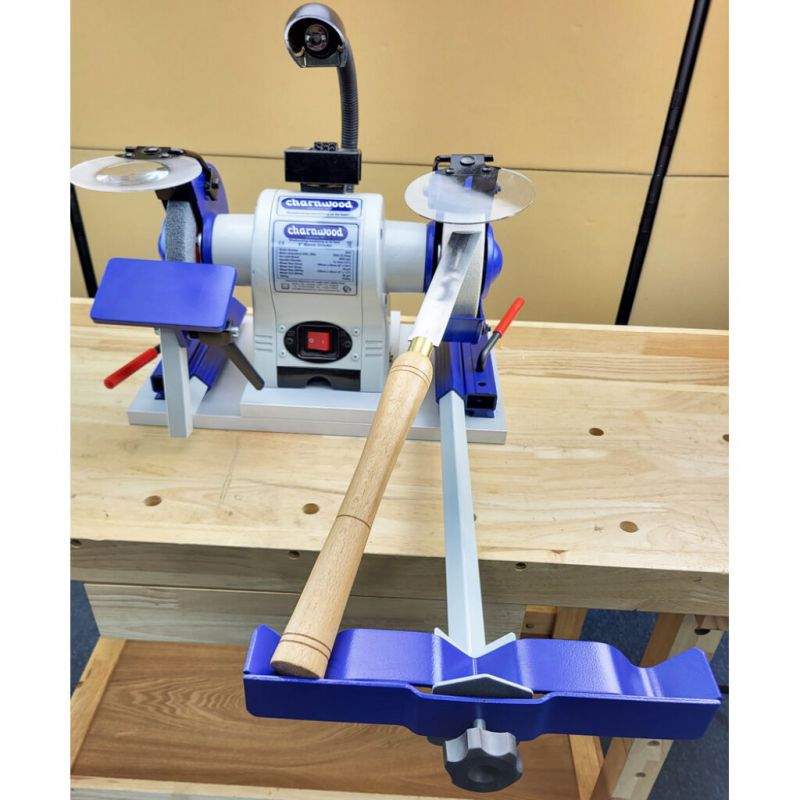

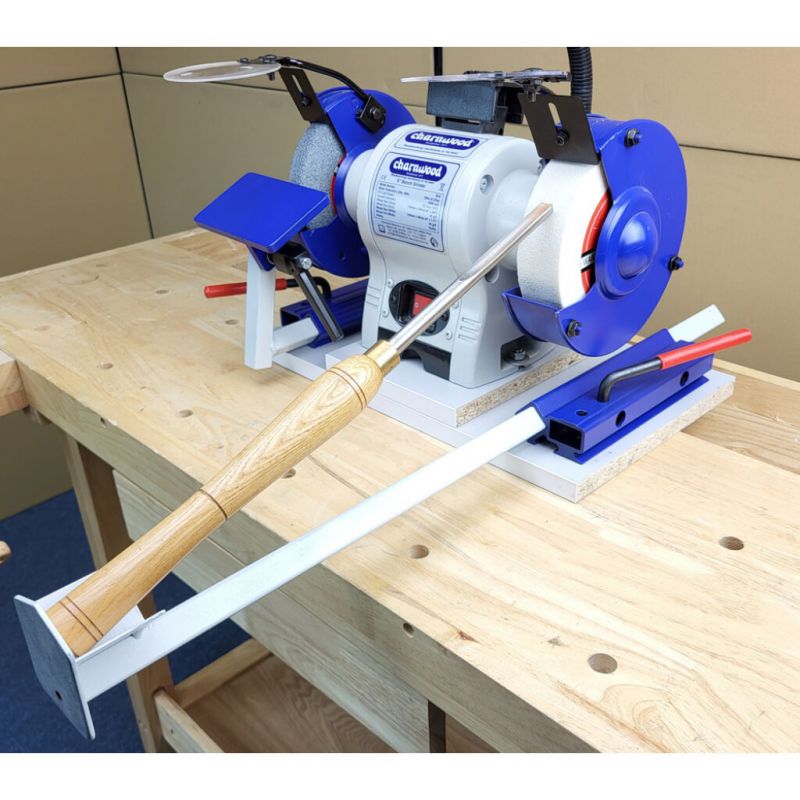

• Long Support Arm – For Bowl Gouges & Roughing Gouges
• Skew Jig Attachment – For Flat or Curved Skews & Scrapers

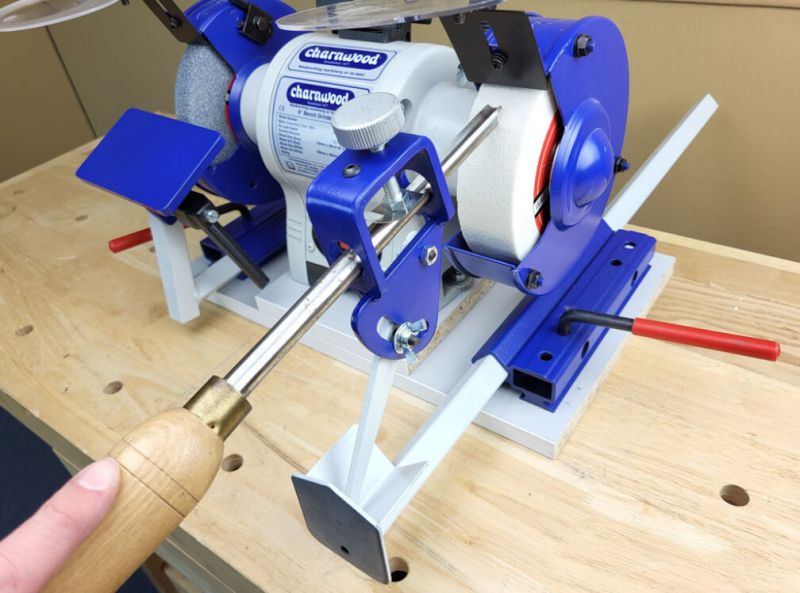

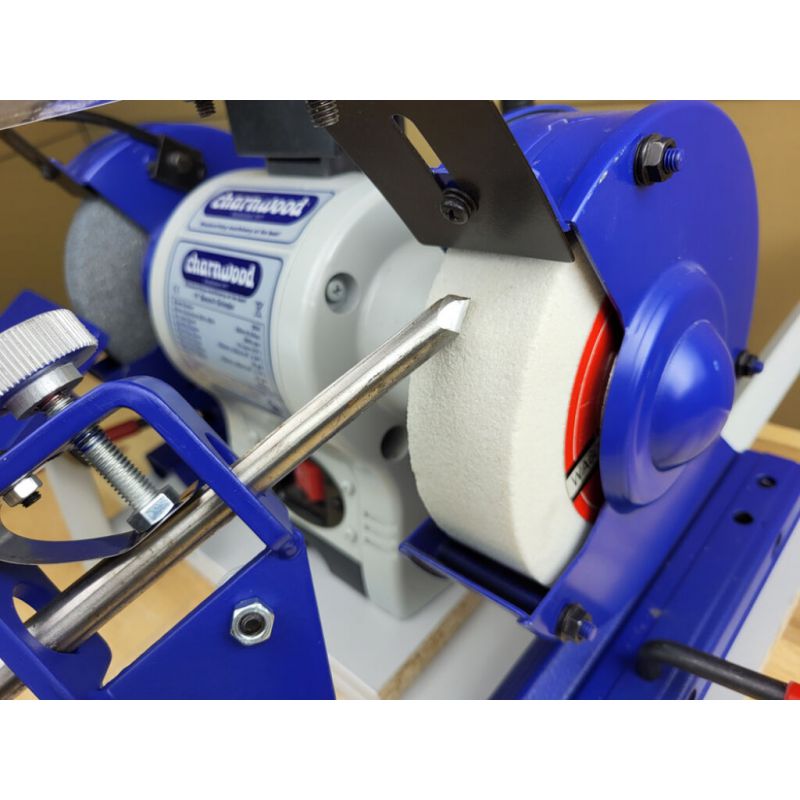

• Fingernail Gouge Jig – Fingernail Gouges & Spindle Gouges

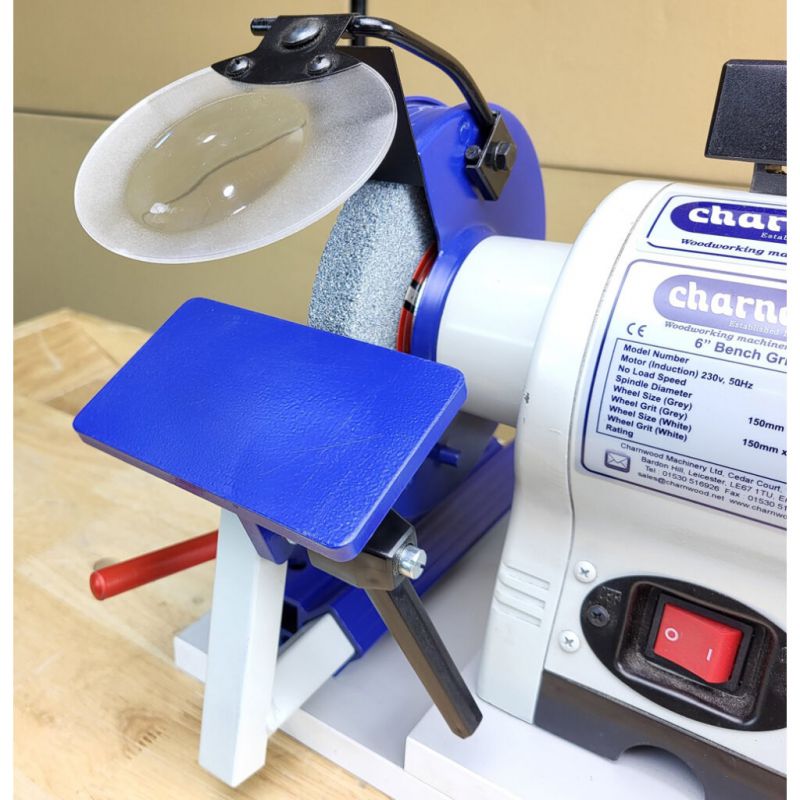

• Platform – For Parting Tools, Straight Edge Skews & Bench Chisels
• Bench grinder NOT included, shown for illustration purposes only.

Charnwood BGCS4 Owners Manual
