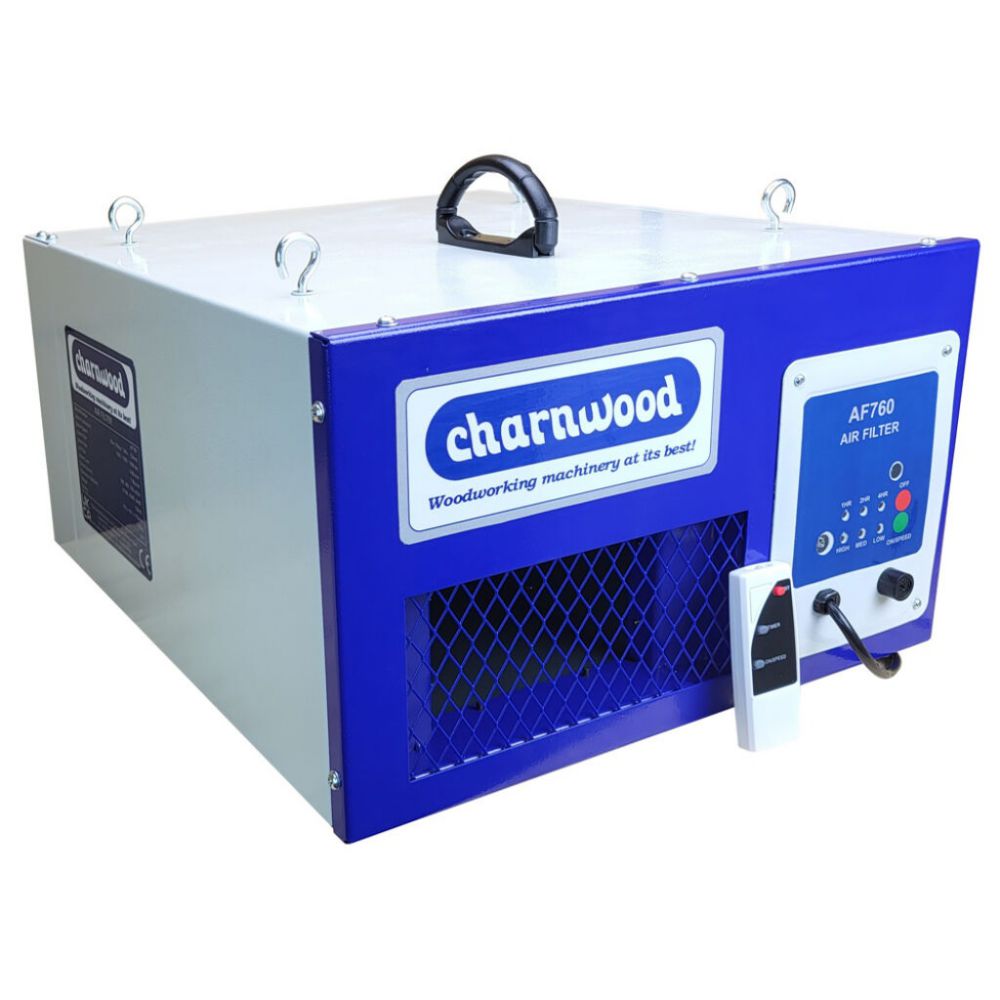

Charnwood AF760 Air Filter, 760m3/hour Flowrate with Remote Control

Charnwood AF760 Air Filter

760m3/hour Flowrate with Remote Control

• With a quiet 95W motor, the AF760 Air Filter is perfect for the average home workshop, especially where hand sanding takes place.

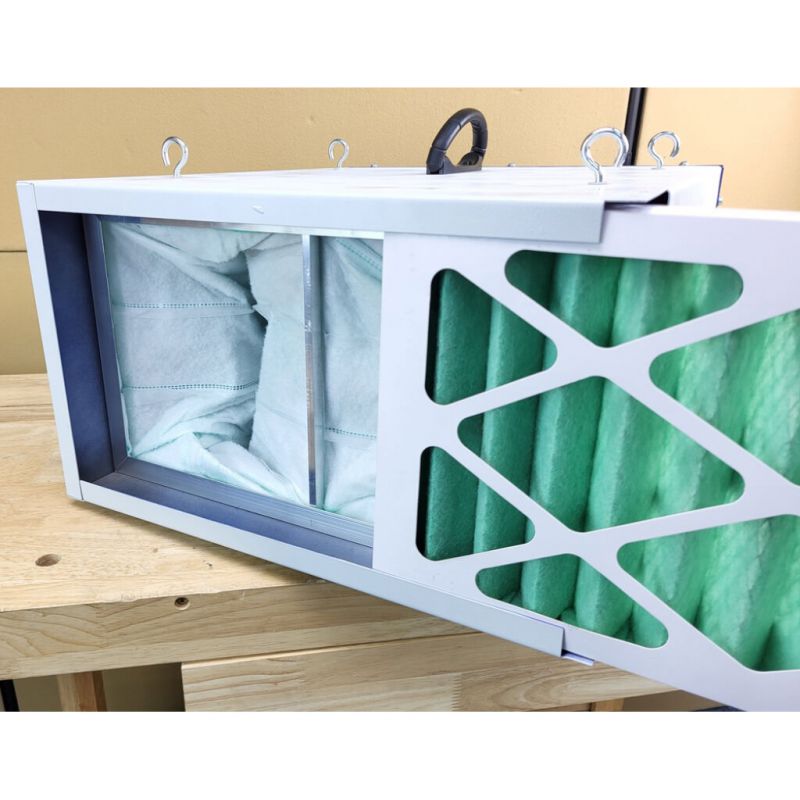

• The air passes through an electrostatic pre-filter into the main pleated filter, filtering 98% of all particles 5 microns in size and 86% of all particles 1 micron in size.

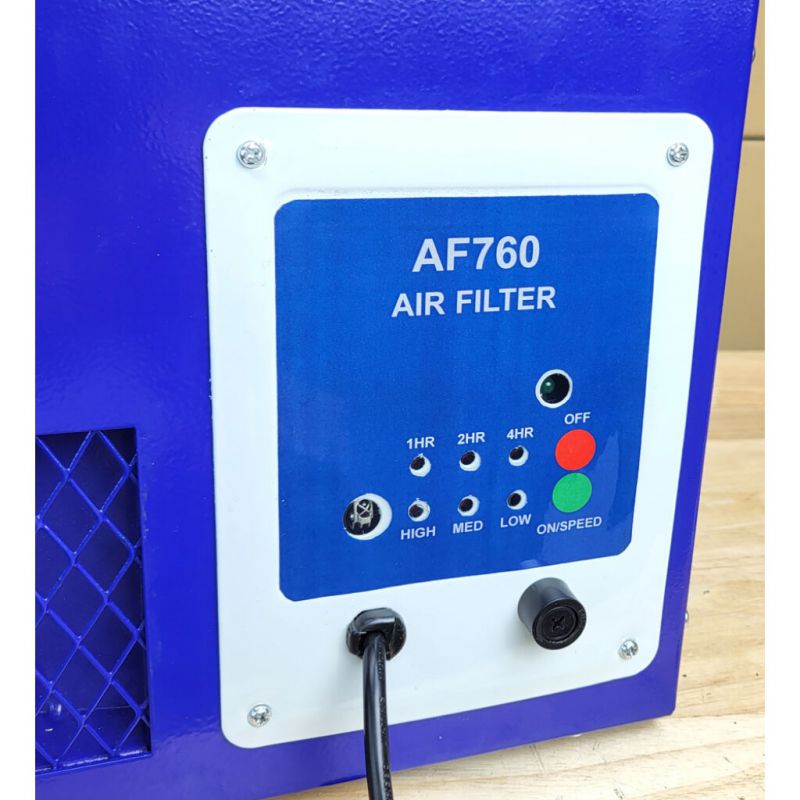

• The remote control unit has three settings for the motor speed and three time settings; 1, 2 or 4 hours, which can be used to clear the workshop after work has finished for the day. (mains cable 4m).

• Motor: (Induction) 95w (1/8hp) / 240v
• Motor Speeds: 1000 / 1200 / 1400rpm
• Outer Filter: 5 Micron
• Inner Filter: 1 Micron
• Air Flow: 595, 680, 760 m3/hr
• Noise Level: 61dB, 62dB, 64dB
• Max. Room Volume: 126m3 (10m x 5m)
• Weight: 17kg
• Dimensions: 370mm wide x 500mm long x 300mm high (tbc)
• Manufacturer’s Warranty: 5 year
• Rating: Hobby
