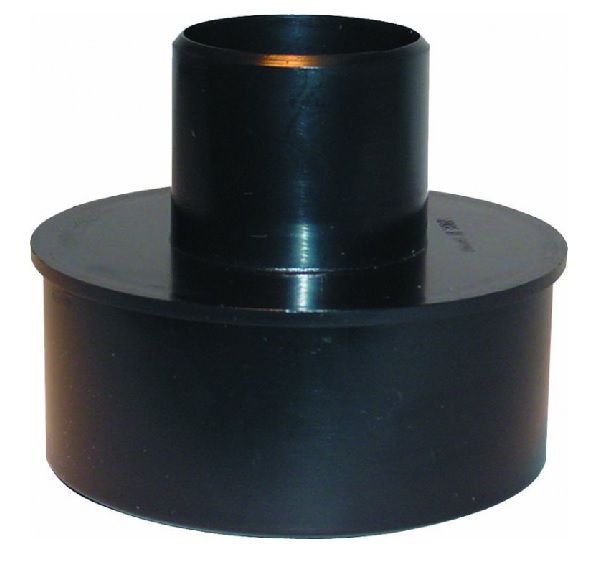

Charnwood 100/67RC Reducing Cone 100mm to 67mm

Charnwood 100/67RC
Hose Reducer 100mm to 67mm (4" to 2.75")

• Reducing cone used to step down or up in hose size and used to for connecting to machinery with different sized outlets.
• It is recommended that 100mm diameter hose is always used from the extractor to the dust producing machine and then the reducing cone fitted. Using any length of hose of less than 100mm diameter will reduce the performance of the extractor and should therefore be kept to a minimum. A 100mm hose clamp should be used to fasten the hose the reducer.

• Large End - outside diameter of 100mm - inside diameter of 94mm
• Small End - outside diameter of 67mm - inside diameter of 60mm
