Charnwood 100/50RC Reducing Cone 100mm to 50mm

Charnwood 100/50RC

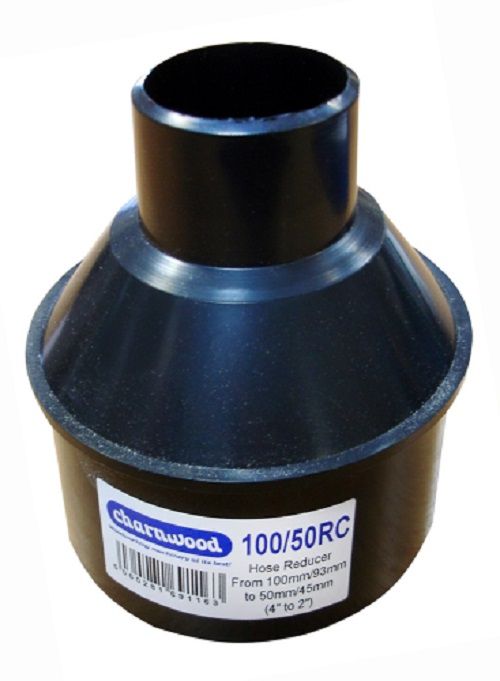

Hose Reducer 100mm to 50mm (4" to 2")

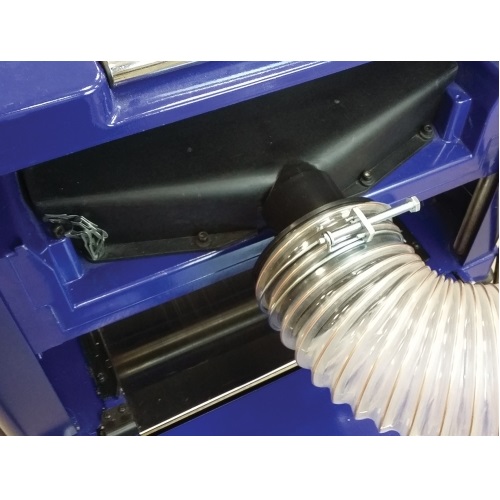

• Used for stepping down or up in hose size and used for connecting a hose line to machinery with a different sized outlet.

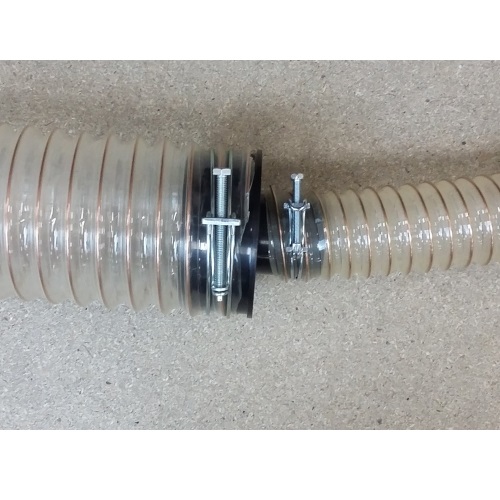

• It is recommended that 100mm diameter hose is always used from the extractor to the dust producing machine and then the reducing cone fitted.Using any length of hose of less than 100mm diameter will reduce the performance of the extractor and should therefore be kept to a minimum. A 100mm hose clamp should be used to fasten the hose the reducer.
• This reducer can be used to step down in hose size from 100mm to 50mm.

• Large End - outside diameter of 100mm - inside diameter of 93mm
• Small End - outside diameter of 50mm - inside diameter of 45mm
