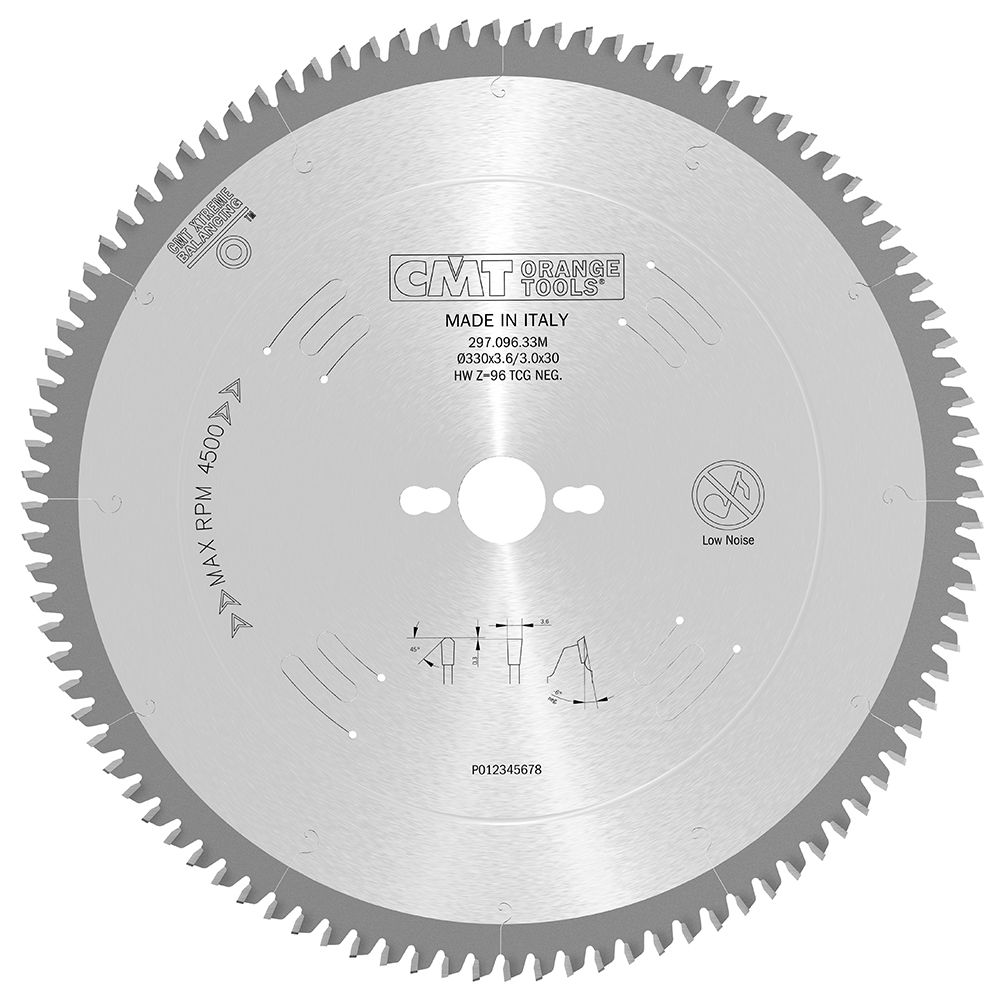

CMT XTreme Non-Ferrous Metal and Melamine Saw Blade 330mm dia x 3.6 kerf x 30 bore Z96 TCG
Product Code: CMT/297.096.33M
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£110.30 Inc. VAT
£91.91 Exc. VAT
CMT XTreme Non-Ferrous Metal and Melamine Saw Blade 330mm dia x 3.6 kerf x 30 bore Z96 TCG
Ref: 297.096.33M
Key Features
- INDUSTRIAL NON-FERROUS METAL AND LAMINATED PANEL CIRCULAR SAW BLADES
- Teeth height 297 series mm 8
- ISO grade K10
- Hardness (HV10) 1.765
- Transverse rupture strength (N/mm2) 2.150
- Warning: it is recommended to use a liquid lubricant. Wax stick for lubrication NOT RECOMMENDED.
- Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.
Suitable for use with
- Circular saws, mitre saws, sliding mitre saws, table saws, double mitre saws. Recommended use with saw blades over the workpiece.
Applications
- For cutting and dividing tubes, drawn products and solid blocks.
- Material: aluminium, brass, copper alloys, plastic, composite material, melamine and laminated panels.
Specification
- (D) Diameter: 330mm
- (B) Bore: 30
- (FT) Pin hole: COMBI3 2/7/42 + 2/9/46.4 + 2/10/60
- (Z) Number of cutting edges/teeth: 96
- (K) Kerf thickness: 3.6mm
- (P) Plate thickness: 3mm
- (α) Hook angle: - 6 neg. degrees
- (β) Type of grind: TCG
