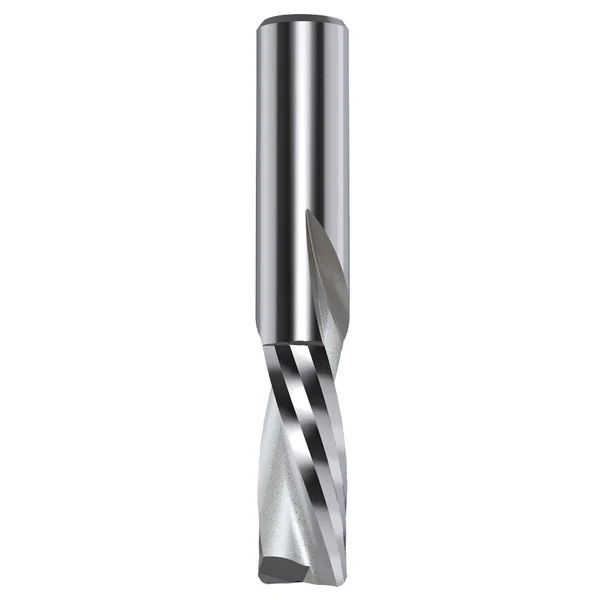

CMT Solid carbide downcut spiral bit - 3.18 dia x 12.7mm cut x 1/4 shank

CMT Solid carbide downcut spiral bits
Ref: 192.001.11

• SHARP TECHNOLOGY WITH A NEW TWIST
• A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.
• INCREASED FEED RATE AND IMPROVED CUTTING QUALITY FOR ENHANCED PRODUCTIVITY WITH CMT!

• Premium quality HWM.
• 2 spiral cutting edges (Z2).
• Provide an excellent finish on the upper side of the workpiece.
• Downward chip ejection.

Application:

• Used for cutting, copying, panel sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed speed on well-clamped workpieces. Can be used on machining centres, point to point machines, CNC routers and hand-held routers equipped with chucks or adaptors.

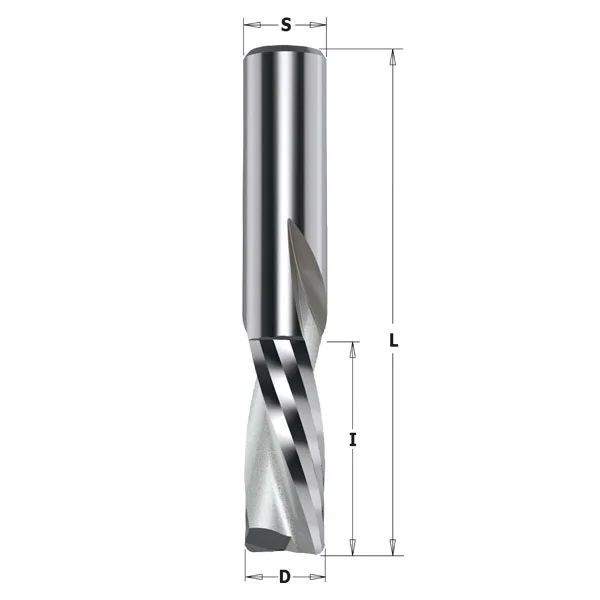

• D: 3.18 (diameter)
• I: 12.7 (cutting length)
• L: 50.8 (overall length)
• S: 6.35 (shank diameter)
• Z: 2 (number of cutting edges)
• MAT: HWM (material)
