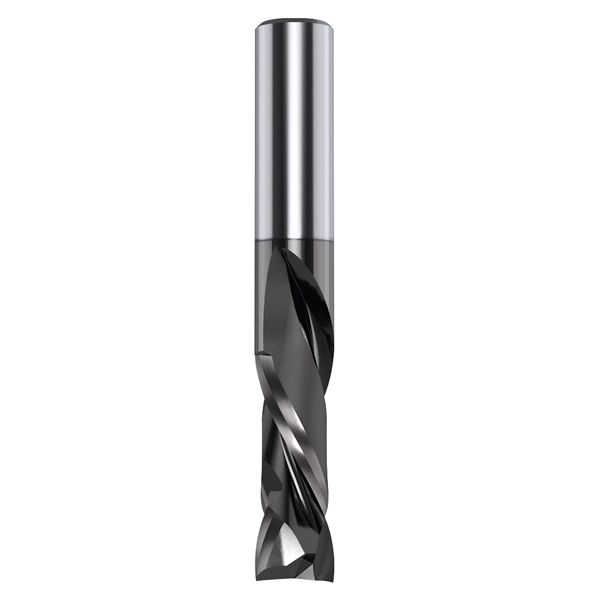

CMT Solid Carbide Spiral Router Cutter Upcut / Downcut 12.7mm dia x 41.3 cut x 1/2 shank

CMT Solid Carbide Upcut & Downcut Spiral Bits
Ref: 190.508.41

• DLCS CHROME COATING
  PROVIDES 3 TIMES LONGER LIFE THAN UNCOATED TOOLS!
• EXTREME COATING HARDNESS >HV 2.500
  Offers impressive hardness on cutting areas of the tool and superb protection against abrasive wear and stress resistance.
• MINIMAL COATING THICKNESS ΜM 2-4
  The minimal micron coating guaranteed perfect sharpen edges for high cutting quality.
• THE LOWEST COEFFICIENT OF FRICTION 0,1-0,2
  Very good running-in and low friction losses. Reduction of sticking. Ideal for high speeds in Nesting applications.
• HIGH WORKING TEMPERATURE
  Less overheating! The coating guarantees working temperature up to 400° preserving the cutting edges from wear.

• Premium quality HWM.
• 2+2 spiral cutting edges [Z2+2].
• 3+3 spiral cutting edges [Z3+3].

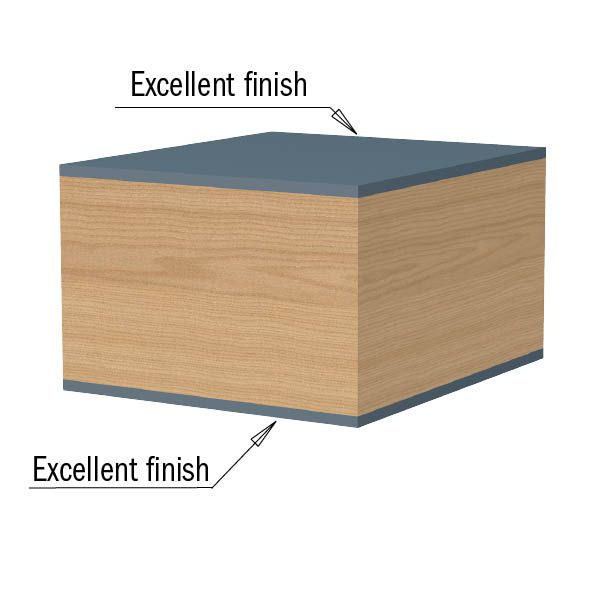

• Provide an excellent finish on both the upper and the lower side of the workpiece.
• TEST PERFORMED IN U.S. WITH ½” SOLID CARBIDE COMPRESSION SPIRAL BIT
  Machine: Felder Profit H10 Nested Base/Overhead CNC Router
  Working Parameters: RPM = 18,000 - Feed = 20 mts/minute
  Material: 19mm Melamine Chipboard
  Application: Nesting Full Dimensioning
  Performance: DLCS coated bit cut 165 melamine panels. Uncoated bit cut 56 melamine panels.

• Used for cutting, copying, panel sizing and any routing application on solid wood, wood composites, plastic materials and laminates.
• Use a high feed speed on wellclamped workpieces.
• Can be used on machining centres, point-to-point boring machines, CNC routers and hand-held routers equipped with chucks or adapters.

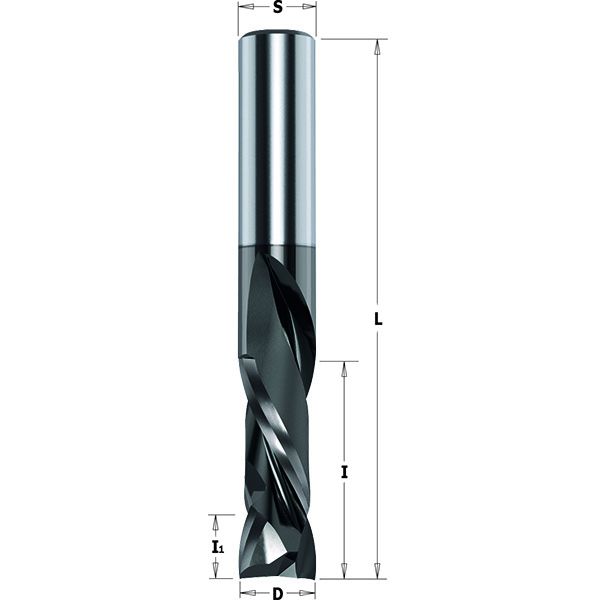

• D: 12.7 (diameter)
• I: 41 (cutting length)
• I1: 12
• L: 101 (overall length)
• S: 12.7 (shank diameter)
• Z: 2+2 (number of cutting edges)
• MAT: HWM (material)
• Right hand
