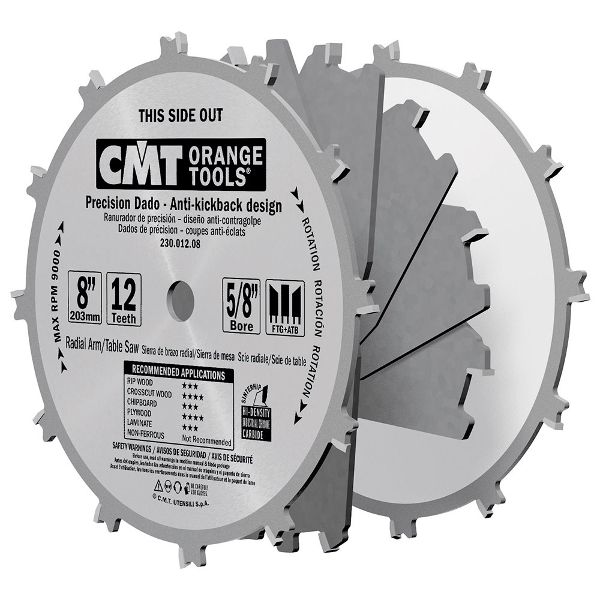

CMT Precision Dado Blade 8" x 12 Tooth ATB 5/8" BORE

CMT Dado Pro Precision Dado Blade Set
8" x 12 Tooth ATB 5/8" BORE
Ref: 230.012.08

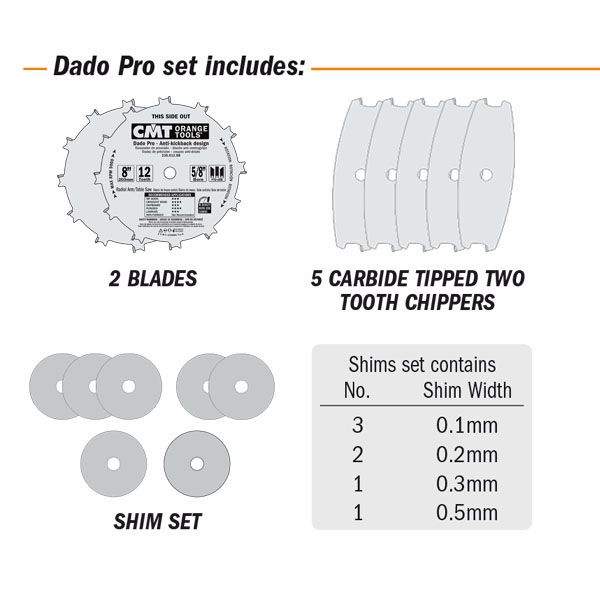

• 2 Blades
• 5 Carbide tipped two tooth chippers (230.999.23)
• Shim set

• CMT thoroughly researched the shortcomings of “standard” dado sets in order to understand what cabinetmakers required most from an “ideal” dado. The result was the Dado Pro Set, designed with the following features:
• Anti-kickback design to reduce the possibility of overfeeding that can occur when cutting mass material.

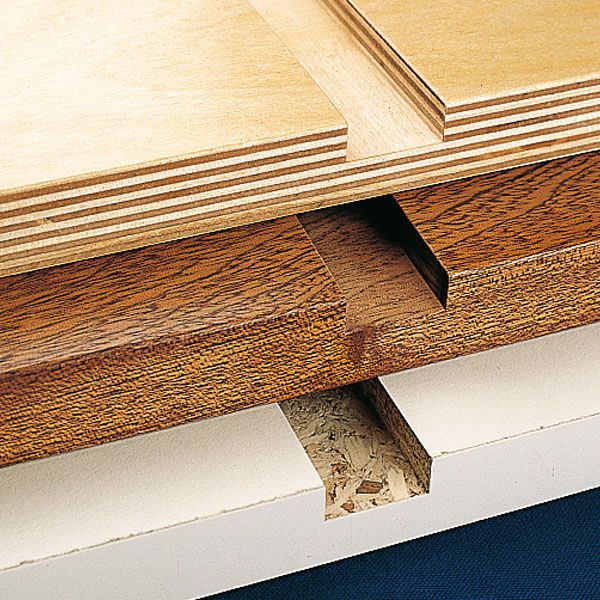

• Splinter resistant cuts in veneer plywood, melamine and soft + hardwoods.

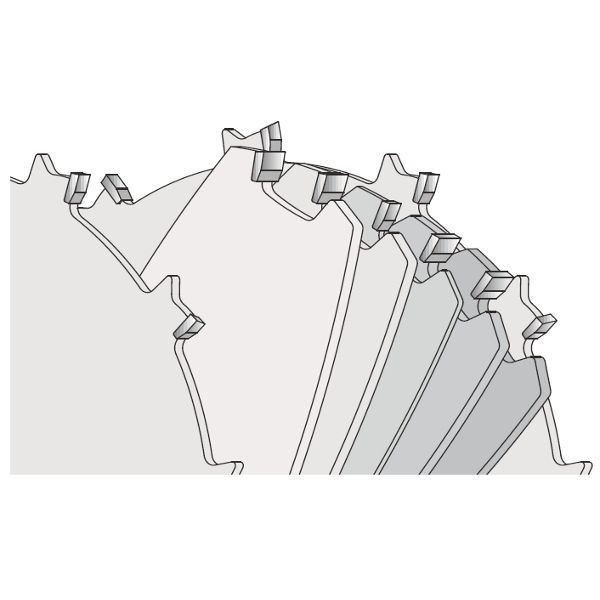

• Five chippers (4x1/8” - 1x1/16”) keep the cut flat and virtually free from tear out.
• Shim sets included for cuts between 1/4” and 13/16”.
• Ideal for underpowered saws.

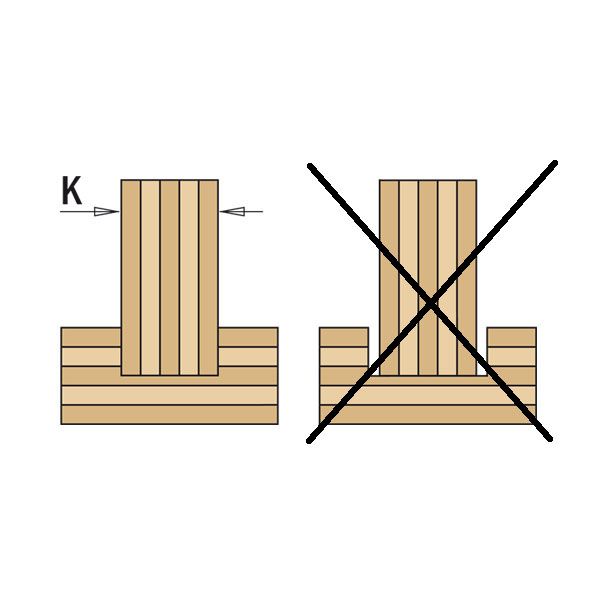

• SAFETY PRECAUTIONS: always use both outside blades. Carbide teeth should never come into contact with each other.

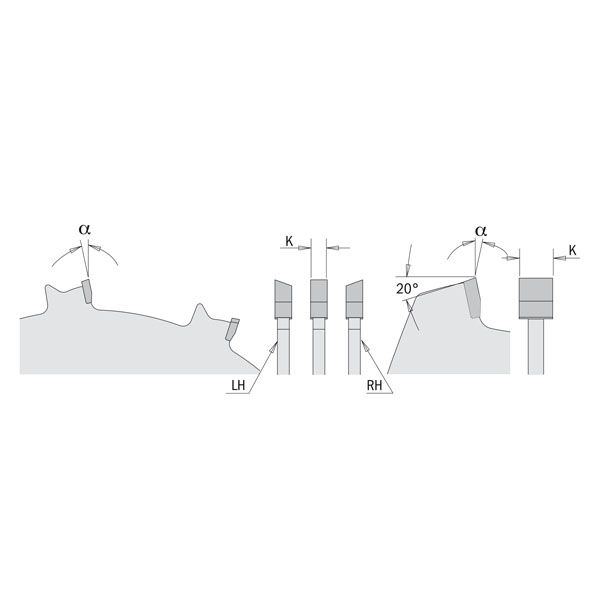

• DRAWING REFERS TO INSIDE BLADES.
  LH = Left blade.
  RH = Right blade.

• D: 206 (diameter)
• B: 15.87 (bore diameter)
• Z: 12 (number of cutting edges)
• K: 3.2 (kerf thickness)
• P: 2.5 (plate thickness)
• α: -12° (hook angle)
• β: FTG+ATB (type of grind)

:
