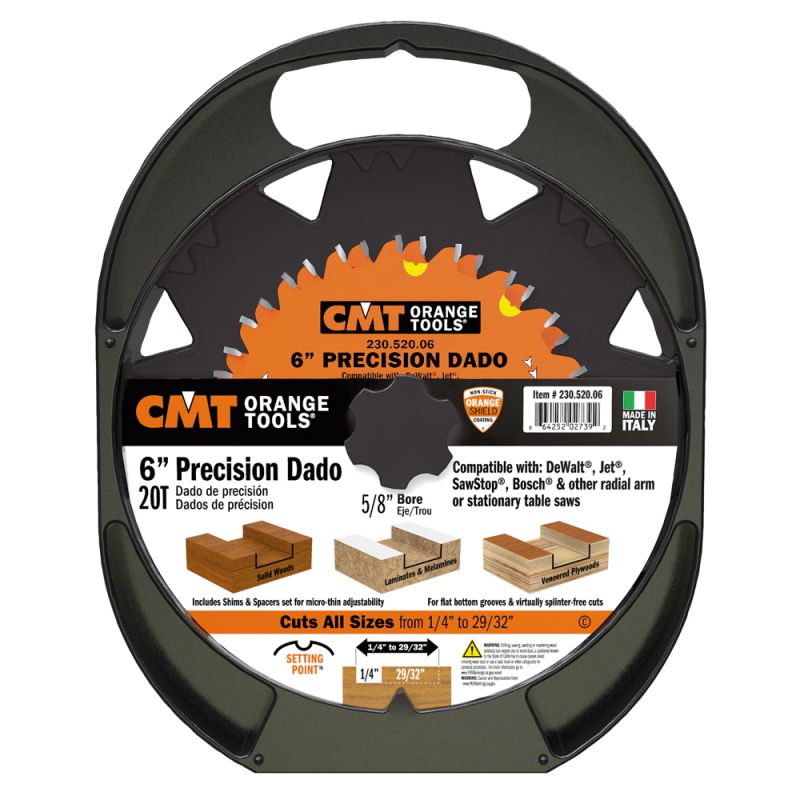

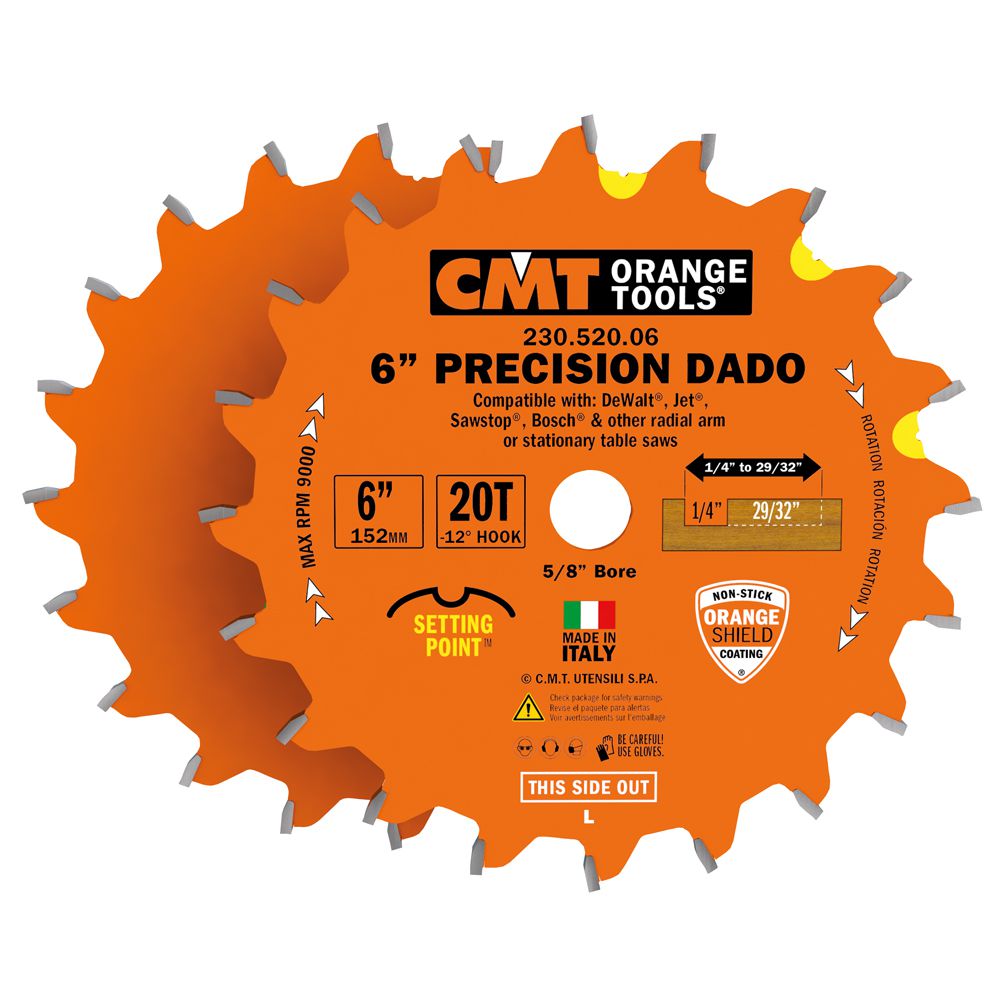

CMT Precision Dado Blade 6" 152 dia x 15.87 bore Z20 FTG+ATB

CMT Precision Dado Blade 6" 152 dia x 15.87 bore Z20 FTG+ATB
Ref: 230.520.06

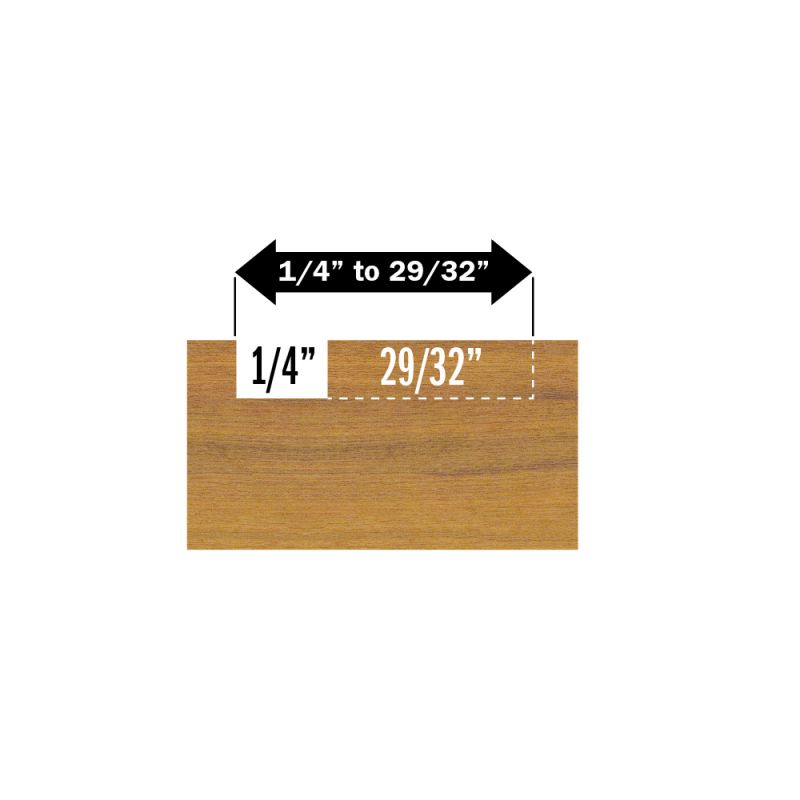

Cuts all sizes from 1/4" up to 29/32"

CMT designed a new DADO precision set with the following features:

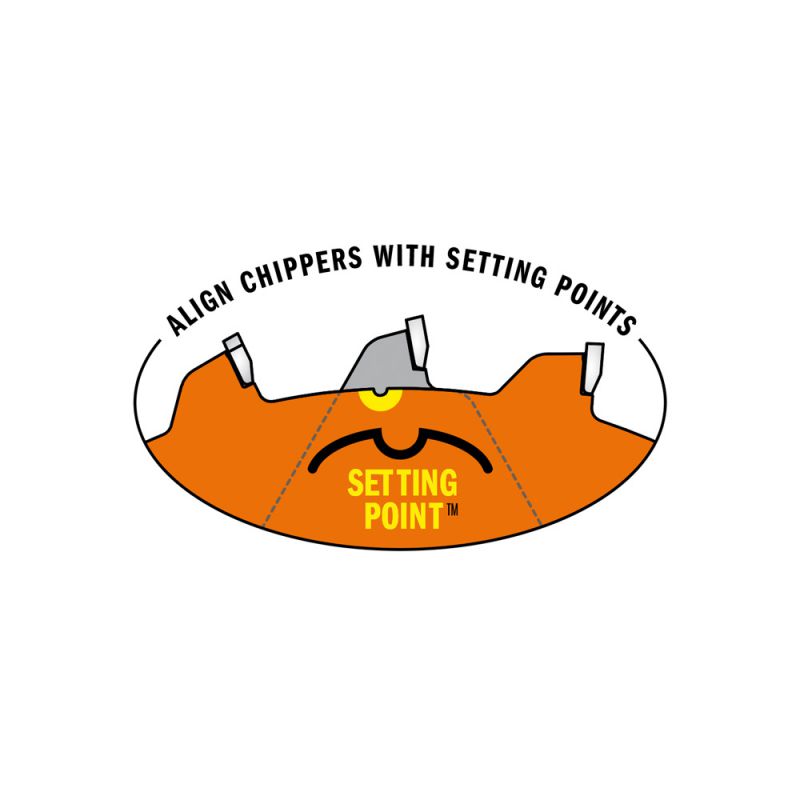

• New setting points for chippers alignment.

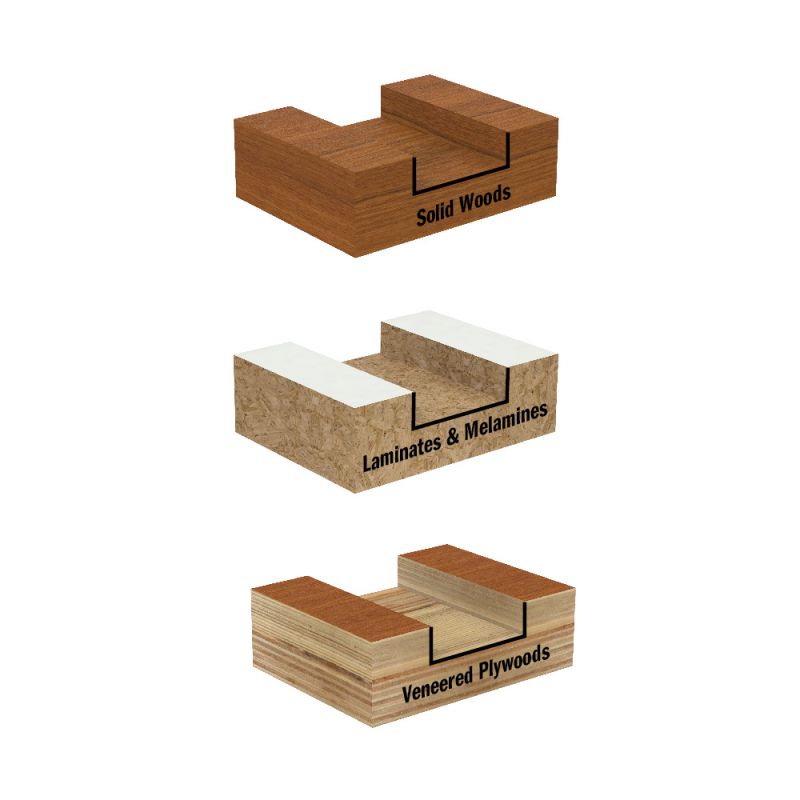

• For flat bottom grooves and virtually splinter free cuts in solid wood, laminates, melamines and veneer plywood.

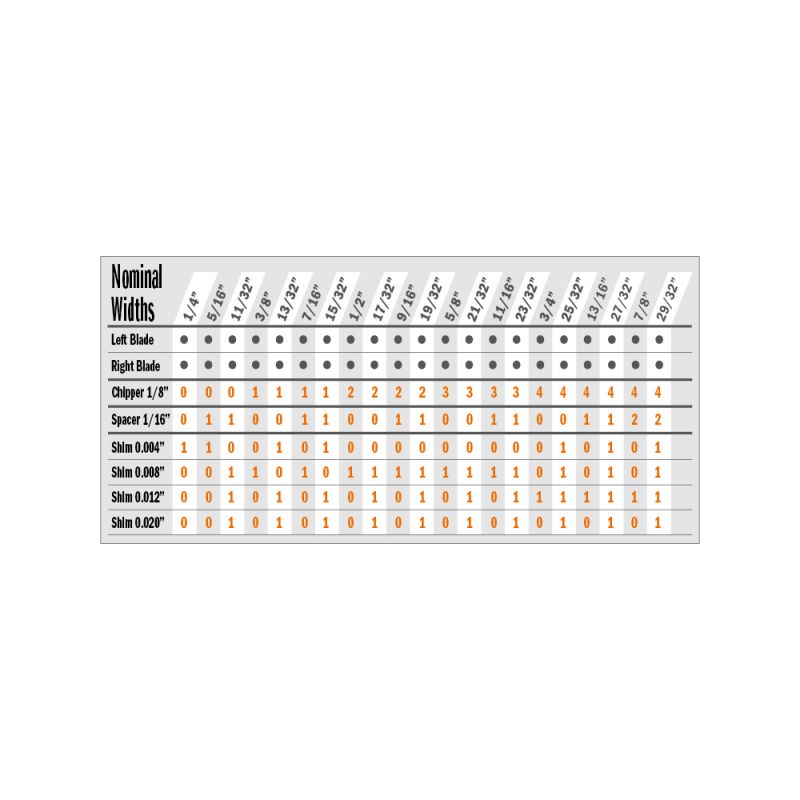

• Includes shims (plastic and magnetic) and plastic 'lock spacers' set for micro thin adjustability.
• Orange shield coating protects from heat, gumming and corrosion.
• WARNING: Always use both outside blades. Never use the chippers by themselves, or with only one outside blade. Securely fasten CMT dado on machine using manufacturers recommended dado arbor nut.

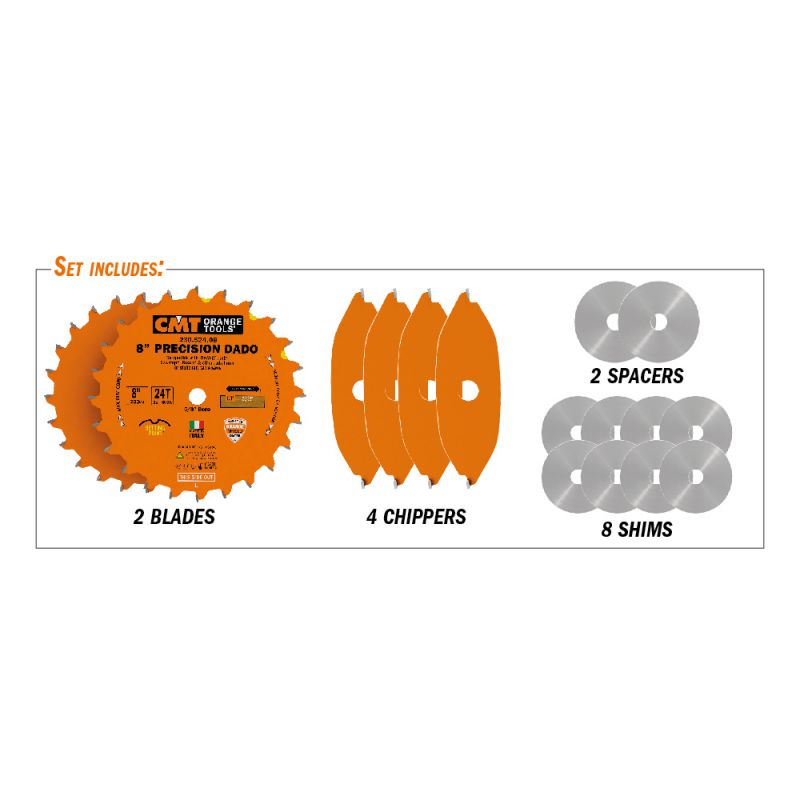

• 1 x left outside blade 6"
• 1 x right outside blade 6"
• 4 x chippers 1/8"
• 2 x spacers 1/16"
• 8 x shims

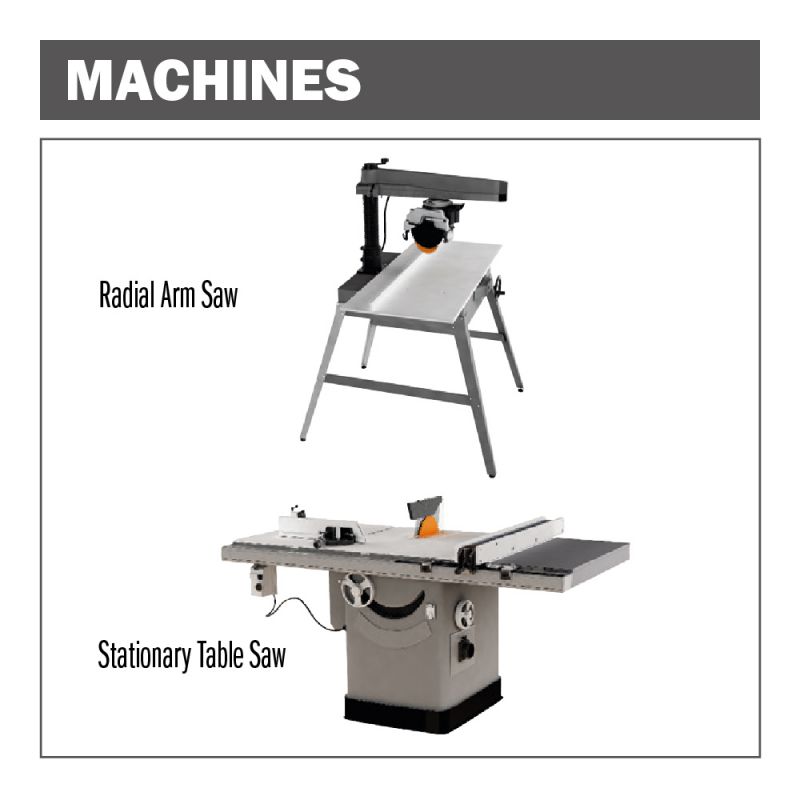

• Radial arm saws, table saws

• (D) Diameter: 152mm
• (B) Bore: 15.87
• (Z) Number of cutting edges/teeth: 20

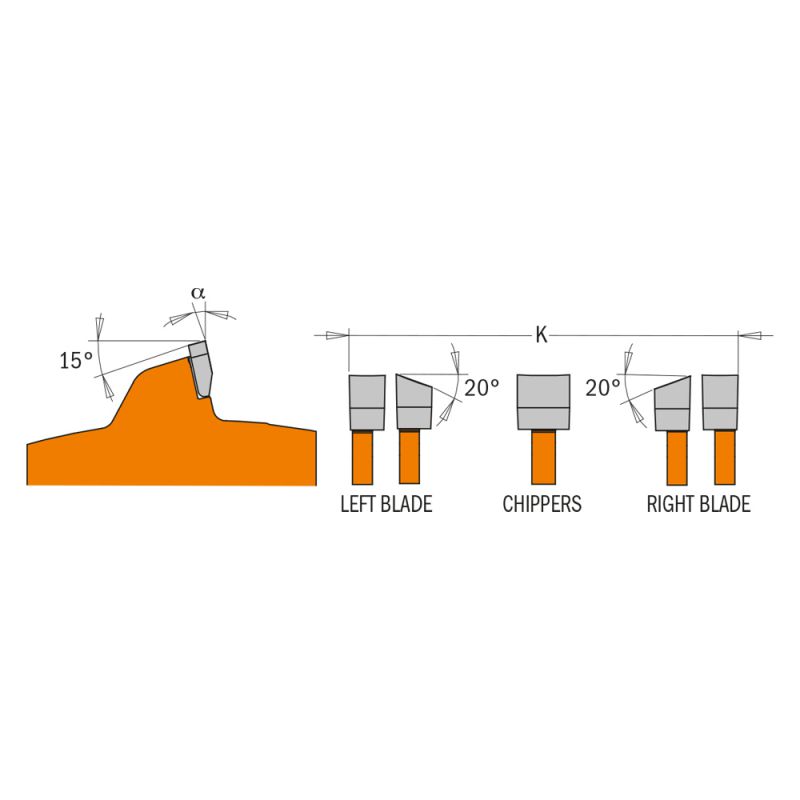

• (α) Hook angle: - 12 neg. degrees
• (β) Type of grind: FTG + ATB

Instruction Sheet and Safety Warnings
