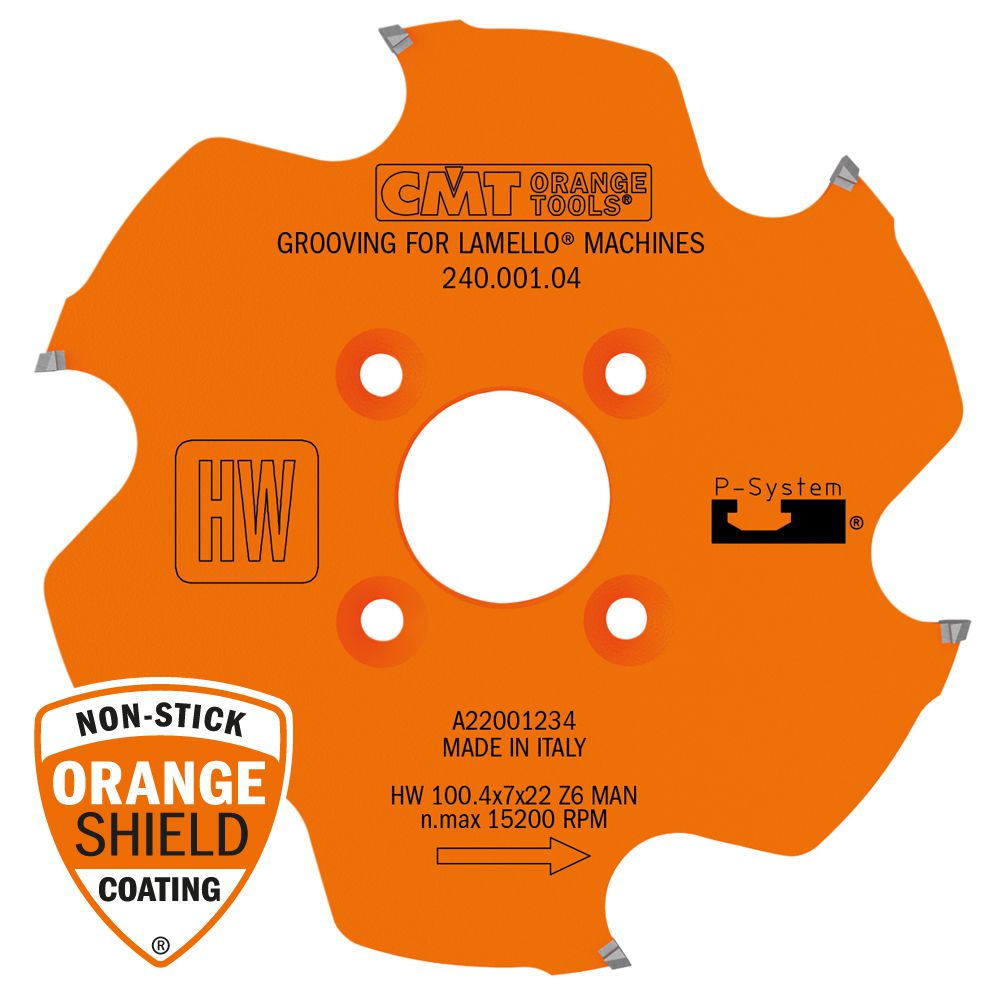

CMT Biscuit Joiner Grooving System Blade 100.4mm dia x 7 kerf x 22 bore Z6

CMT Biscuit Joiner Grooving System Blade 100.4mm dia x 7 kerf x 22 bore Z6
Ref: 240.001.04M

• Designed for P-System precision biscuit joints.
• Serial processing capability of P-System grooves means improved effectiveness and performance;
• Optimum productivity with fixed standard parts, controlled quality and reproducibility;
• Production methods are further enhanced as the same quality groove created with Zeta P2 power tools can also be realized on a CNC machine. This means work pieces can be prepared ahead of time and then assembly completed on-site.

• Biscuit joiners, CNC machines.
• 240.601.04, 240.001.04 SUITABLE FOR LAMELLO® ZETA P2.
• 240.601.04M SUITABLE FOR CNC MACHINES.

• P-System for connecting fittings.
• The connecting fitting is a preferred solution for open shelf units, large pieces of furniture and angled counters, and a popular choice as a general glueing aid for a variety of angles.
• Frequently used as a visually appealing and premium quality solid joint for high-end products.
• Knock down fitting for furniture, shelf units, fitted wardrobes, kitchen manufacturing etc.
• Glueing aid for mitres, and 45° angles;
• Connecting fittings for removable elements in trade booth construction and shopfitting projects;
• Great alternative to standard connecting fittings;
• Quick and easy prototype construction prior to launch of new furniture range;
• On-site adjustments and assembly.

• (D) Diameter: 100.4mm
• (B) Bore: 22
• (FT) Pin hole: 4/4.5 - 9.5/36
• (Z) Number of cutting edges/teeth: 6
• (K) Kerf thickness: 7mm
• (P) Plate thickness: 4mm
• (α) Hook angle: 20 degrees
• (β) Type of grind: TCG
• Blade coating: Orange shield
