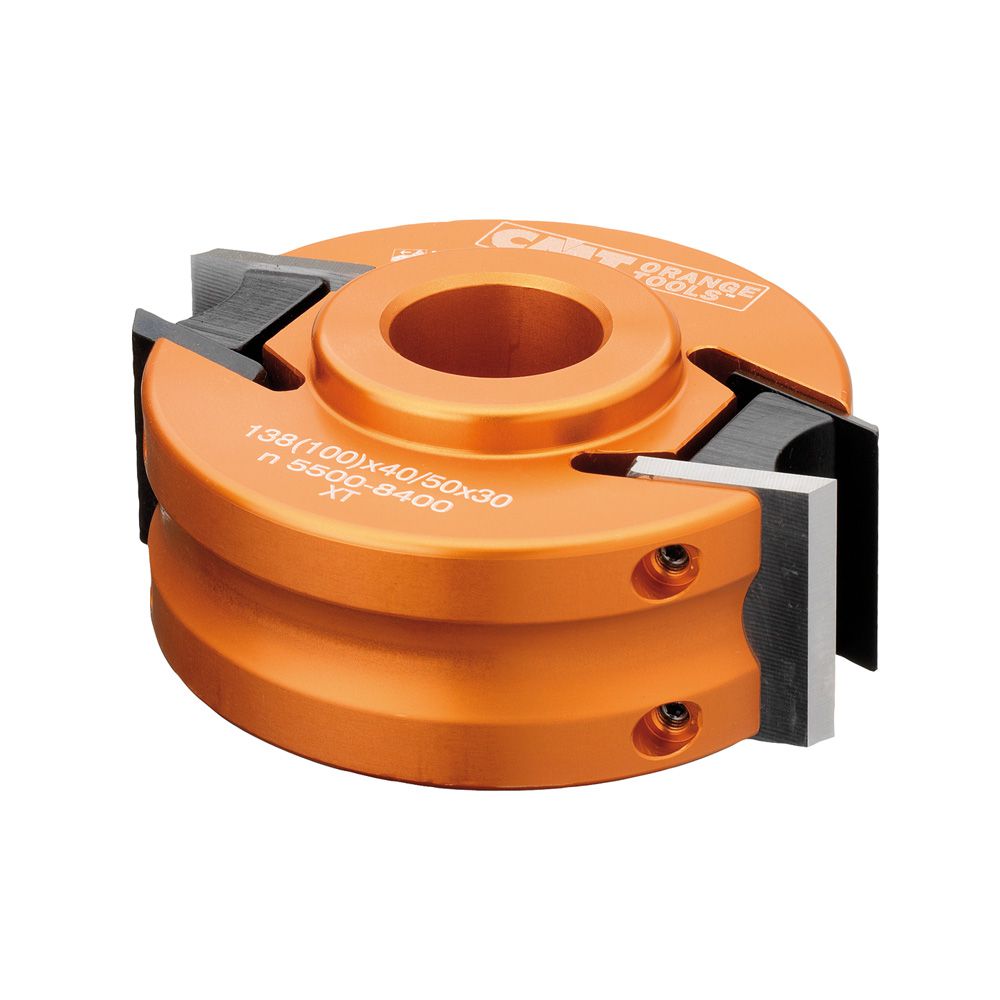

CMT Aluminium Cutter Head with Limiters 100m dia, 30mm bore - 693.100.30

CMT Aluminium Cutter Head with Limiters 100m dia, 30mm bore

ref: 693.100.30

• CMT cutter heads guarantee perfect executions of all your projects.
• DESIGNED TO COMPLY WITH THE EUROPEAN NORMATIVE EN 847-1.
• Supplied in a solid plastic box to contain up to 12 couples of knives
• Tool for manual feed
• Two cutting edges
• Anti-kickback

• All types of moulder and spindle moulder machines.

• Made from aluminium. Cutter head with limiters, highly resistant to tensile and yield stress.
• Pair of universal straight knives and limiters included.
• Tools for manual feed (MAN).

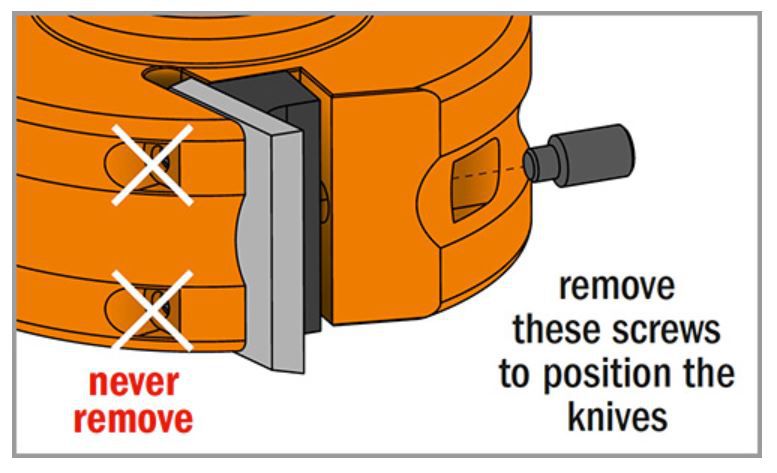

• Pins for the automatic positioning of the knives.

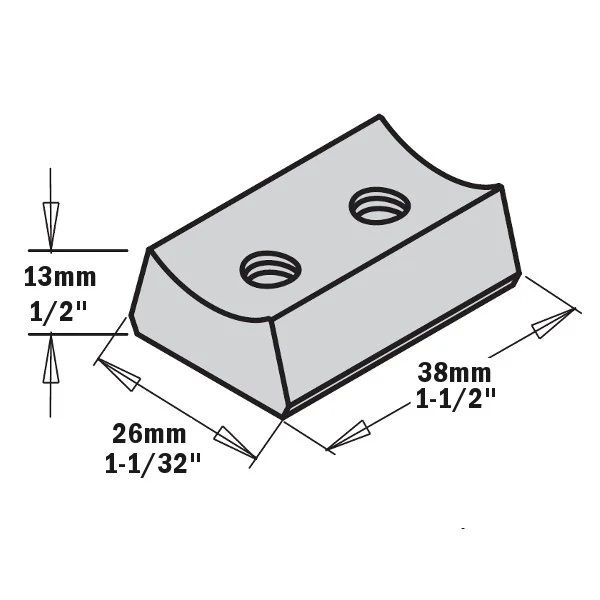

• Possibility to use knives with a height of 40mm (1-37/64") or 50mm (1-31/32") (order no. 690) and limiters (order no. 691).

• Aluminium body

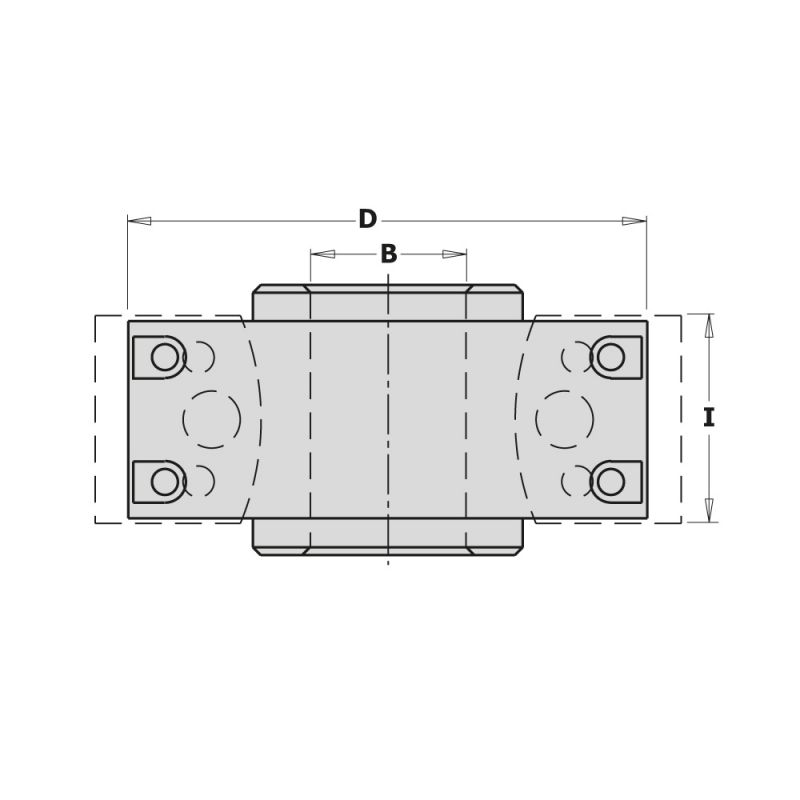

• (D) Diameter: 100mm
• (I) Cutting length: 40 - 50mm
• (B) Bore: 30mm
• RPM: 5500 - 8400
• (Z) Number of cutting edges: 2
