CMT 3 Piece Adjustable Grooving Set 140mm dia, 30mm bore - 694.001.30

X
Product Code: CMT/694.001.30
Brand: CMT Orange Tools
Low Stock - Please Call For Availability
£344.45 Inc. VAT
£287.04 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
CMT Orange Tools

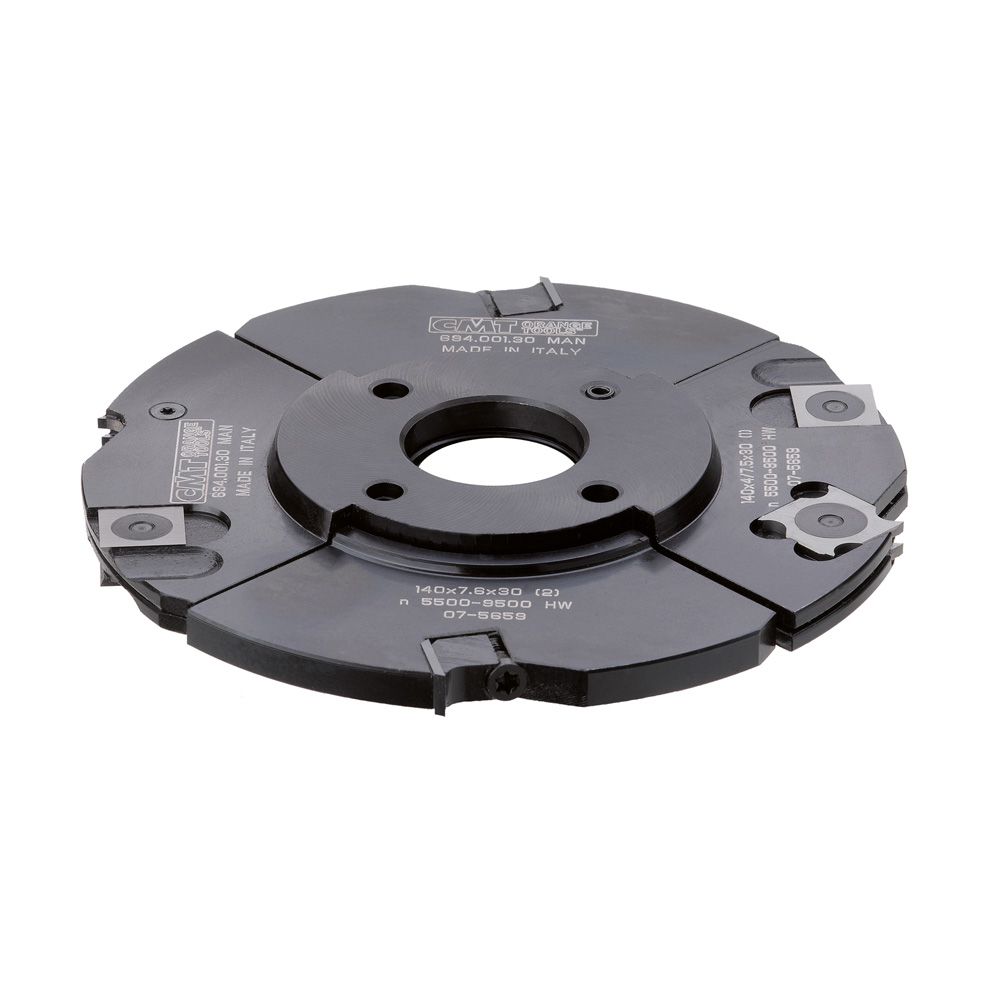

CMT 3 Piece Adjustable Grooving Set 140mm dia, 30mm bore

ref: 694.001.30



Key Features

  • 3 PIECE ADJUSTABLE GROOVING SET

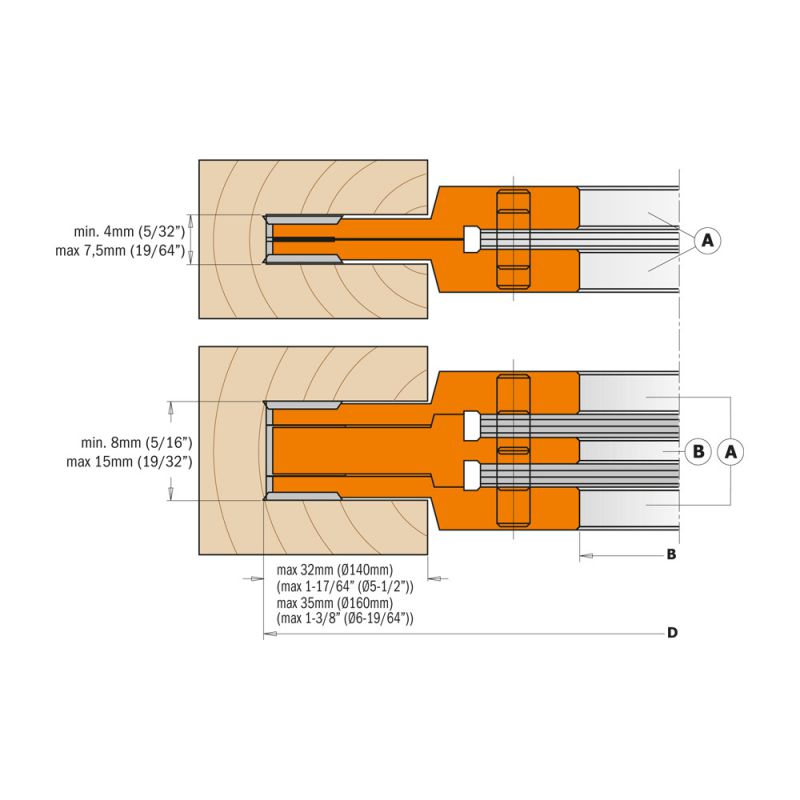

  • These cutter heads are the ideal tools to create precision slots and grooves on material 4 to 15mm deep.
  • Insert carbide
  • Tool for manual feed
  • Four cutting edges
  • Four spurs
  • Supplied in solid plastic box



Suitable for use with

  • Spindle moulder machines, double-end tenoner and shaper machines.



Applications

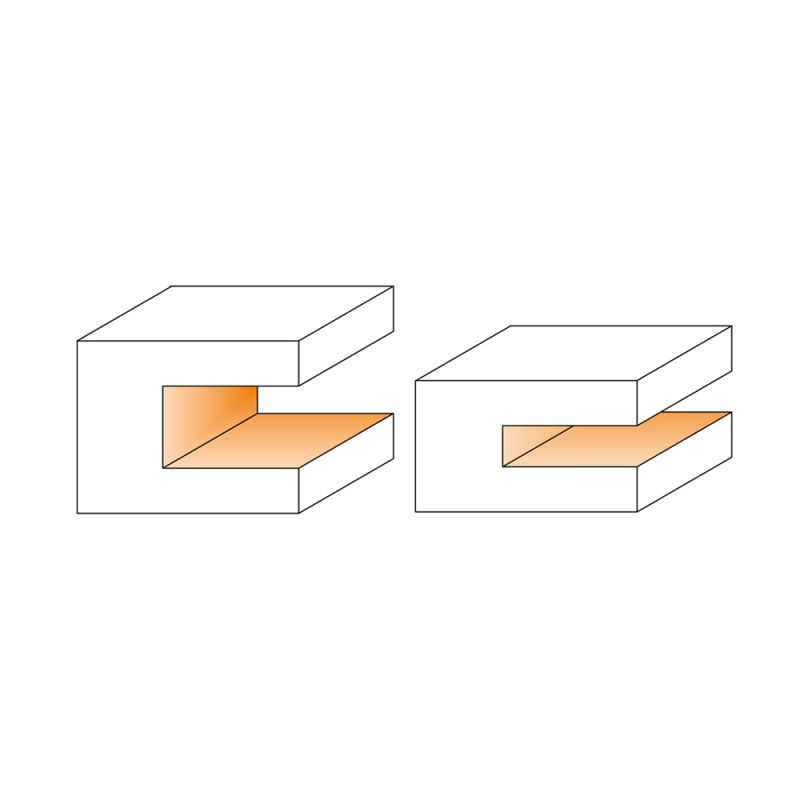

  • Perfect grooving on all materials, but ideal on solid wood, plywood and laminated panels.



Technical details

  •  Super-strength steel body.
  •  2 HWM Knives 7,65x12x1,5mm [Z2].
  •  4 HWM Knives 18x18x1,95mm [Z4].
  •  4 HWM Knives 14x14x1,2mm [V4].
  •  Tools for manual feed (MAN).
  •  Pins for automatic positioning of the knives.



Items included

  • 2 cutter heads type (A) [Z4 + V4]
  • 1 cutter head type (B) [Z2]
  • 12 spacer rings from 0,1 to 2mm.



Specification

  • (D) Diameter: 140mm
  • (B) Bore: 30mm
  • (Z) Number of cutting edges: 4
  • Spurs: 4
  • RPM: 5500 - 9500
  • Material: HW



Cutter Head Safety Sheet

Cutter Head Usage Guide
