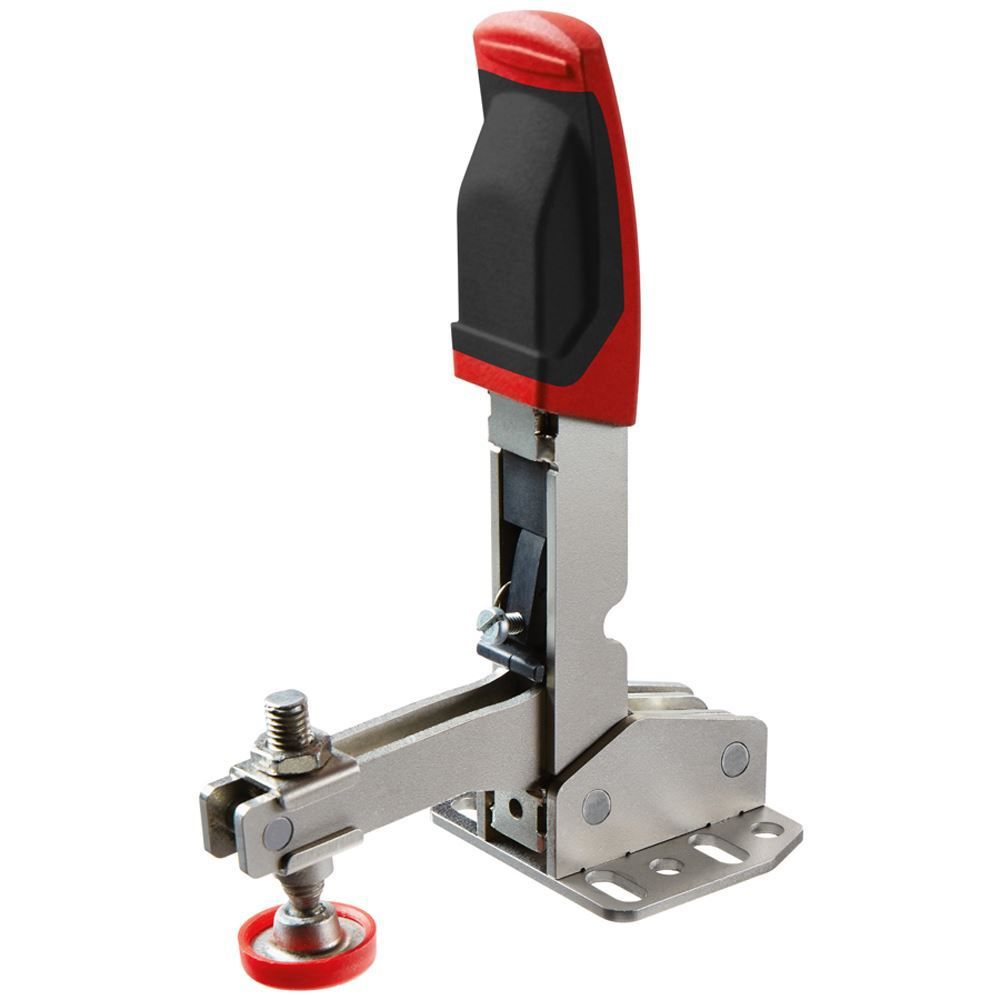

Bessey Vertical Toggle Clamp, Open Arm, Horizontal Base Plate STC-VH /40

X
Product Code: BES/STC-VH50
Brand: Bessey
In Offsite Stock - Delivery in 4 to 5 Days
£34.50 Inc. VAT
£28.75 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Bessey

Bessey Vertical Toggle Clamp, Open Arm, Horizontal Base Plate STC-VH /40 - STC-VH50



Strengths and benefits

  • Ready to go – the first time and for quick set-up during workpiece changes: BESSEY STC toggle clamps adapt to workpieces of varying thickness – without manual setting of the spindle and, with practically the same clamping force: due to an automatic clamping width range
  • Uncompromisingly versatile: One size of the BESSEY toggle clamp replaces multiple competitor sizes simultaneously: due to an extremely large clamping range, thanks to the patented mechanism
  • Powerful and gentle: Even sensitive workpieces, e.g. with veneered or varnished surfaces, can be gently clamped: due to moving pressure plate with removable protective cap due to clamping force regulation via adjustment screw in the joint



Key Features

  • Lever is in vertical clamping position
  • Automatic, seamless adjustment of the clamping height (up to 40mm/19/16) with almost constant clamping force without manual changing of the pressing screw position
  • Adjustable clamping force up to 2,500N (550lbs.), based on the adjusting screw in the joint
  • Sturdy, tempered sheet steel for longer service life
  • Base plate hole pattern suitable for millimetres and inches
  • High quality, oil resistant two component plastic handle.



Specification

  • Weight (kg): 0.43
  • A - Opening (mm): 40
  • Clamping Force kN (up to): 2,500 N
  • Automatic adjustment: 35
  • Clamping pressure (appr. N): 2,500
