Bessey V U-Shaped High-Performance Clamp SGU 300/140

X
Product Code: BES/SGU30-14-10
Brand: Bessey
Low Stock - Please Call For Availability
£153.52 Inc. VAT
£127.93 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Bessey

Bessey V U-Shaped High-Performance Clamp SGU 300/140



Strengths and benefits

  • Extremely sturdy, The U-shaped fixed arm is produced and tempered from a single piece, thus very torsion-resistant. This guarantees you maximum tensile strength and sturdiness.
  • Special tilting pressure plate, The heat-resistant pressure plate (SGU/STBU) is replaceable and can be tilted up to 35° so it can even clamp on angled or sloping surfaces. It has an extremely long service-life due to the oil-soaked sintered steel insert's excellent sliding and emergency running properties.
  • Forged sliding arm, The sliding arm is made from forged tempered steel, and can withstand extremely large loads. You can be sure of that.
  • Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability.
  • Sturdy tommy bar, The sturdy tommy bar has special rounded hand-friendly ends, as well as a hexagonal bolt. This allows powerful, controlled clamping.



Key Features

  • Clamping force up to 12,000 N at tightening torque of 40 Nm
  • Step-over clamping, specially suited for T-profiles and double T-profiles
  • Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35 degrees

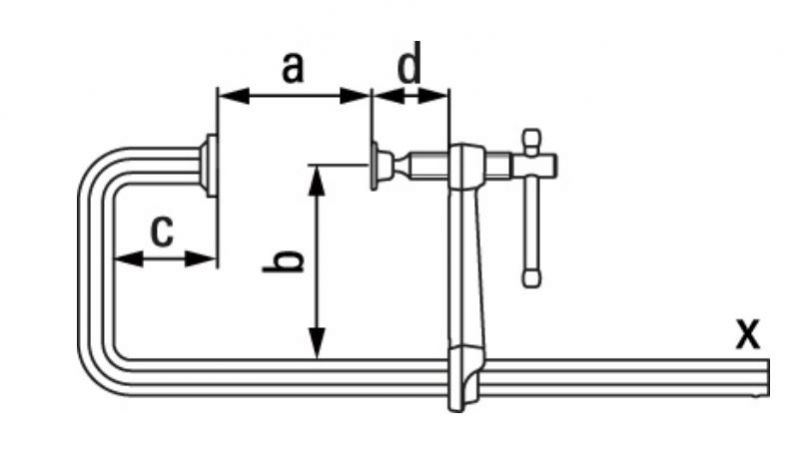

Specification

  • Weight (kg): 3.75
  • B - Throat depth (mm): 140
  • X - Rail (mm): 30 x 15
  • A - Opening (mm): 300
  • Clamping Force kN (up to): 12,000 N
  • Clamping depth C (mm): 100
  • Clamping Depth D (mm): 130
