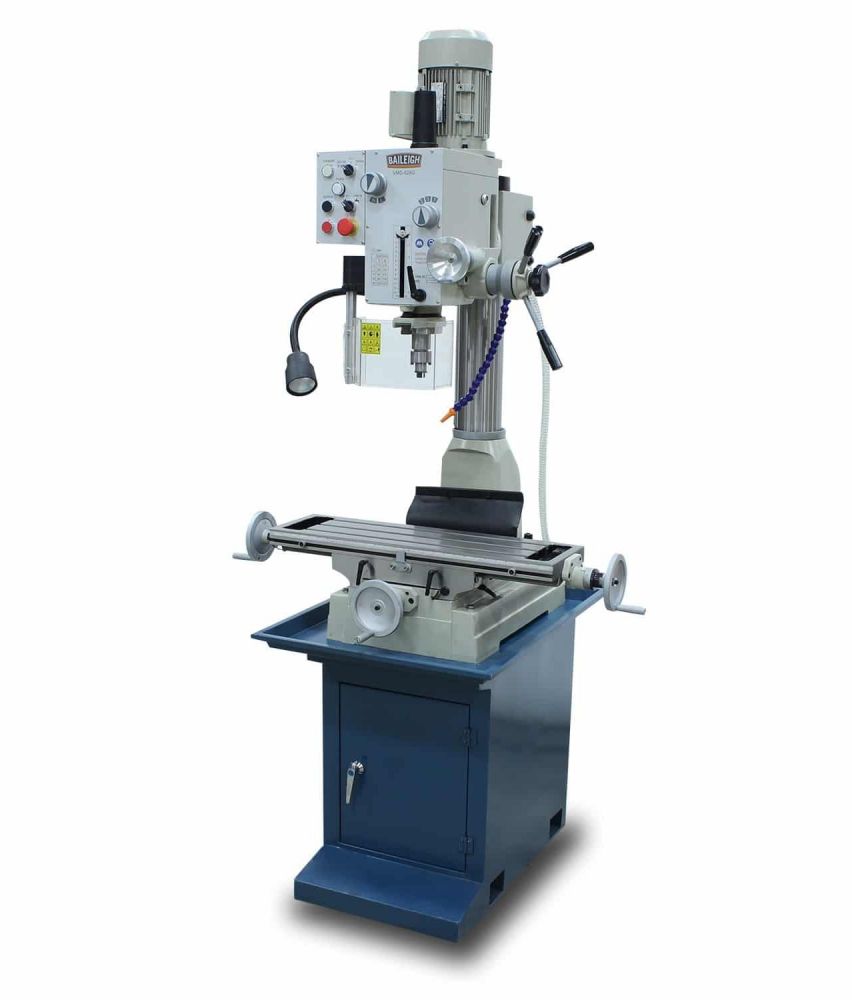

Baileigh VMD-828G Vertical Mill Drill 240v

Baileigh VMD-828G Vertical Mill Drill 240v

Don't have the space for both a gear-driven drill press and a milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life.

• 2 hp motor runs on 240-volt power and will work almost any where.
• 1.5" maximum drilling capacity.
• Includes 29" x 8" milling-style table which expands the machine's possible uses.

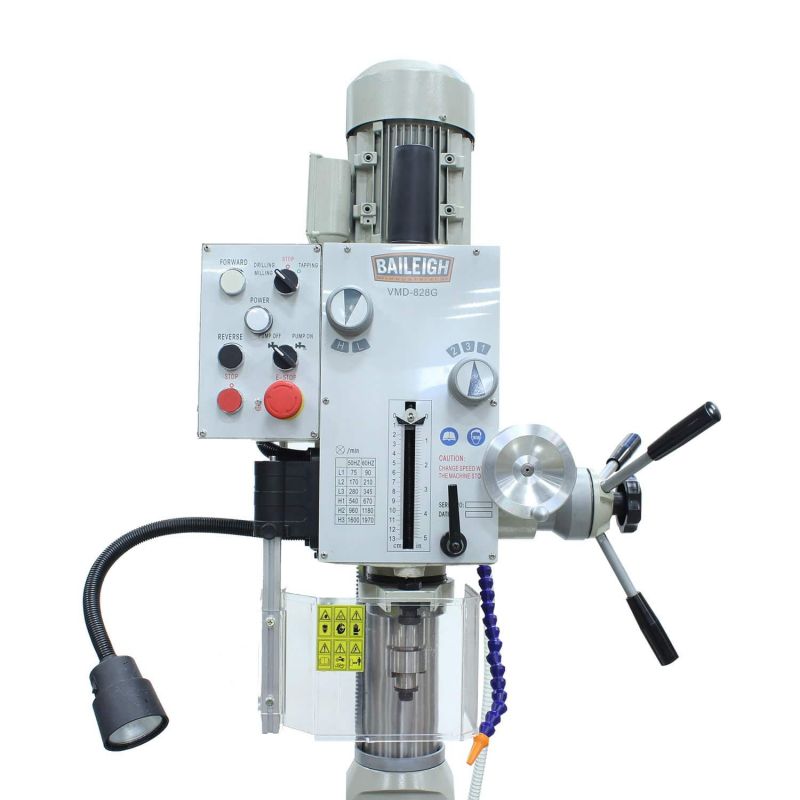

• Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
• Rigid base and very wide cast column adds to machine's strength and eliminates flexing when milling or drilling at full capacity.
• Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.
• Backed by a 2-year warranty.
• Includes 29” x 8” milling-style table which expands the machine’s possible uses.

• Spindle Speeds: 90, 210, 345, 670, 1180, 1970 RPM
• Table Size: 28.75″ x 8.25″
• Motor: 2 hp
• X Axis Travel: 19-1/2″
• Y Axis Travel: 9″
• Spindle Nose to Base: 16.14″
• Spindle Stroke: 4-3/4″
• Spindle Taper: R8
• T Slots: .550″
• Coolant Pump: 1/8 hp
• Power: 240V
• Shipping Weight: 815lbs
• Drill Capacity: 1.5″
• Spindle Travel: 4.75″
• Shipping Dimensions (Inches): 60x44x51
