Baileigh PL-1236E-DRO Economical Precision Metalworking Lathe 240v
Product Code: BAI/PL-1236E-DRO
Brand: Baileigh
Low Stock - Contact Us For Availability
£9,349.20 Inc. VAT
£7,791.00 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities

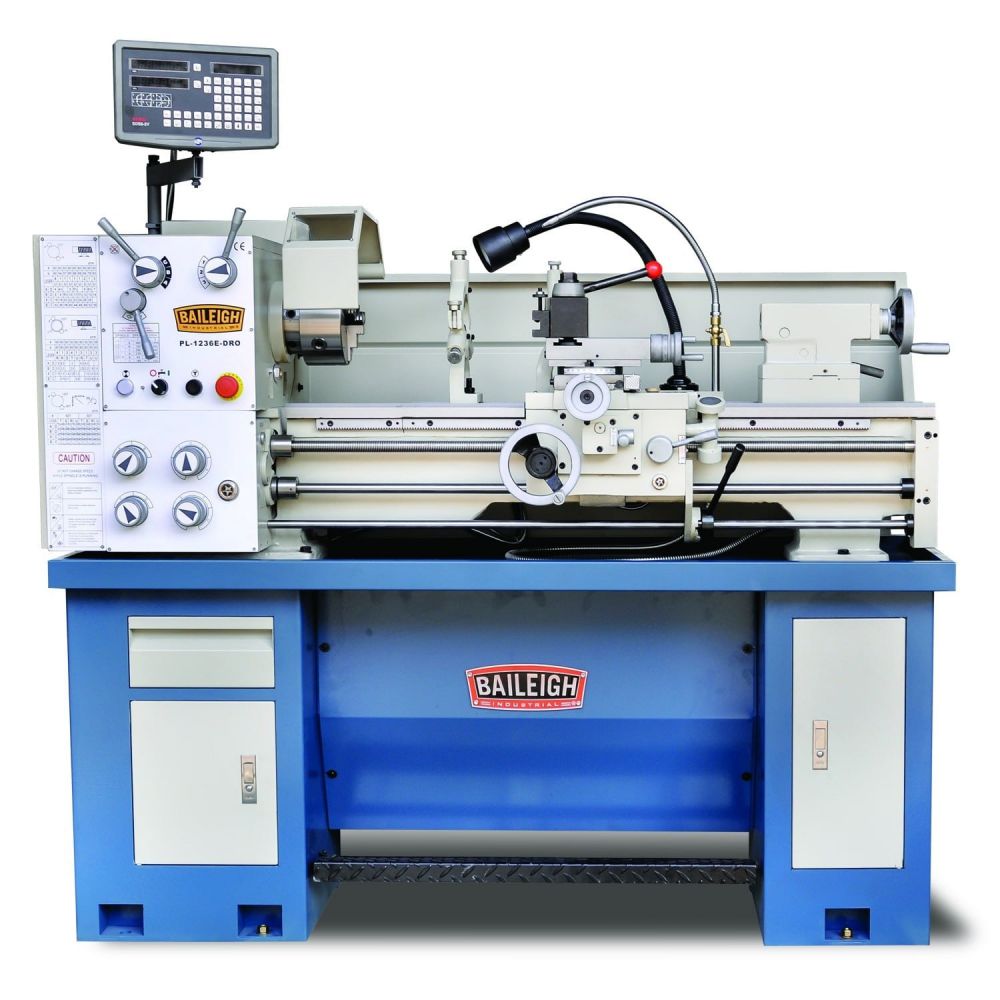

Baileigh PL-1236E-DRO Economical Precision Metalworking Lathe 240v
Key Features
With the same working base as the versatile PL-1236E lathe, the PL-1236E-DRO take the platform one step further by adding an industrial grade digital readout system for improved accuracy and efficiency. But the PL-1236E-DRO is still a great metal lathe for anyone that is looking an economical lathe that is high in quality and easy to use.
- Powered by 220v single phase the Baileigh Industrial PL-1236E-DRO allows the operator to choose what voltage will suit their needs the best.
- Because of its versatile voltage options as well as the integrated digital readout, the PL-1236E-DRO is the perfect choice for small fabricators, schools, or garages.

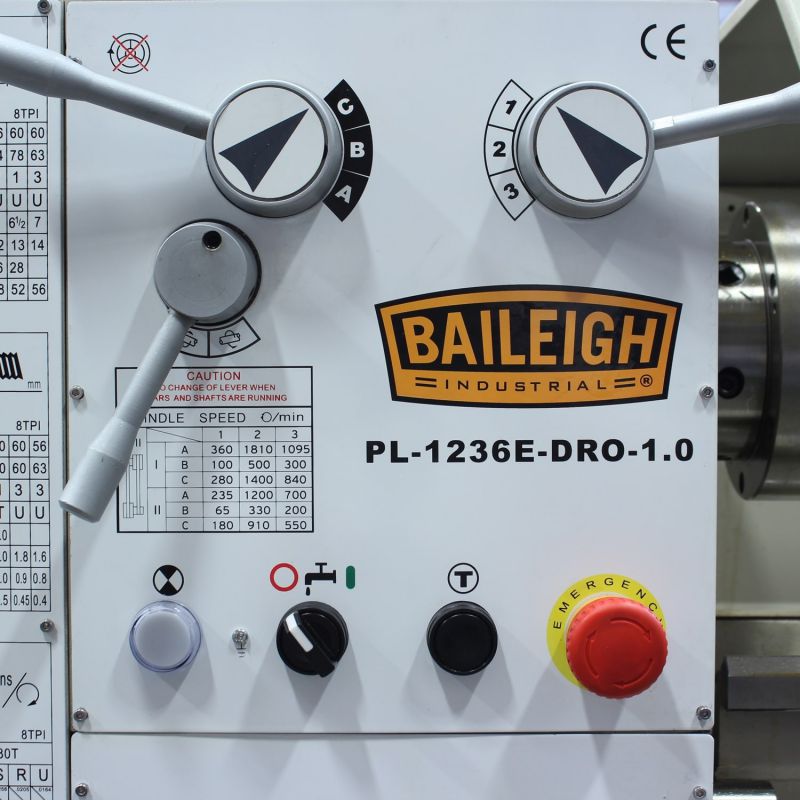

- The PL-1236E-DRO has an easy to use gear system that allows for taping, turning, and polishing with a range of 9 speeds from 70 to 1400 RPM.
- To ensure that all cuts are precise, all ways are ground and hardened to ensure long life.
- They also have adjustable gibs to make sure they slide as free as possible with no binding.

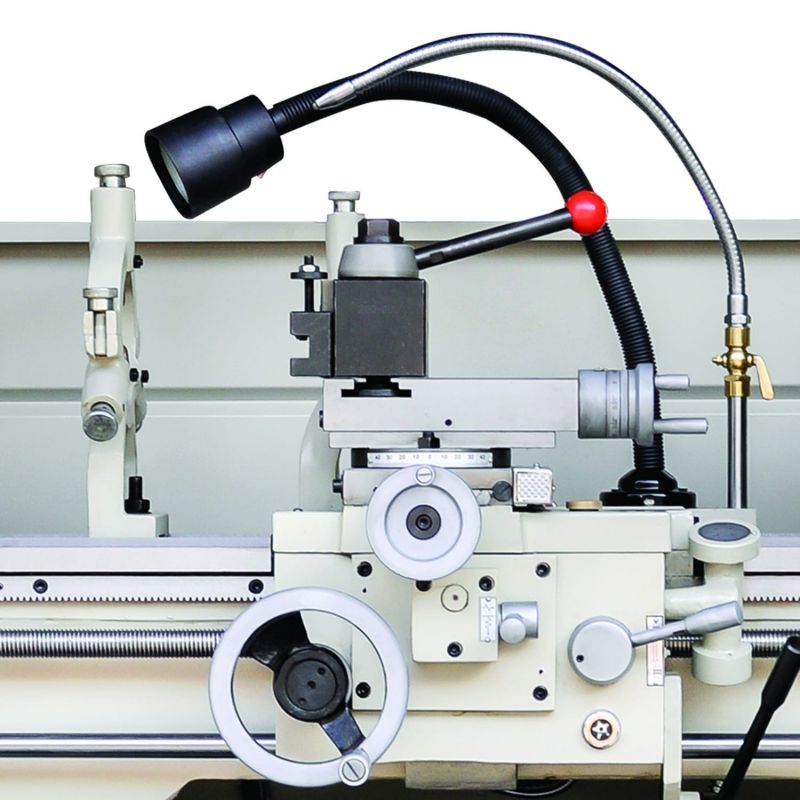

- The PL-1236E-DRO lathe is packed with features that make this a winning lathe, these features include: digital read out, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, and halogen work light.
- Distance between centres 914mm
- 12" (305mm) swing over bed

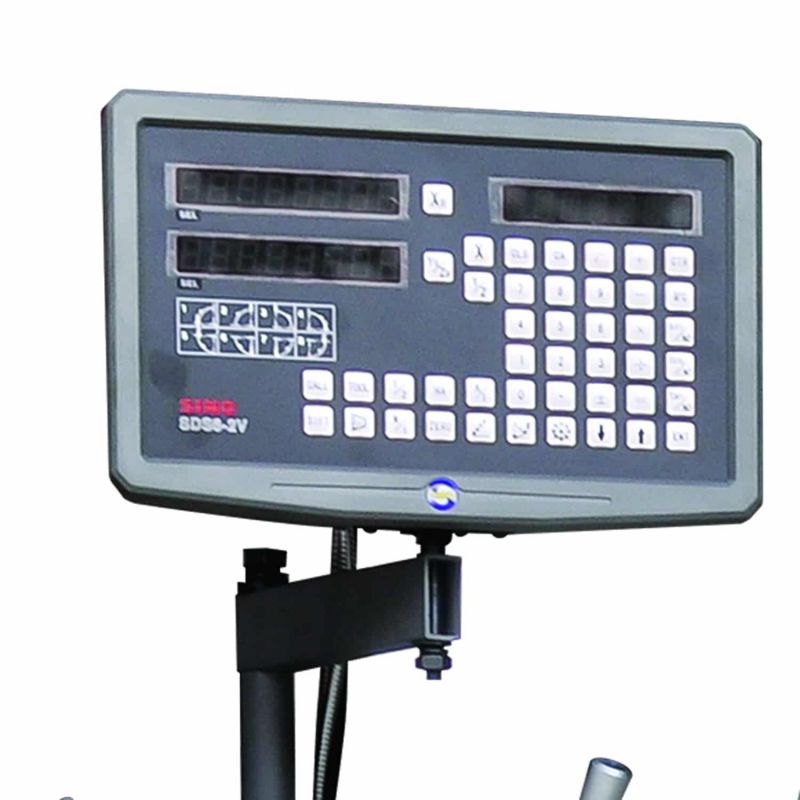

- Digital read-out

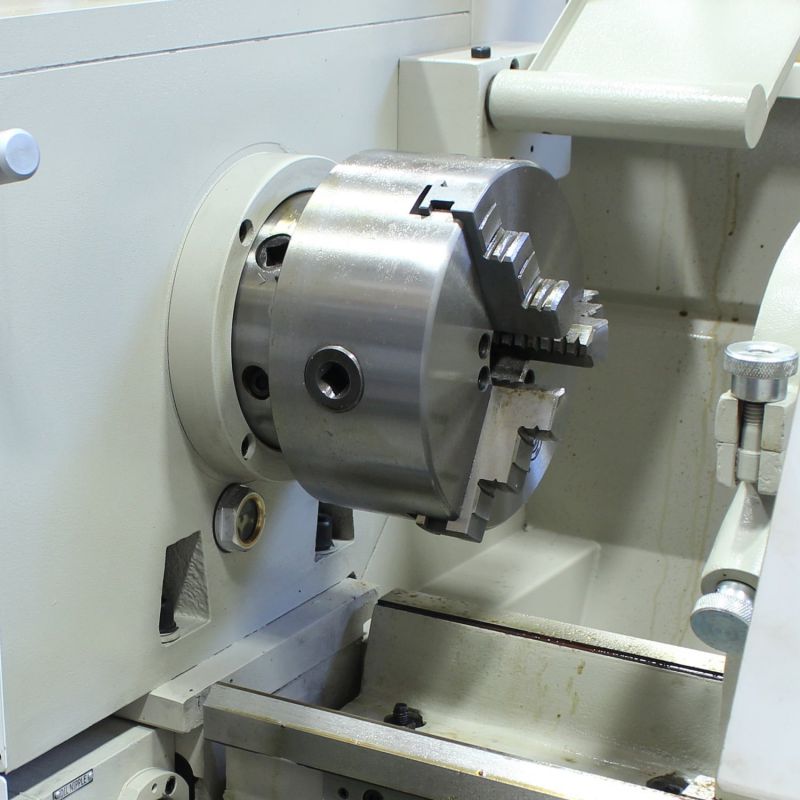

- 6" three and 8" four jaw chucks
Technical details
- Item Number PL-1236E-DRO
- Sleeve Travel 101 mm
- Spindle Bore 38 mm
- Spindle Bore Taper Morse #6
- Sleeve Taper Morse #4
- Sleeve Diameter 32 mm
- Metric Thread Range 0.4 7 mm
- Spindle Nose D1 – 102 mm
- Travel Of Cross Slide 135 mm
- Travel Of Top Slide 83 mm
- Wire Grooves 181 mm
- Spindle Speed 10 (70 1400 rpm)
- Swing In Gap 431 mm
- Swing Over Bed 305 mm
- Swing Over Cross Slide 194 mm

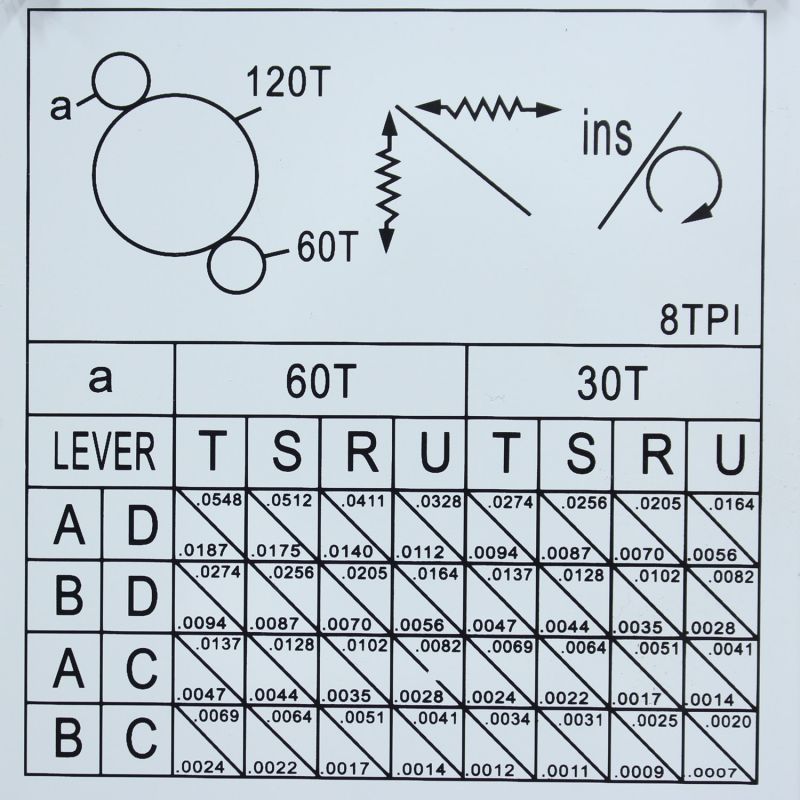

- Longitudinal Feed Range .05 1.4 mm/rev
- Lead Screw Thread Pitch 9 T.P.I.
- Length Of Gap 152 mm
- Max. Tool Selection 16 mm x 16 mm
- Cross Feed Range .178 .475 mm/rev
- Distance Between Centers 914 mm
- Power 220 volt single phase
- Shipping Weight 560 kgs.
- Shipping Dimensions (Inches) 1701 x 787 x 1524 mm
