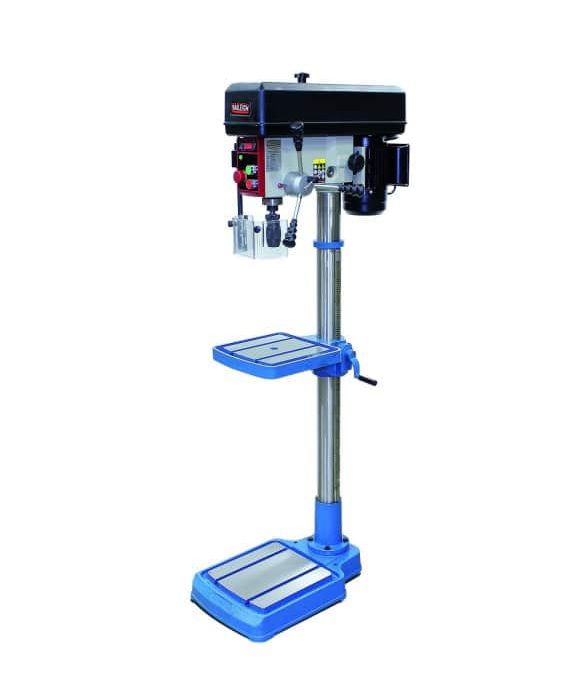

Baileigh DP-1000E Metalworking Drill Press 240v

Baileigh DP-1000E Metalworking Drill Press 240v

This economical belt driven drill press runs smoothly even at full capacity - the DP-1000E is a 15-1/2" drill press with an MT2 Taper that lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.

• Belt driven head drills a maximum capacity of 1 steel.
• 5 speeds in the range from 250 to 2900 rpm to suit your application.
• 3-1/8" steel column eliminates flexing even when drilling at full capacity.
• Rigid cast iron base and table add strength to the drill's structure.

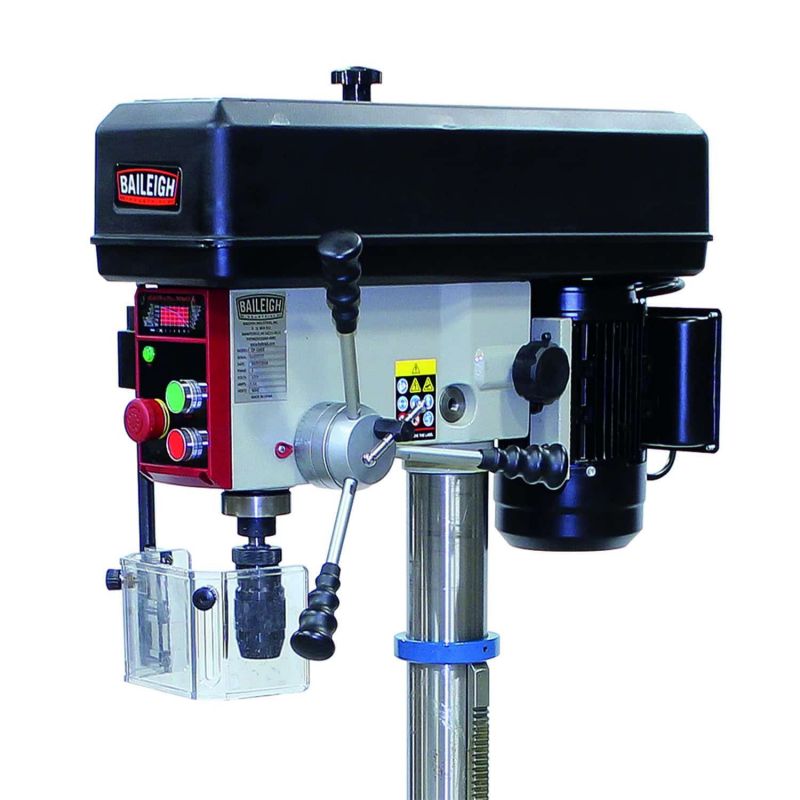

• Includes a safety shield around the drill head to protect you.
• Baileigh backs this drill press machine with a 2-year parts warranty and lifetime technical support by phone
• Belt-driven drill press
• MT2 Taper
• 25mm steel maximum capacity
• 5 speeds: 250 to 2900 rpm

• Item Number DP-1000E
• Country of Manufacture Taiwan
• Swing 15-1/2″
• Diameter of Column 3-1/8″
• Spindle Travel 5.3″
• Base Size 23″ x 16″
• T-Slot Width 1/2″
• Table Size 12-1/2″ x 12-1/2″
• Speeds 5
• Quill Diameter 2″
• Spindle Nose to Table 5-1/2″ Min. To 35-1/2″ Max.
• Spindle Nose to Base 47-1/2″
• Spindle Taper MT 3
• Table Angle Adj 360°
• Main Motor 1/2 hp
• Rpm 250, 700, 1150, 1900, & 2900
• Drill Capacity Steel 1″
• Power 220V Single Phase
• Shipping Weight 290 lbs.
• Special Notes B-16 1-16mm Keyless Chuck, MT2 to B16 Arbor, Drift Key
• Certification CE
• Column Diameter 3.62″
• Shipping Dimensions (Inches) 48″ x 44″ x 82″
