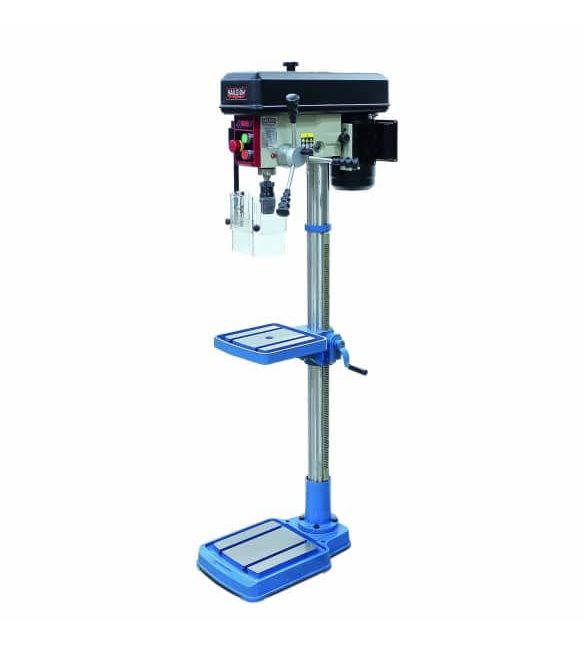

Baileigh DP-0625E Metalworking Drill Press 240v

Baileigh DP-0625E Metalworking Drill Press 240v

This economical belt driven drill press runs smoothly even at full capacity - this 14" drill press lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.

• .5 hp motor requires 220 volt power and will work at any shop or site.
• Belt driven head drills a maximum capacity of 5/8 steel.
• 5 speeds in the range from 250 to 2900 rpm to suit your application.
• 2-7/8" steel column eliminates flexing even when drilling at full capacity.
• Rigid cast iron base and table add strength to the drill's structure.

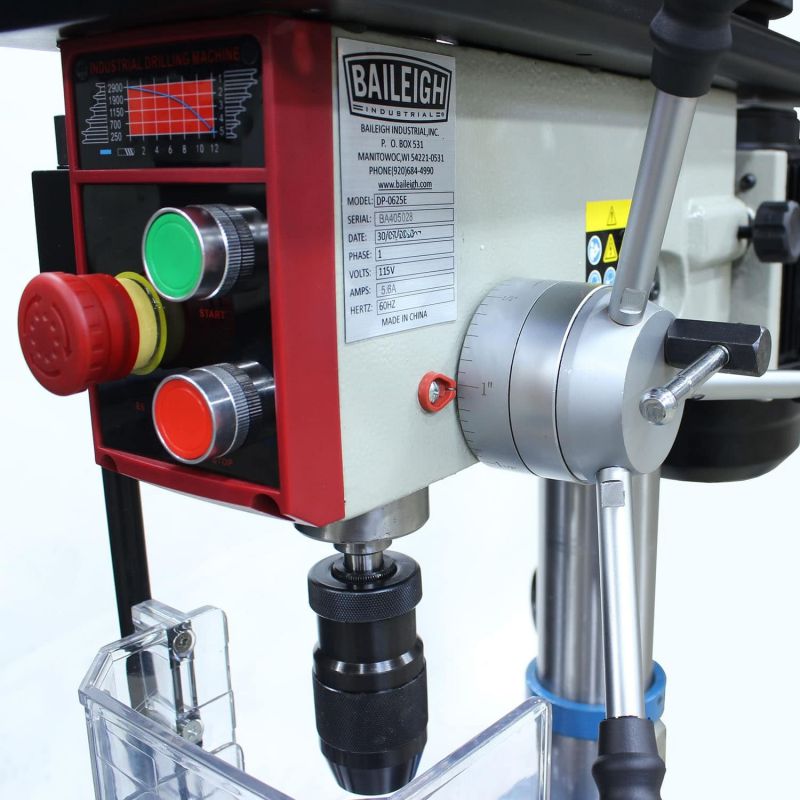

• Includes a safety shield around the drill head to protect you.
• Baileigh backs this drill press machine with a 2-year parts warranty and lifetime technical support by phone
• Belt-driven drill press
• 16mm steel maximum capacity
• 5 speeds: 250 to 2900 rpm

• Item Number DP-0625E
• Country of Manufacture Taiwan
• Spindle Speeds 5
• Swing 14″
• Diameter of Column 2-7/8″
• Base Size 25-3/4″ x 16-1/2″

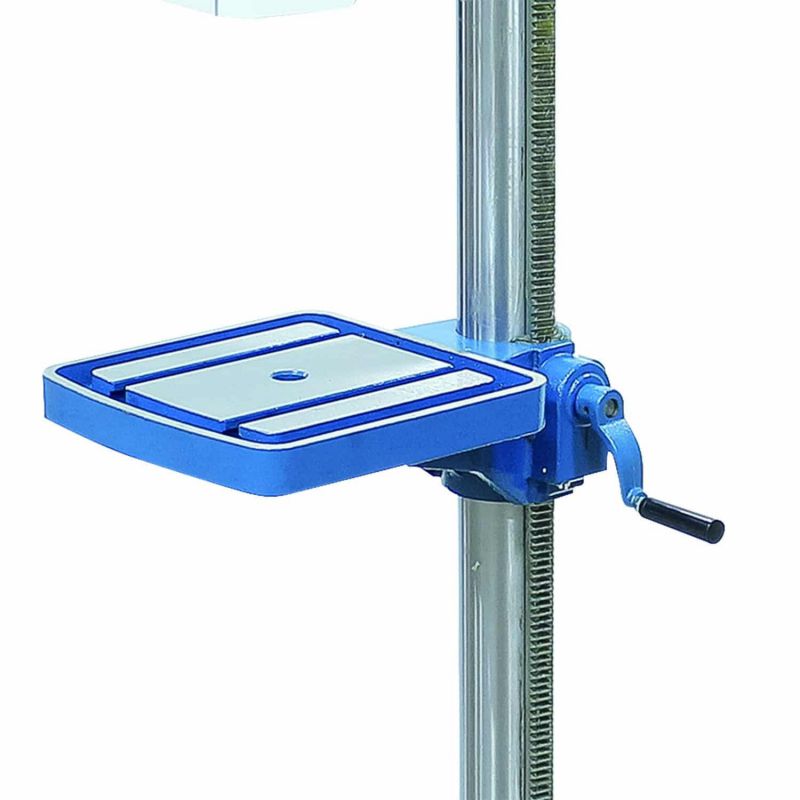

• Table Size 11″ x 11″
• Quill Diameter 1-3/4″
• Spindle Nose to Table 6″ Min to 36″ Max
• Spindle Nose to Base 48″
• Spindle Taper MT 3
• Table Angle Adj 360°
• Main Motor 1/2 hp
• Rpm 250, 700, 1150, 1900, & 2900
• Drill Capacity Steel 5/8″
• Power 220V Single Phase
• Shipping Weight 230 lbs.
• Special Notes Includes B-16 1-16mm Keyless Chuck
• Column Diameter 3.62″
• Shipping Dimensions (Inches) 60″ x 26″ x 17″
