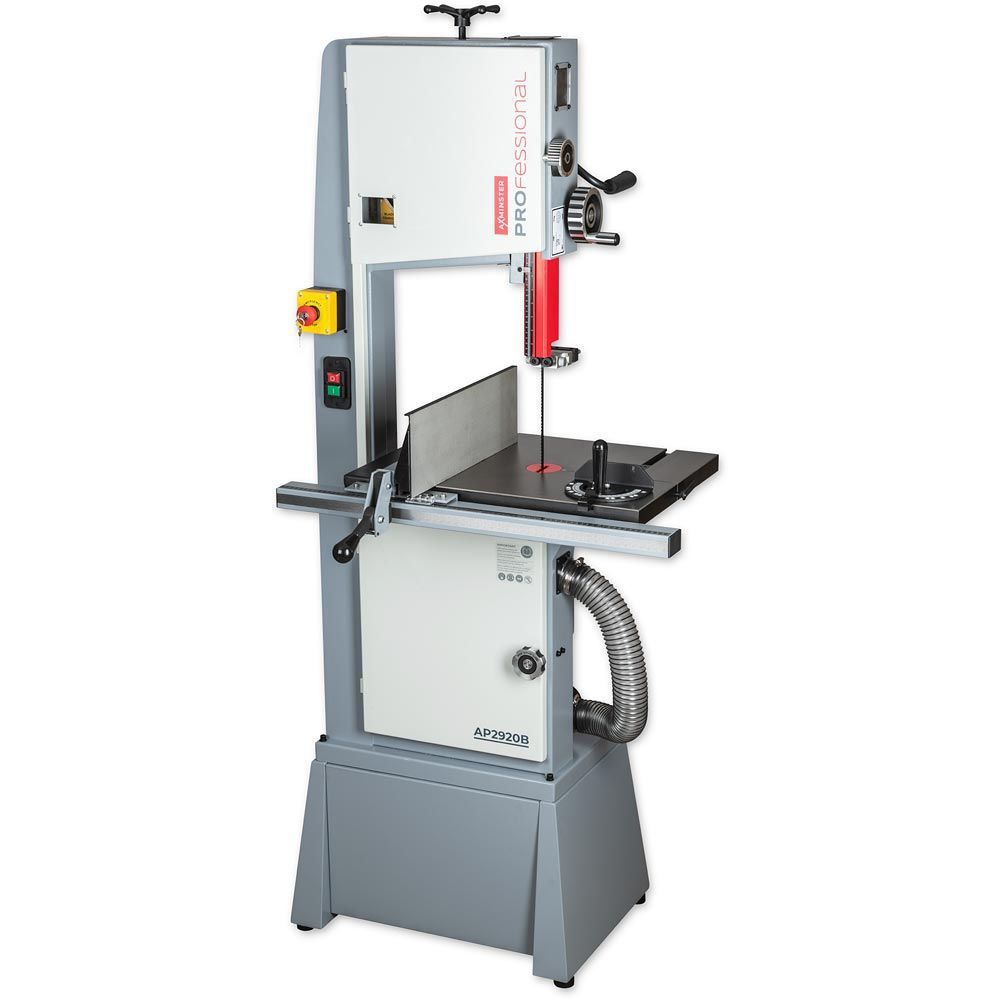

Axminster Professional AP2920B Bandsaw 230V

Axminster Professional AP2920B Bandsaw 230V

• Professional by name, professional by nature. The AP2920B floor standing bandsaw represents great value, whether in a busy workshop or for a woodworker looking for a larger capacity machine. The 1.7kW induction motor easily copes with the 300mm max cutting height. The 355mm diameter cast iron wheels with hard rubber tyres, add to the smooth cutting action.

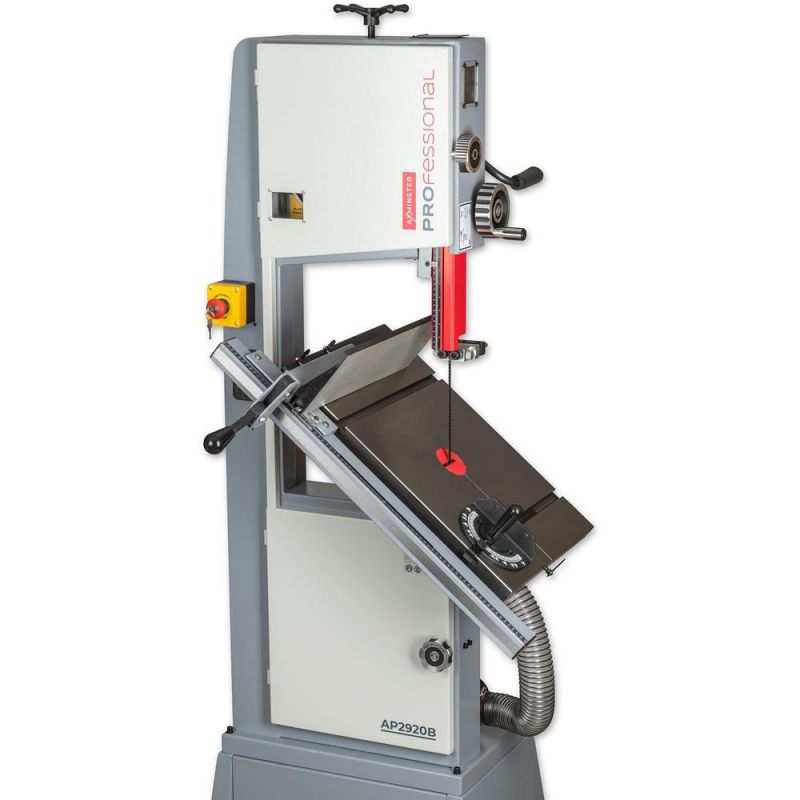

• The smooth ground, cast iron table tilts up to 45° and features mitre fence slots on both sides of the blade. The upper blade guide has rack and pinion rise and fall for ease of adjustment.
• The rip fence locks positively and has a Hi/Lo auxiliary fence. ‘Hi’ for full support when deep ripping or ‘Lo’ when cutting thin section timber.
• The quick tension release makes blade changing straightforward. Fully adjustable blade tensioning and tracking ensure precise cutting action.

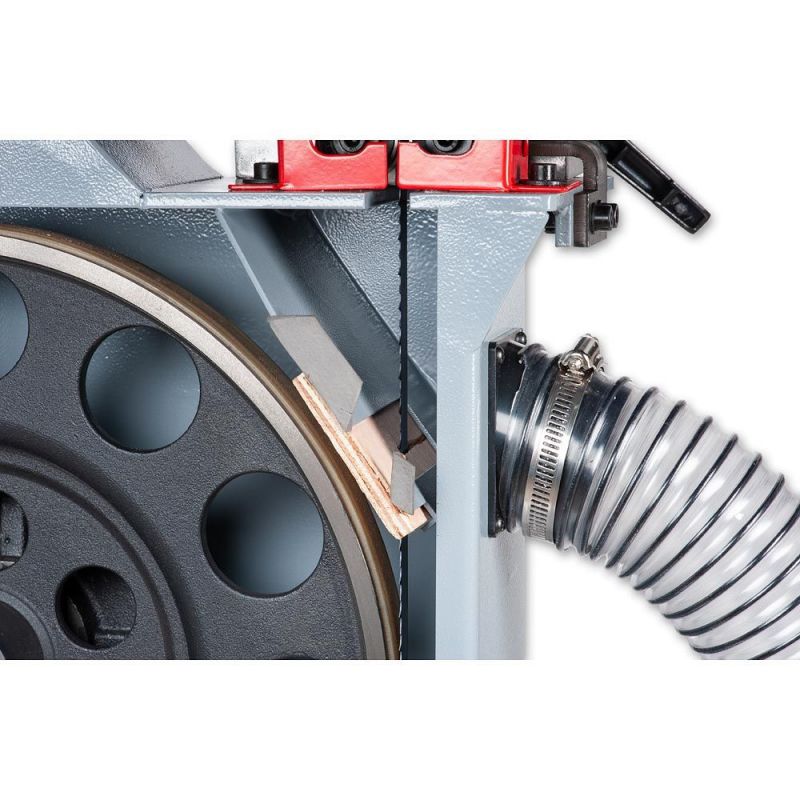

• Dual dust extraction is efficient via a 63mm outlet under the table linked to a 100mm outlet by the bottom wheel.
• Supplied with a premium mitre fence with useful pre-set angle stops. Also supplied with blade - 2,920mm x 12mm x 6tpi.
• Large capacity up to 300mm max cutting height
• Tension release lever for straightforward blade changes
• Efficient, two point dust extraction via dual outlet

• Large cast iron table: The 440mm x 540mm table gives maximum support to large workpieces that will glide smoothly on the cast iron.
• Tubular steel frame & press steel doors: The AP2920B is built on a tubular steel frame for robust strength and reduced vibration.

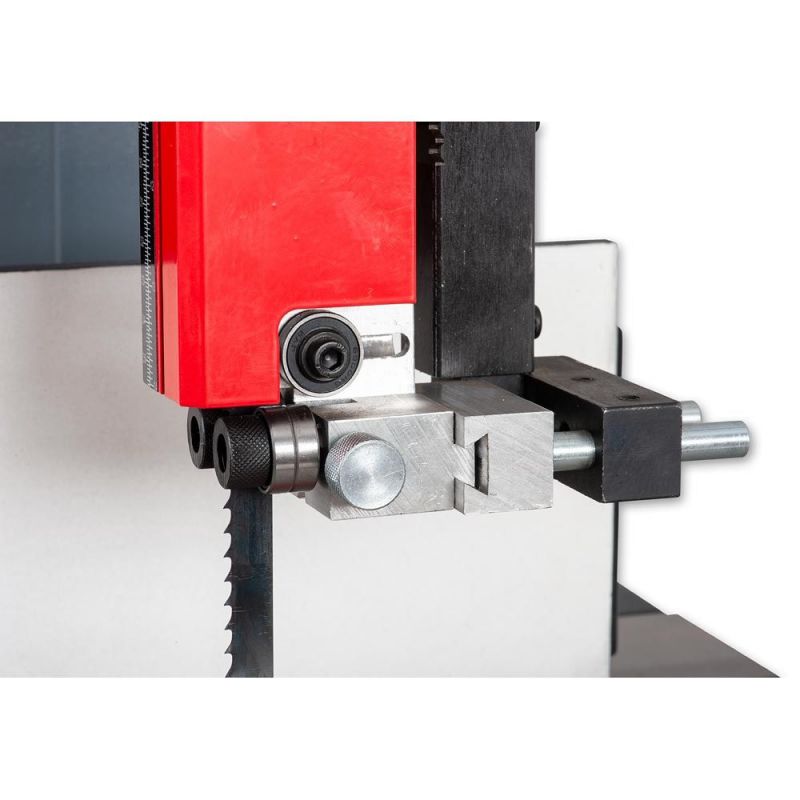

• Independent adjustable blade guide system: Set up quickly and easily, so you can focus on the task at hand.

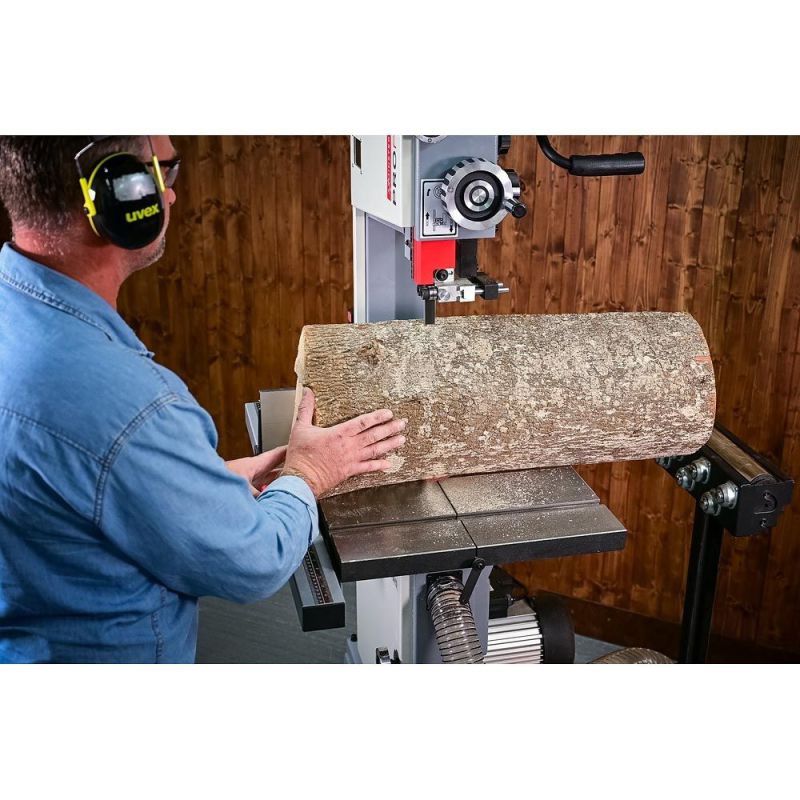

• 300mm depth of cut: A generous depth of cut makes this bandsaw versatile enough for a variety of tasks, from cabinet making to woodturning preparation.

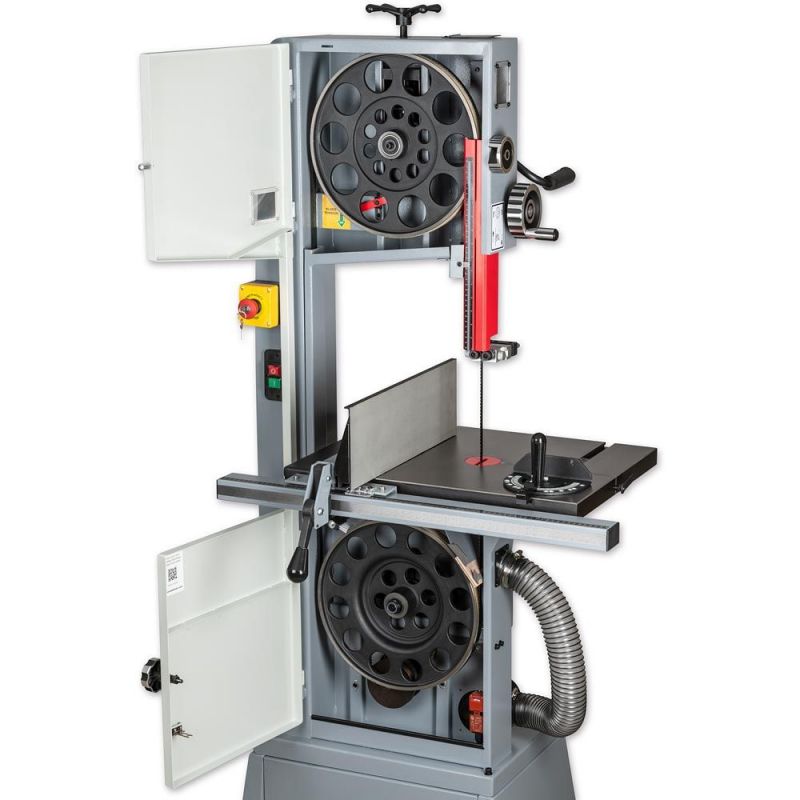

• Cast iron blade wheels: 355mm diameter cast iron wheels reduce vibration and maintain blade speed for a smooth and consistent cut.

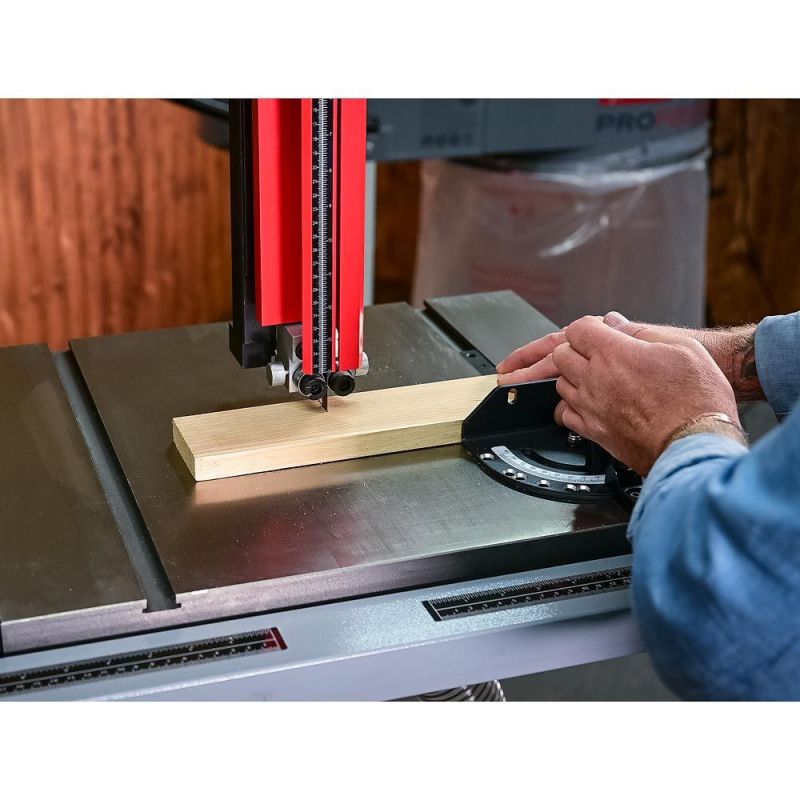

• Dual slots for mitre gauge: Two mitre slots either side of the blade are perfect for jig use. The AP2920B is supplied with a premium mitre fence with useful pre-set angle stops.

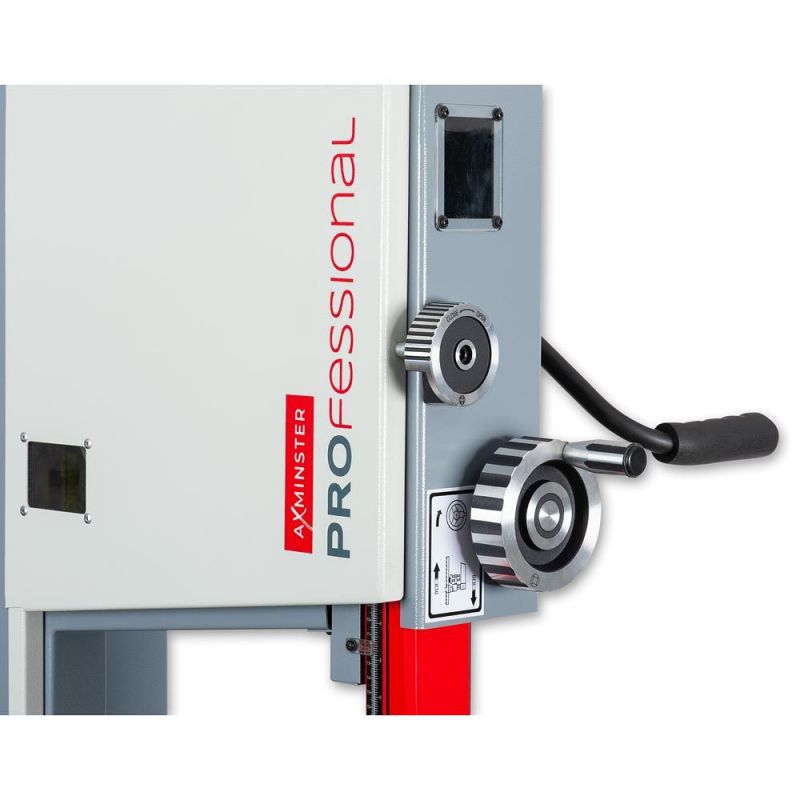

• Rack & pinion upper guide adjustment: Easily adjust the upper blade guide with the rack and pinion rise and fall. There is also a tension release lever for straightforward blade changes.

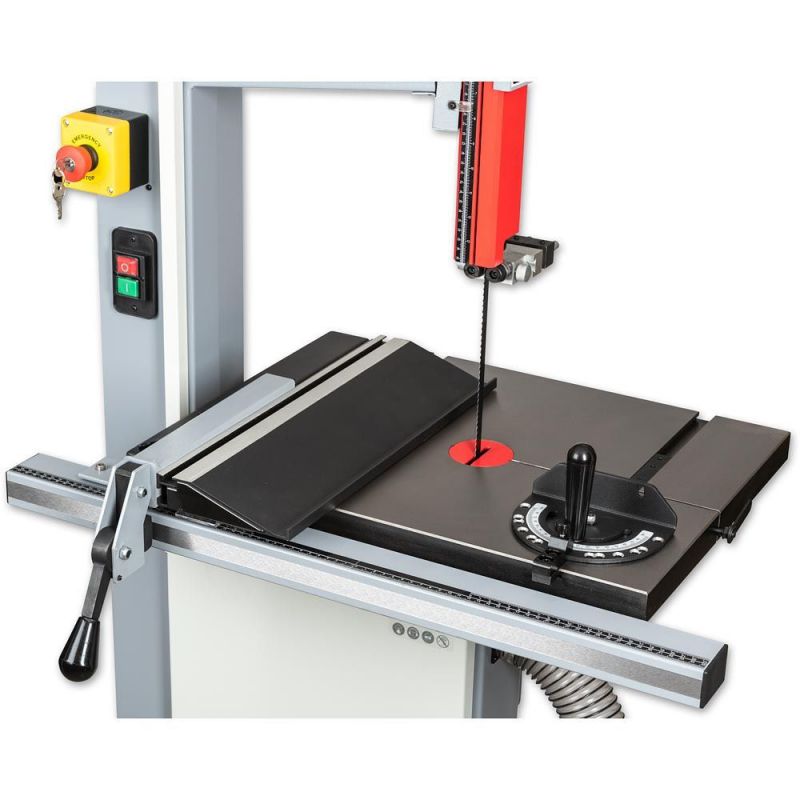

• Hi/lo auxiliary rip fence: The dual height rip fence locks positively; use “hi” for full support on heavy duty ripping and “lo” for safe close to the blade work.
• High quality handwheels: The bandsaw’s hand wheels are well made in die cast aluminium for smooth adjustment.

• Bandsaw Blade Length: 2,920 mm (115")
• Bandsaw Wheel Diameter: 355 mm
• Blade Speed: 800 m/min
• Blade Width MinMax: 3 mm to 19 mm
• Dust Extraction Outlet: 100 mm & 63 mm
• Max Cutting Height: 300 mm
• Max Width of Cut: 345 mm
• Min Extraction Airflow Required: 1,200 m³/hr
• Model: AP2920B
• Nett Weight: 122 kg
• Overall L x W x H: 760 mm x 875 mm x 1,910 mm
• Plug Fitted: UK 3 pin plug
• Power: 1.7 kW
• Rating: Trade/Professional
• Sound Power Level LwA [Uncertainty K]: 90 dB(A) [3.0 dB]
• Sound Pressure Level LpA [Uncertainty K]: 72.5 dB(A) [3.0 dB]
• Table Height: 1,015 mm
• Table Height on Stand: N/A
• Table Size: 440 mm x 540 mm
• Table Tilt: 0° - 45°
• Voltage: 230 V
