Arunda 91A703 120B Maxi Dovetail System

X
Product Code: AR/91A703
Brand: Arunda
Stock Expected
Delivery typically within 2-3 weeks
£2,892.86 Inc. VAT
£2,410.71 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Arunda

Arunda 91A703 120B Maxi Dovetail System

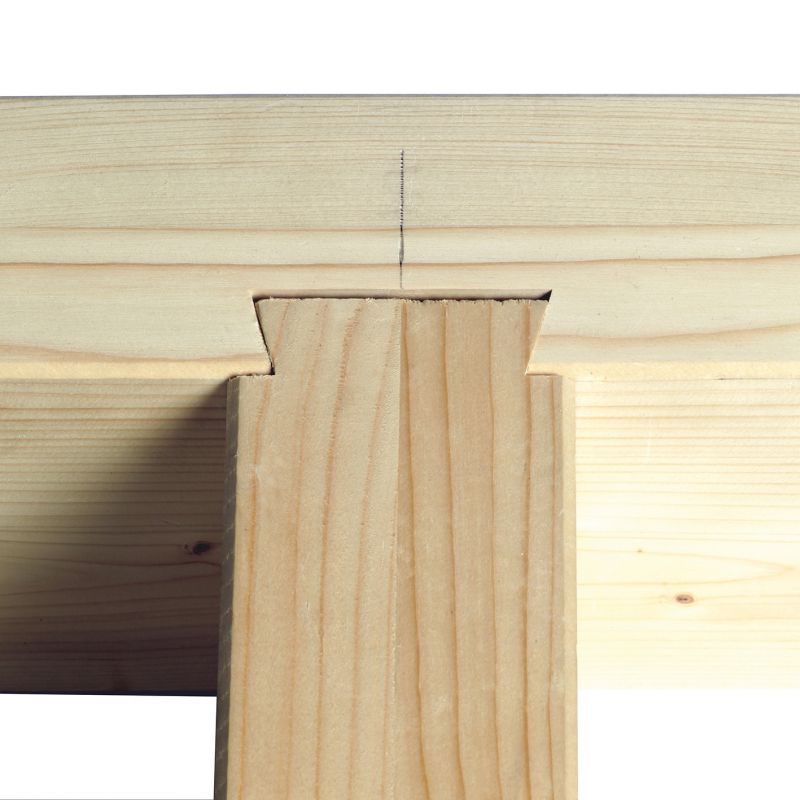

Arunda is a system for manually making dovetailed wood-to-wood joints to assemble timber frame structures.

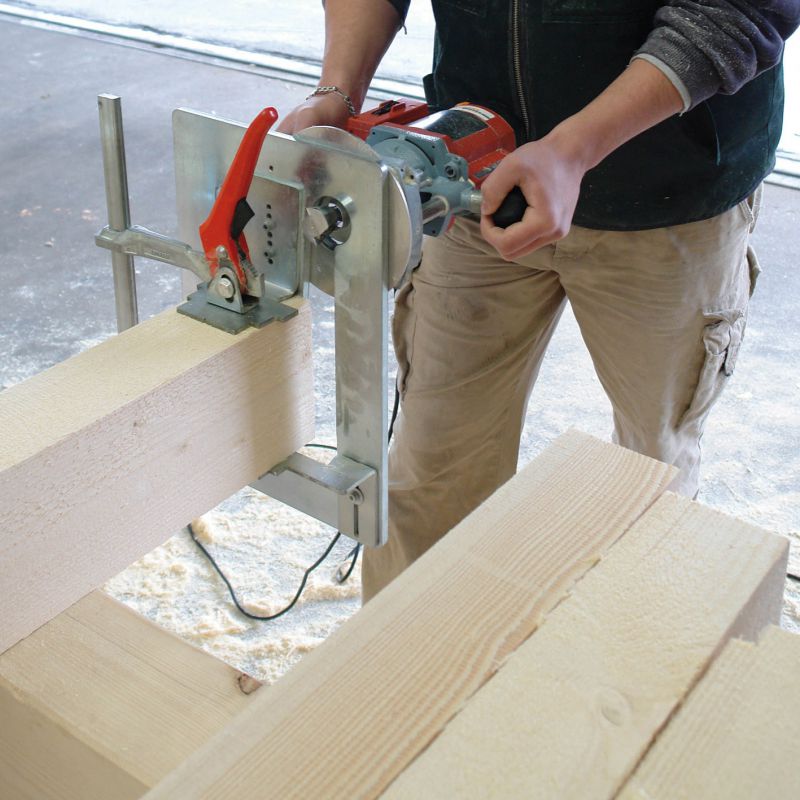

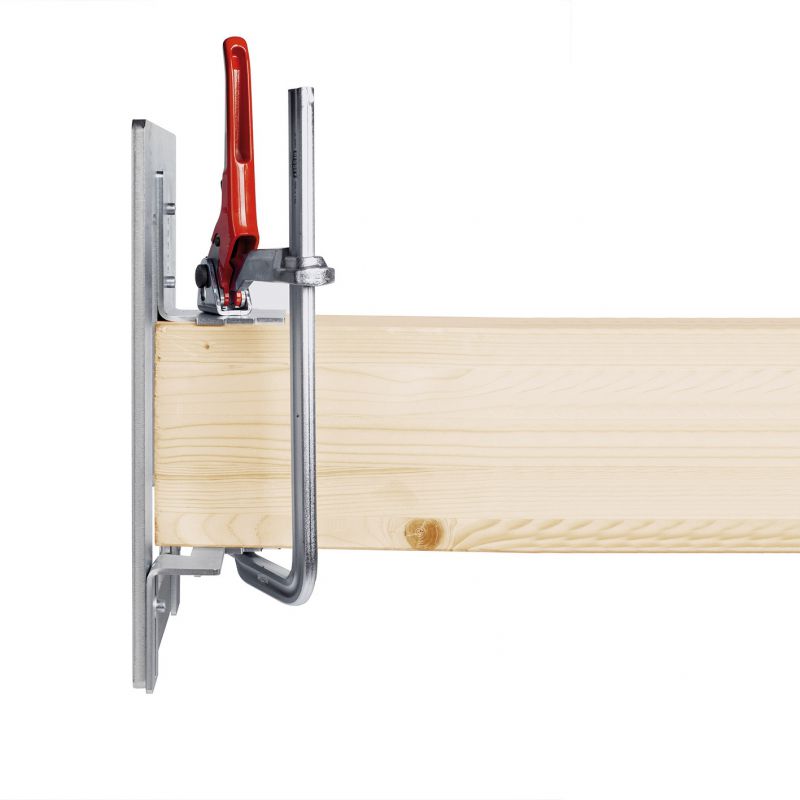

All you need is a pair of Arunda jigs (one for the tenon and the other for the mortise), a powerful Mafell router LO 65 Ec equipped with the special Arunda cutter and some accessories.

There are several models available but only one size will be selected to fit your most commonly used timber widths. Keep in mind: The bigger the joint, the greater and better its resistance!



Strengths and benefits

  • Push-down dovetail assembly is very fast and easy. No need to pull apart the load-bearing beams to insert tenons.
  • Double-cone self-tightening joints.
  • Identical router bit setting to cut both mortise and tenon.

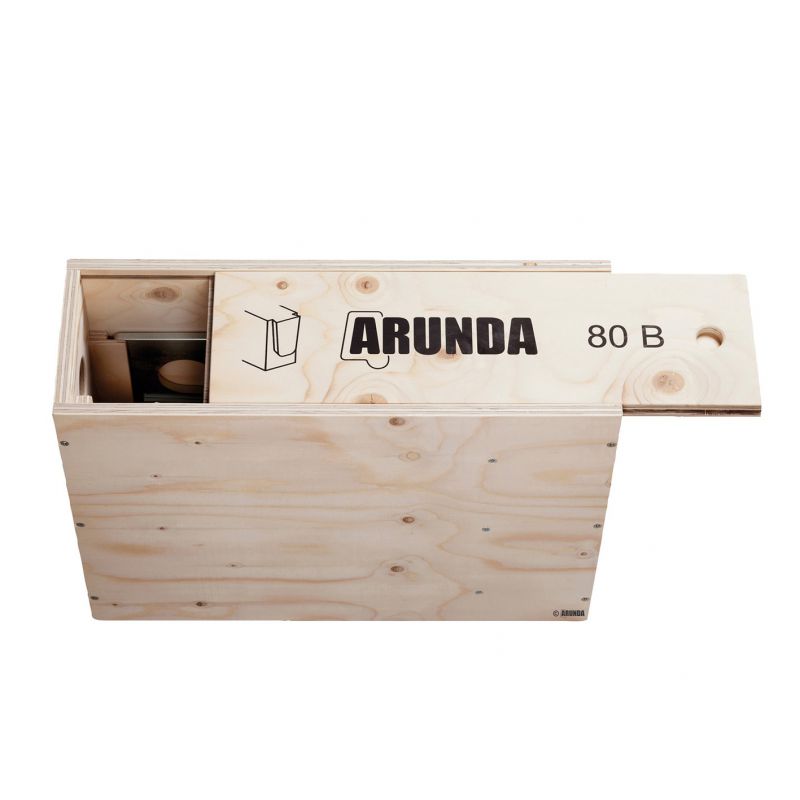

  • The Arunda system is delivered in a practical wooden box.
  • Speed: 8 to 18 mortise/tenon joints per hour.
  • Class “B” jigs with fixed square fences (90°)



Technical details

  • Tenon on timber width: 120 – 200 mm
  • Timber height: 90 – 380 mm
  • Timber section: 120 x 90 – 200 x 380 mm



Applications

  • Dovetailed joints on floor joists or rafter (roof system).
  • Perpendicular or angled joints on floor joists or rafter (roof system).



Items included

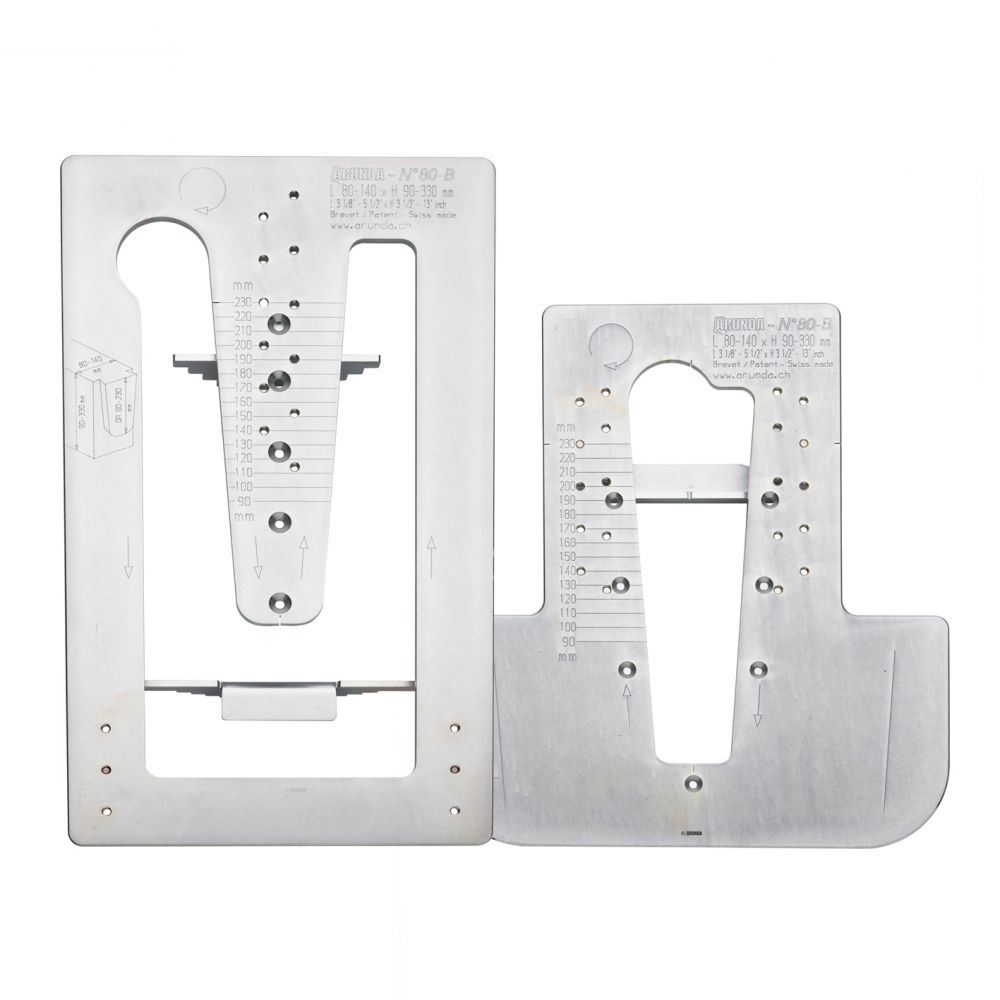

  • 1 pair of jigs
  • 1 burr milling cutter
  • 1 guide ring
  • 1 positioning gauge
  • 2 pairs of blades
  • 1 wooden box



Arunda Dovetail System Catalogue

Arunda Dovetail System 120B Maxi Technical Details

Arunda Dovetail System Operating Instructions
